Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

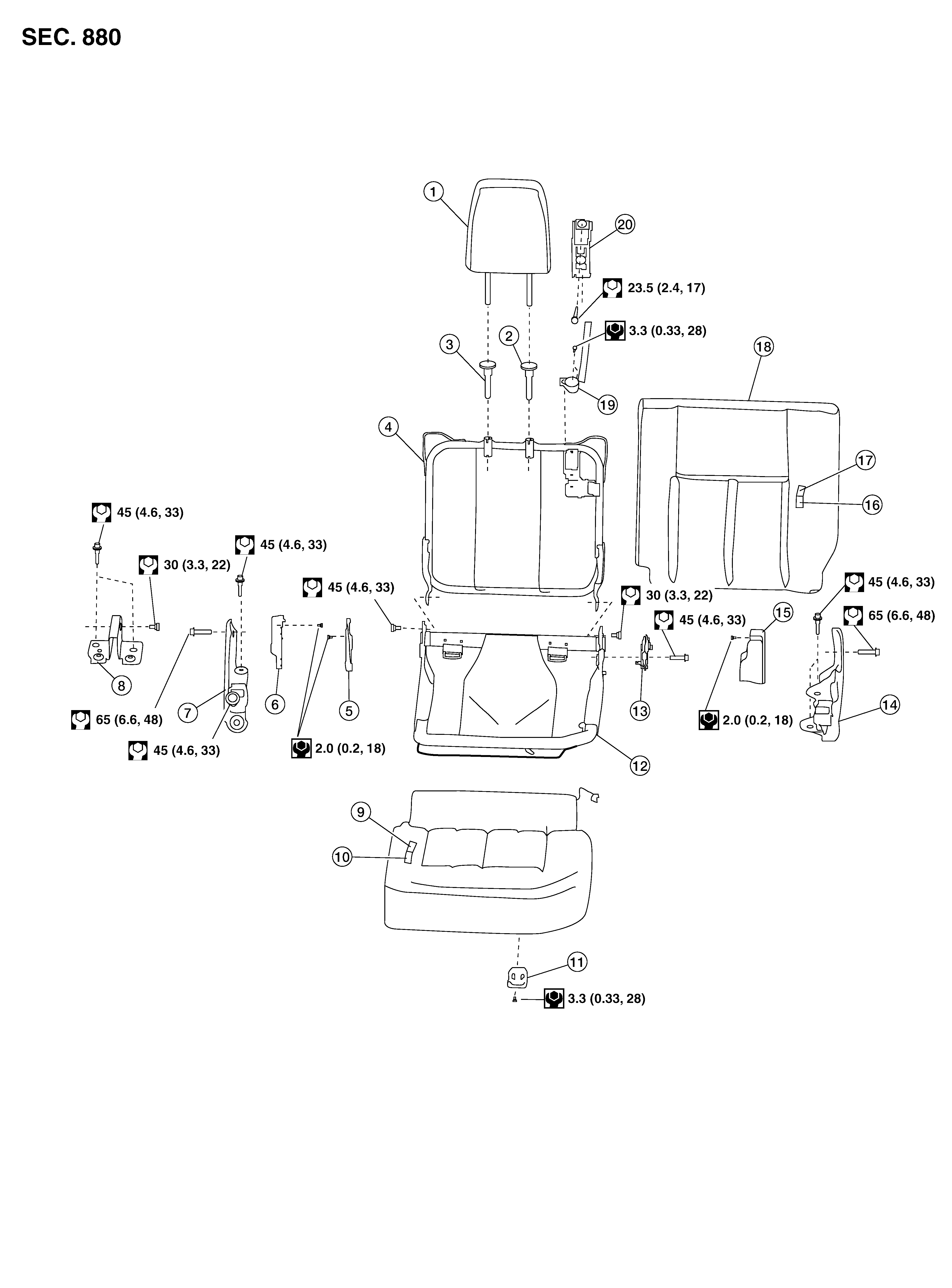

Fig 1: Rear Seat Replacement Components With Torque Specifications (Left Side)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Headrest holder (locked)	3.	Headrest holder (free)
4.	Seatback frame	5.	Inner pivot finisher (RH)	6.	Outer pivot finisher (RH)
7.	Seat support bracket (RH)	8.	Rear seat bracket	9.	Seat cushion trim
10.	Seat cushion pad	11.	Grocery bag hook	12.	Seat cushion frame
13.	Seat cushion release assembly	14.	Seat support bracket (LH)	15.	Pivot finisher (LH)
16.	Seatback pad	17.	Seatback trim	18.	Seatback assembly
19.	Seatback latch	20.	Seatback striker

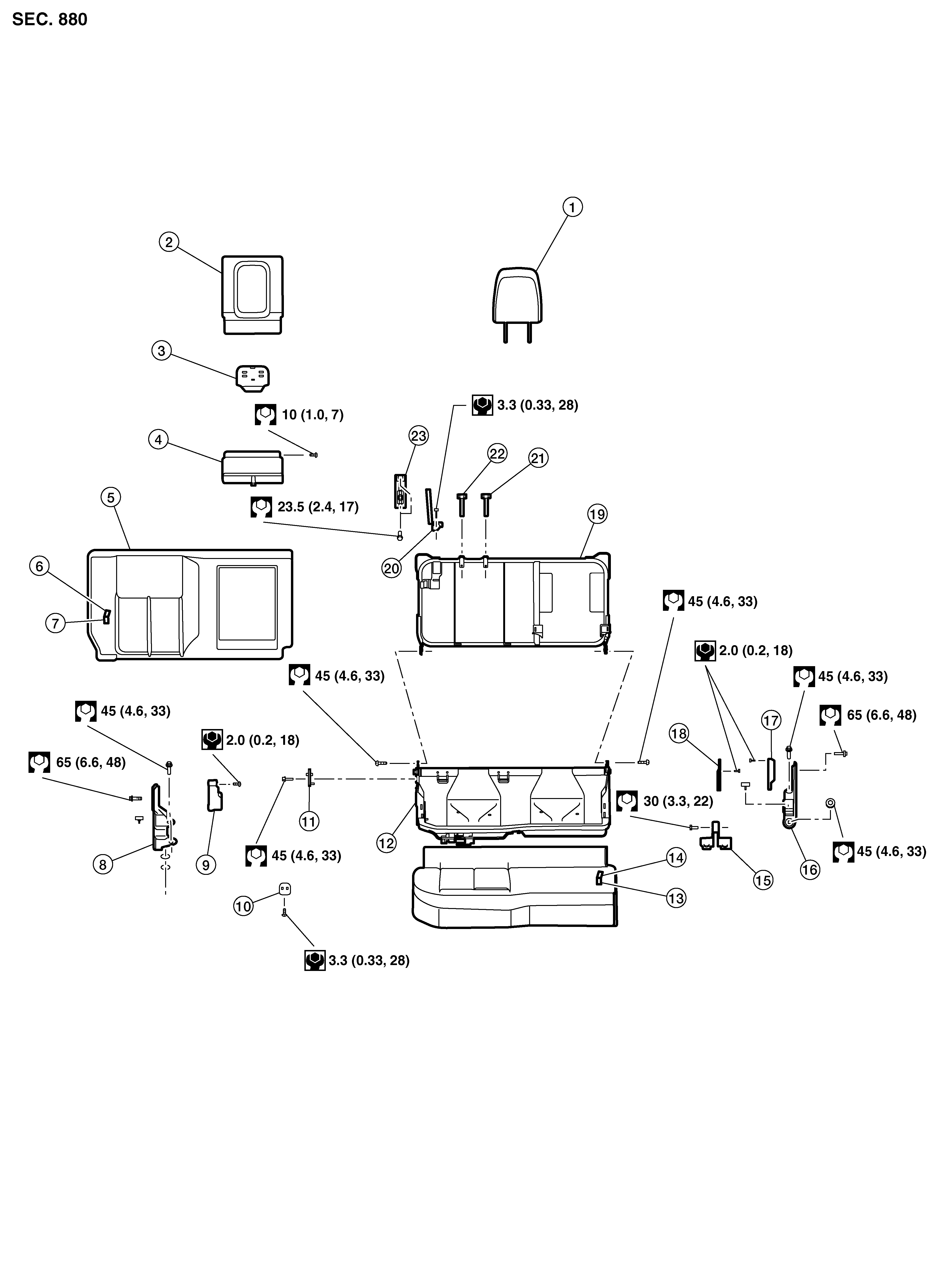

Fig 2: Rear Seat Replacement Components With Torque Specifications (Right Side)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Armrest finisher	3.	Cup holder
4.	Armrest assembly	5.	Seatback assembly	6.	Seatback trim
7.	Seatback pad	8.	Seat support bracket (RH)	9.	Pivot finisher (RH)
10.	Grocery bag hook	11.	Seat cushion release assembly	12.	Seat cushion frame
13.	Seat cushion pad	14.	Seat cushion trim	15.	Rear seat bracket
16.	Seat support bracket (LH)	17.	Outer pivot finisher (LH)	18.	Inner pivot finisher (LH)
19.	Seatback frame	20.	Seatback latch assembly	21.	Headrest holder (locked)
22.	Headrest holder (free)	23.	Seatback striker
