Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the differential gear oil. Refer to Draining .
  2. Remove the rear stabilizer bar clamps and bushings and position rear stabilizer bar out of the way. Refer to Exploded View .

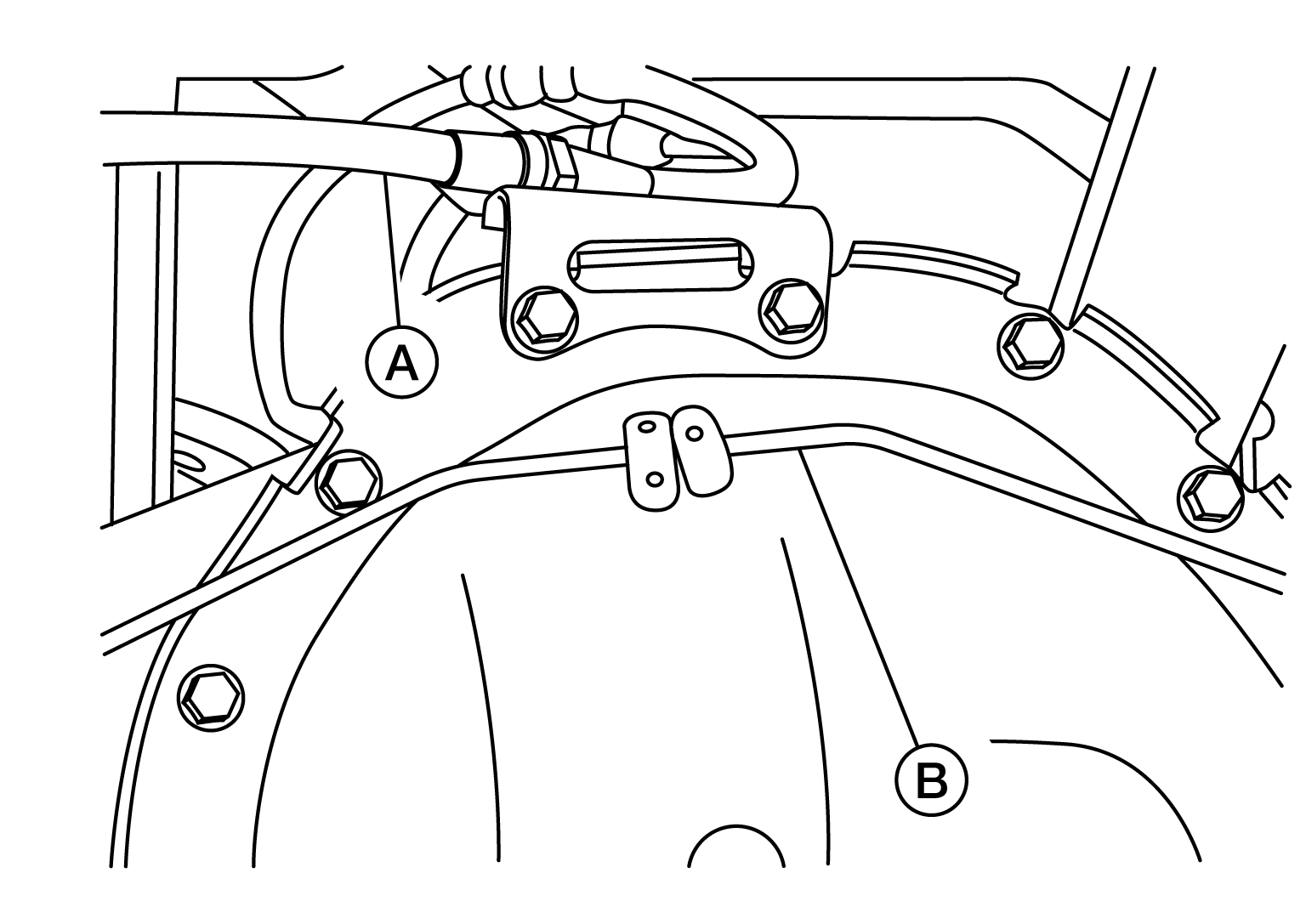

  3. Disconnect the parking brake cable (A) and brake tube (B) from the carrier cover.
    GNSAWDIA1370Z-370Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the carrier cover bolts and separate the carrier cover from the gear carrier.
    CAUTION:
    • Do not damage the mating surface.
    • Do not insert flat-bladed screwdriver, this will damage the mating surface.
