Removal and Installation: Removal

1. Turn the ignition switch OFF.
   CAUTION: Do not turn the ignition switch ON before the completion of the installation procedure.
2. Depress the brake pedal 20 times or more to release the pressure from the accumulator.
   CAUTION: Always perform this step before removing the hydraulic booster assembly.
3. Disconnect battery or batteries. Refer to Battery Disconnect .
4. Drain brake fluid. Refer to Drain and Refill .
5. Remove air cleaner and air duct assembly. Refer to Exploded View (VK56VD) or Exploded View (CUMMINS 5.0L).
6. Remove cowl top extension. Refer to Removal and Installation - Cowl Top Extension .
7. Disconnect the harness connector from the hydraulic booster assembly.
8. Disconnect the harness connector from the brake fluid level sensor.
9. Separate the brake tube from the hydraulic booster assembly with a flare nut wrench. Refer to Removal and Installation .
10. Remove brake tube from clip.
11. Separate brake tubes from ABS actuator.
12. Remove snap pin (1) and clevis pin (2) from clevis.

    Courtesy of NISSAN NORTH AMERICA, INC.

13. Remove nuts on hydraulic booster assembly and brake pedal assembly.
    CAUTION: Support the hydraulic booster assembly to prevent contact with other parts.
14. Remove hydraulic booster assembly.
    CAUTION:

    • Always hold the spacer block and front part of ABS actuator and electric unit (control unit when removing the hydraulic booster assembly.
      • XD Models

        Courtesy of NISSAN NORTH AMERICA, INC.

        (A)	: Front of ABS actuator and electric unit (control unit)
        (B)	: Spacer block

      • Non-XD Models

        Courtesy of NISSAN NORTH AMERICA, INC.

        (A)	: Front of ABS actuator and electric unit (control unit)
        (B)	: Spacer block

    • Do not deform or bend the brake tubes when removing the hydraulic booster assembly.
    • Always use a cushion or equivalent to place the hydraulic booster assembly. Failure to do this may cause uneven loads or impact that may result in a malfunction.
15. After replacing hydraulic booster assembly, always follow the accumulator disposal procedure to discard the hydraulic booster assembly. Refer to Disposal .

ADJUSTMENT BEFORE INSTALLATION

Input Rod Length adjustment

1. Loosen the lock nut and adjust the input rod to the specified length.

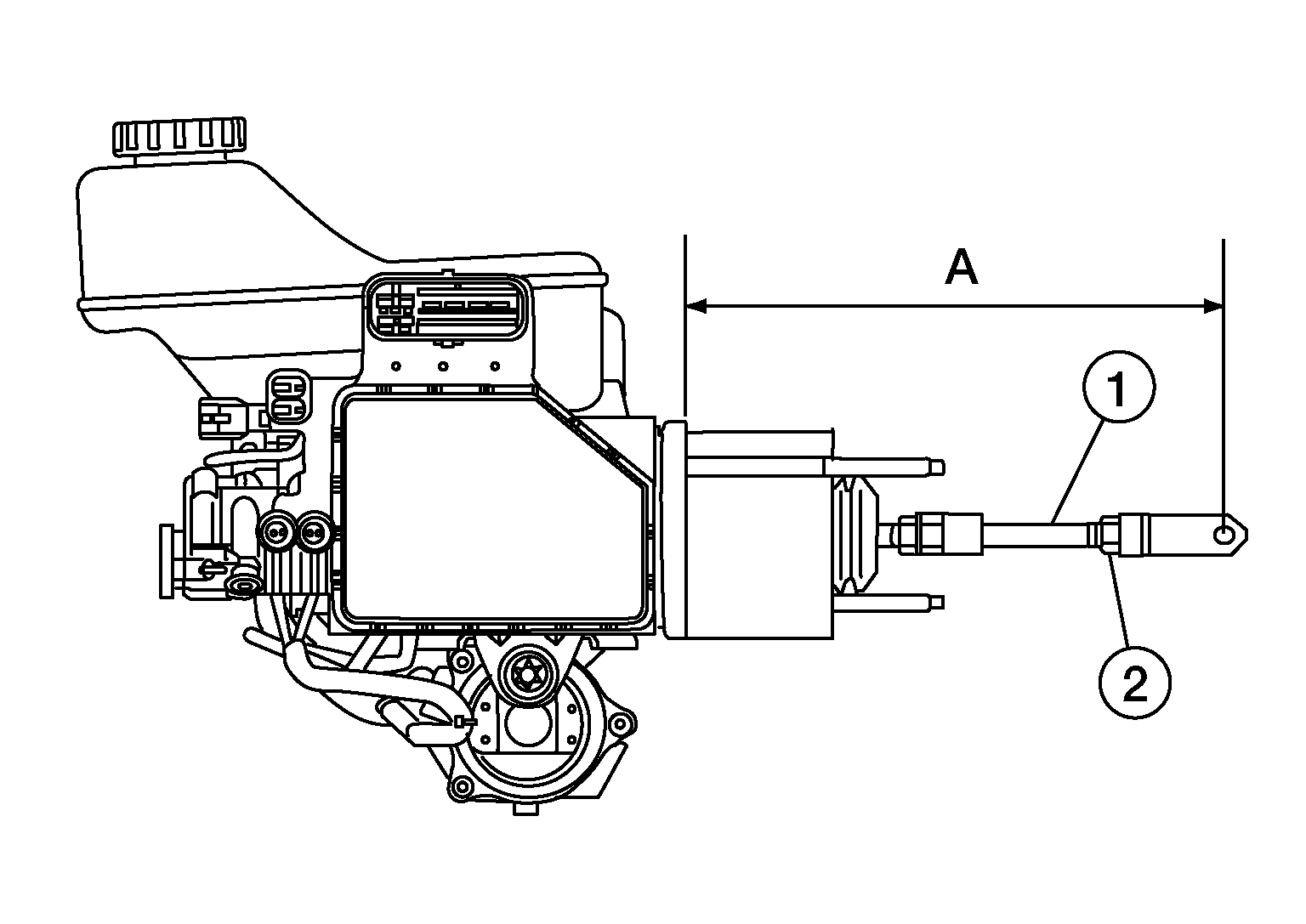

   • XD Models

     Courtesy of NISSAN NORTH AMERICA, INC.

     (1)	: Input rod
     (2)	: Lock nut
     Input rod length (A)	: Refer to Brake Booster .

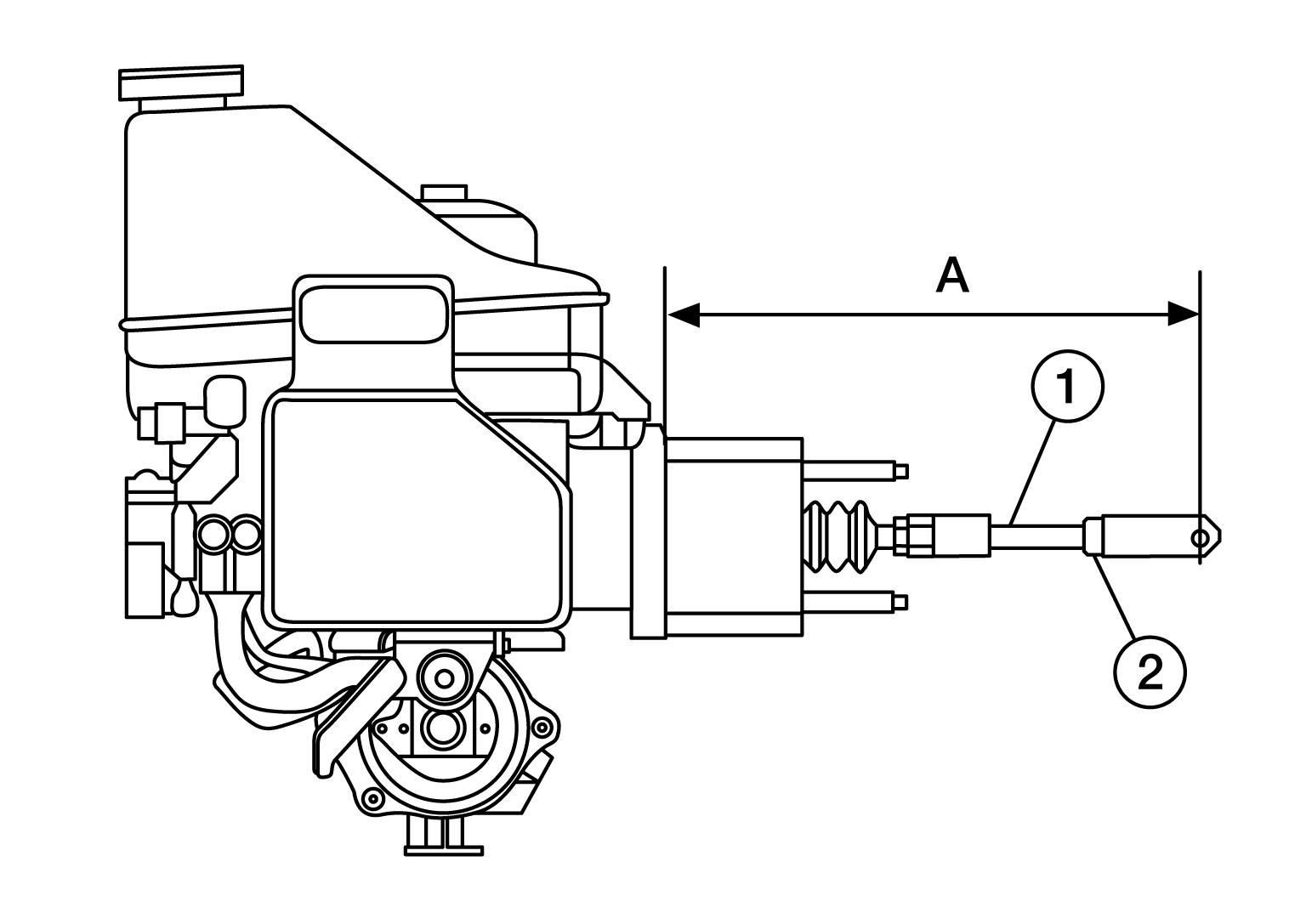

   • Non-XD Models

     Courtesy of NISSAN NORTH AMERICA, INC.

     (1)	: Input rod
     (2)	: Lock nut
     Input rod length (A)	: Refer to Brake Booster .

2. Tighten the lock nut to the specified torque.
