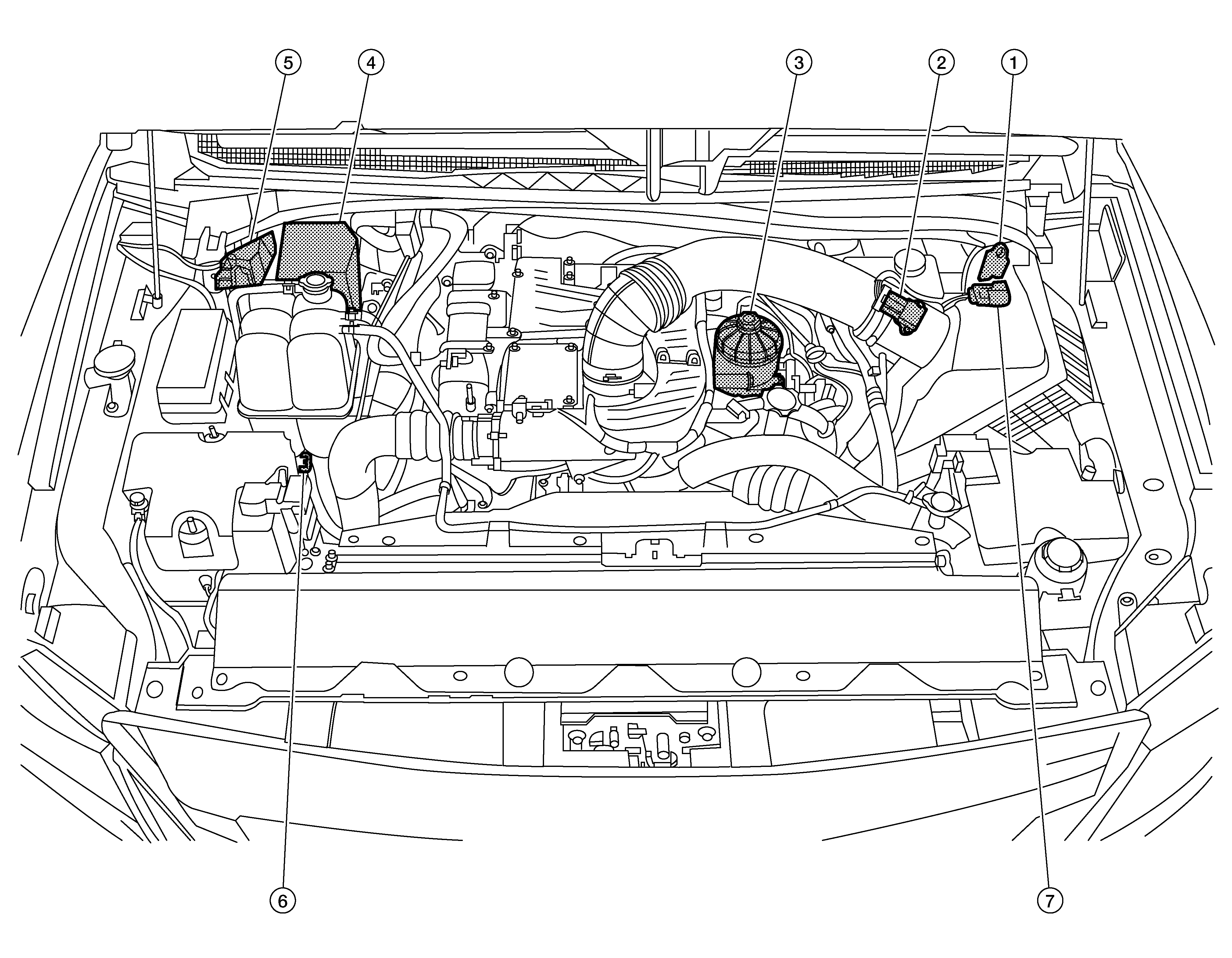

Engine Room Compartment
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
No. |
Component parts |
Function |
|
|
Glow plug control module |
|
|
|
Mass air flow (MAF) sensor |
|
|
|
Fuel filter (stage 2) |
|
|
|
IPDM E/R |
IPDM E/R activates the internal control circuit to perform the relay ON/OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication. Refer to Removal and Installation of IPDM E/R for detailed installation location. |
|
|
ECM |
|
|
|
Coolant level sensor |
|
|
|
Turbocharger compressor intake pressure/temperature sensor (with intake air temperature sensor) |
