Turbocharger Compressor Intake Pressure/Temperature Sensor
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

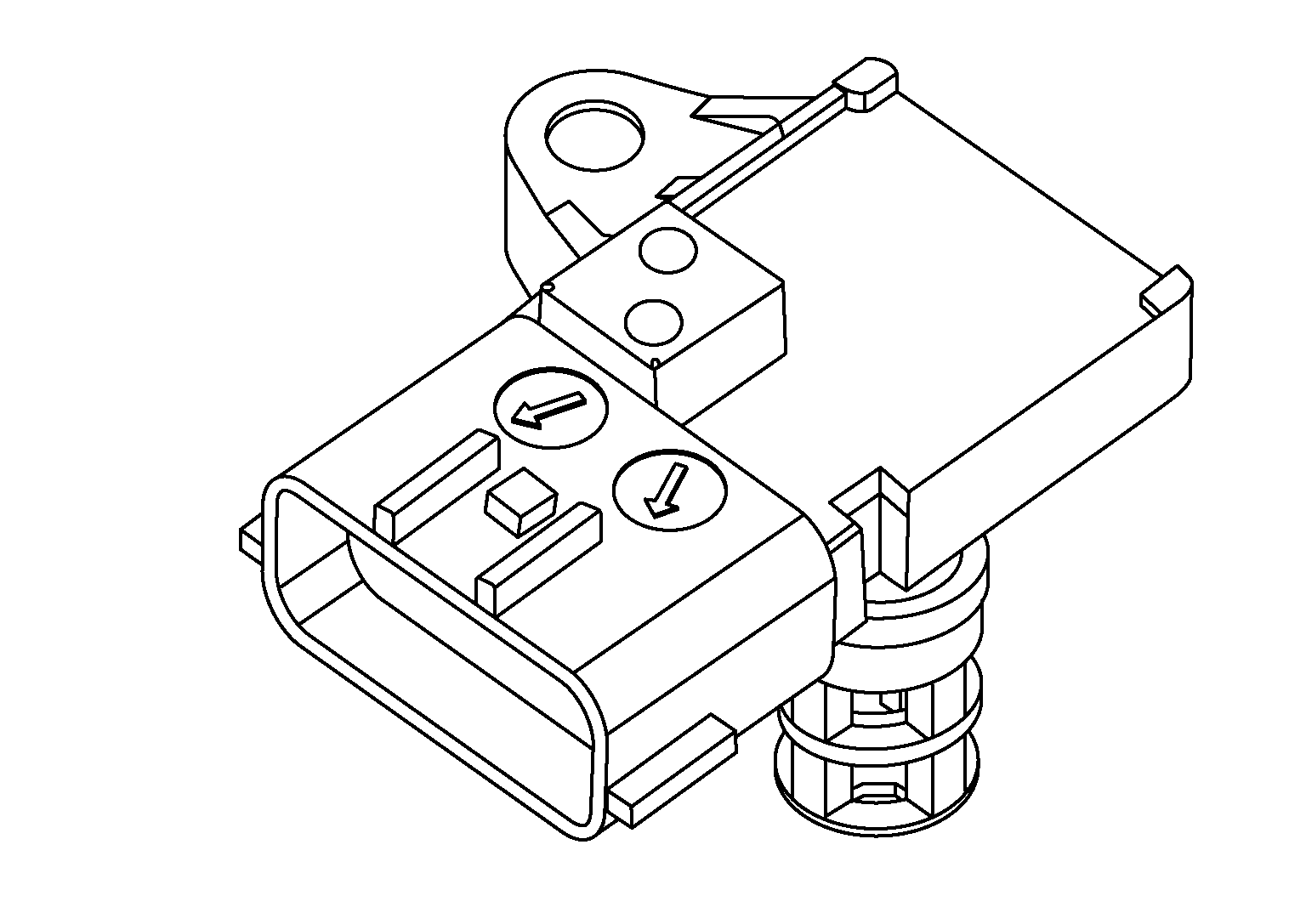

The turbocharger compressor intake pressure/temperature sensor is located on top of the air filter housing. This sensor monitors the temperature and pressure of air in the intake air duct, and can help the ECM determine air filter restriction and changes in altitude.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
