Front Differential Gear Oil: Refilling

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

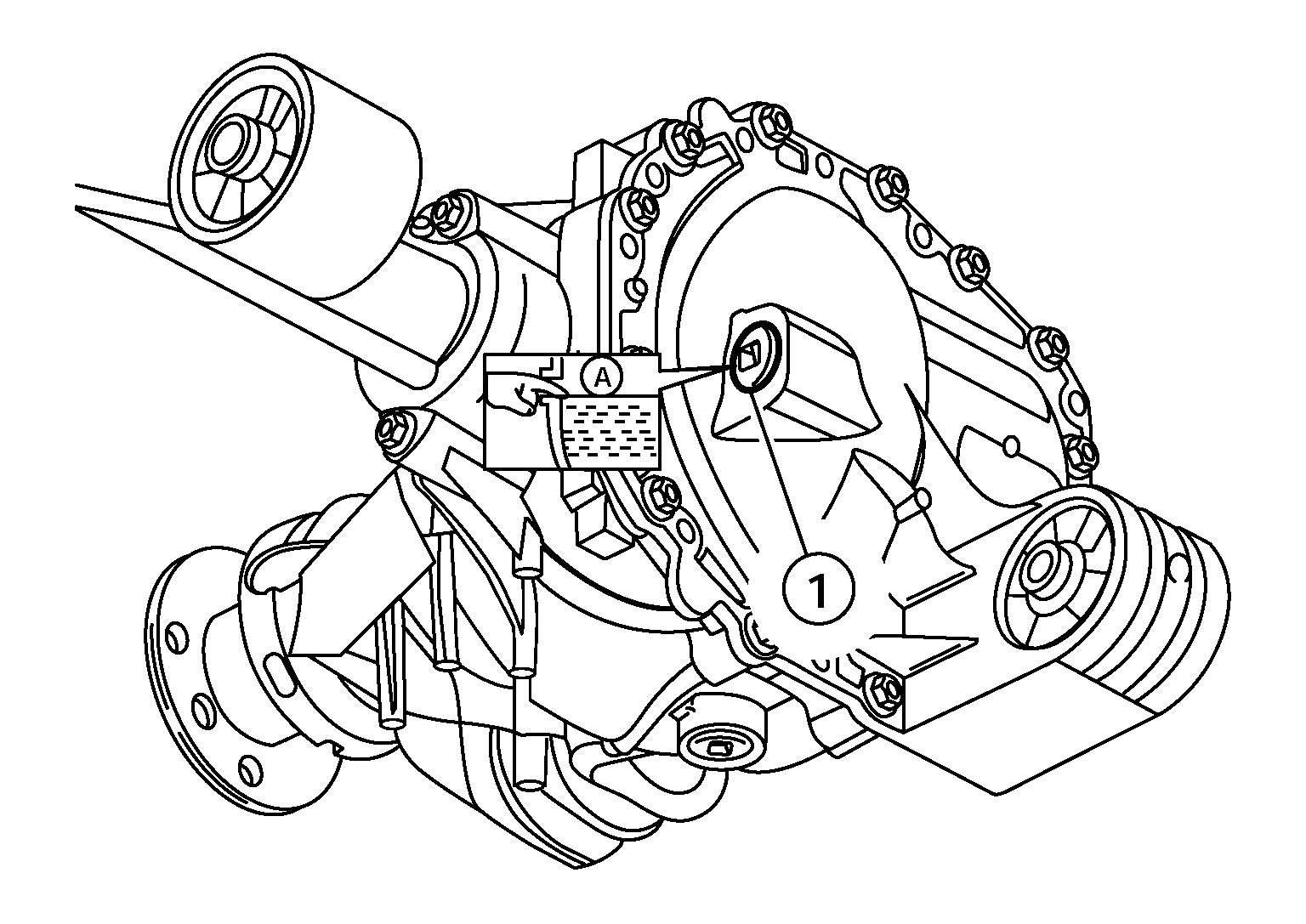

  1. Remove filler plug (1) and gasket. Then fill with new gear oil until oil level (A) reaches the specified level near filler plug mounting hole.
    GNSALDIA0741Z-741Courtesy of NISSAN NORTH AMERICA, INC.

    Oil grade and viscosity

    : Refer to Cummins (5.0L V8D) Engine : Fluids and Lubricants

    Standard Oil capacity

    : Refer to General Specification .
  2. Install a gasket on filler plug, and install it to final drive assembly.
    CAUTION: Do not reuse gasket.
  3. Tighten filler plug to the specified torque. Refer to Exploded View .
