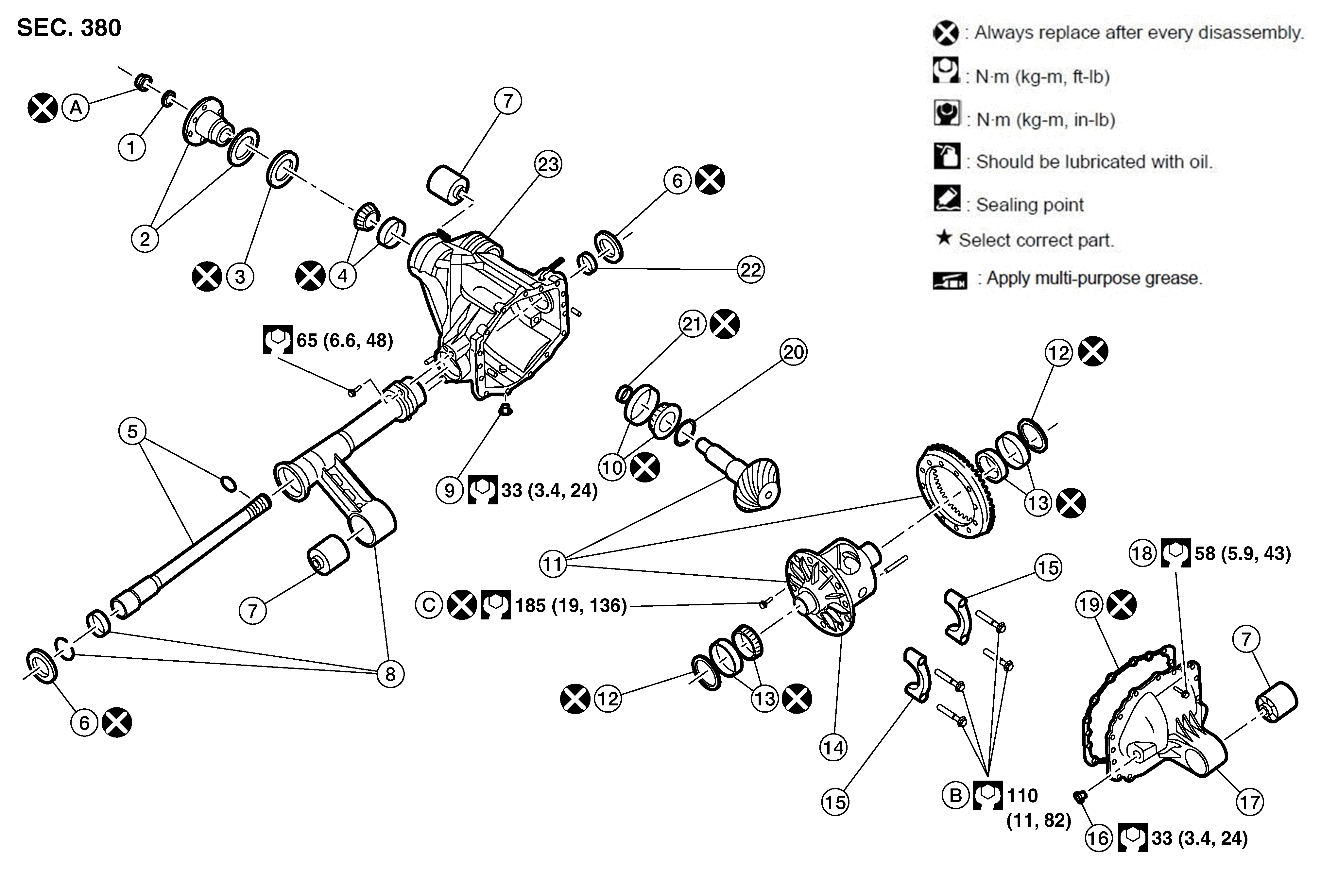

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front pinion shim |
2. |
Pinion flange assembly |
3. |
Front oil seal |
|
4. |
Pinion front bearing |
5. |
Intermediate shaft assembly |
6. |
Side oil seal |
|
7. |
Insulator bushing |
8. |
Axle tube assembly |
9. |
Drain plug |
|
10. |
Pinion rear bearing |
11. |
Drive pinion and drive gear assembly |
12. |
Side bearing adjusting washer |
|
13. |
Differential side bearing |
14. |
Differential case assembly |
15. |
Differential bearing cap |
|
16. |
Filler plug |
17. |
Carrier cover |
18. |
Carrier cover bolts |
|
19. |
Carrier cover gasket |
20. |
Pinion thrust washer |
21. |
Collapsible spacer |
|
22. |
Needle bearing |
23. |
Gear carrier |
A. |
Drive pinion lock nut |
|
B. |
Differential bearing cap bolts |
C. |
Drive gear bolts, refer to Disassembly and Assembly . |
