Front Differential Gear Oil: Draining

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch OFF.

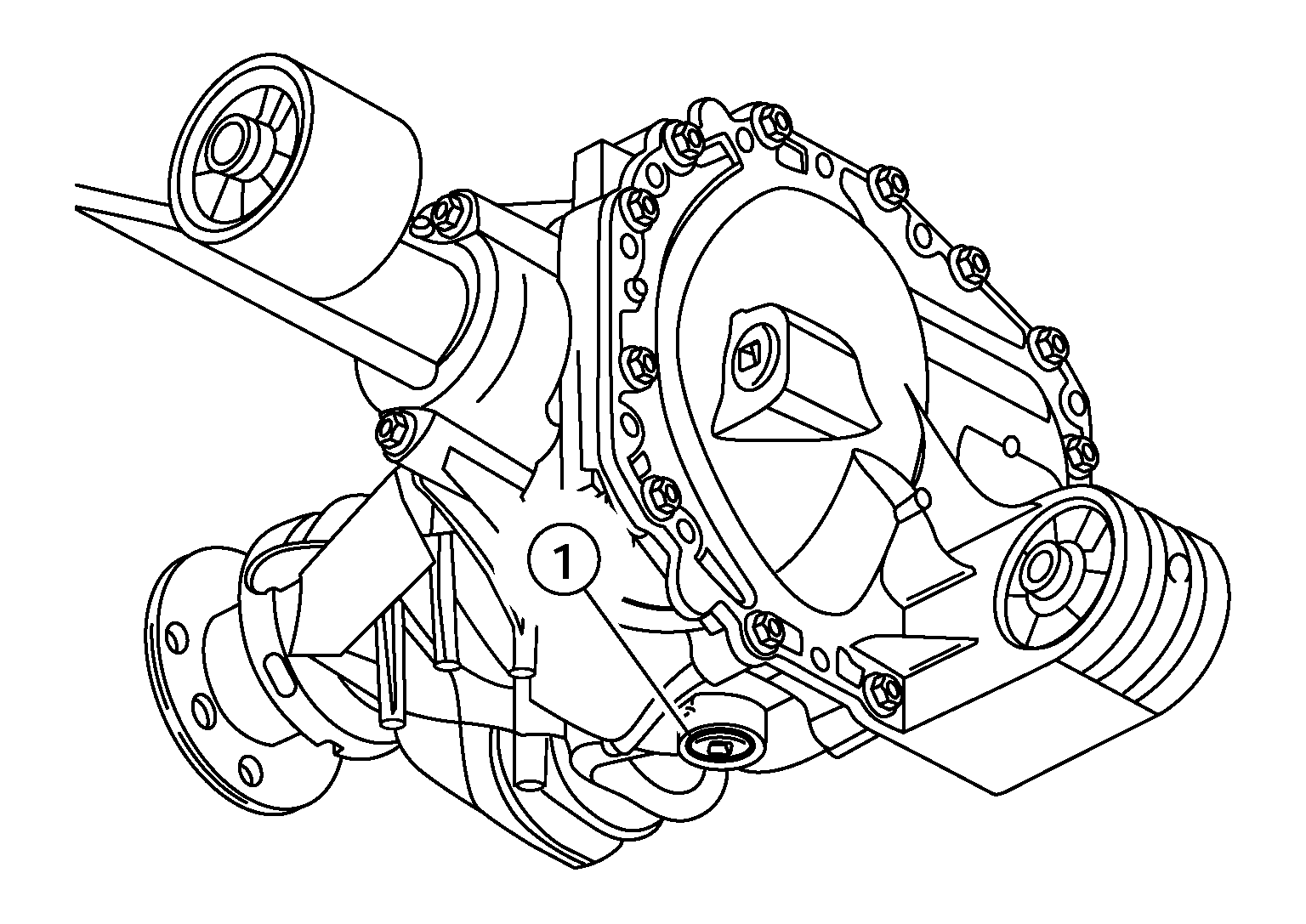

  2. Remove drain plug (1) and gasket.
    GNSALDIA0742Z-742Courtesy of NISSAN NORTH AMERICA, INC.
  3. Drain gear oil.
  4. Install a gasket on drain plug and install it to final drive assembly.
    CAUTION: Do not reuse gasket.
  5. Tighten drain plug to the specified torque. Refer to Exploded View .
