Toe-In Adjustment

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust the toe-in by varying the length of the steering outer socket.
    1. Loosen the outer tie-rod lock nuts.
    2. Adjust the toe-in by screwing the outer tie-rods in or out.

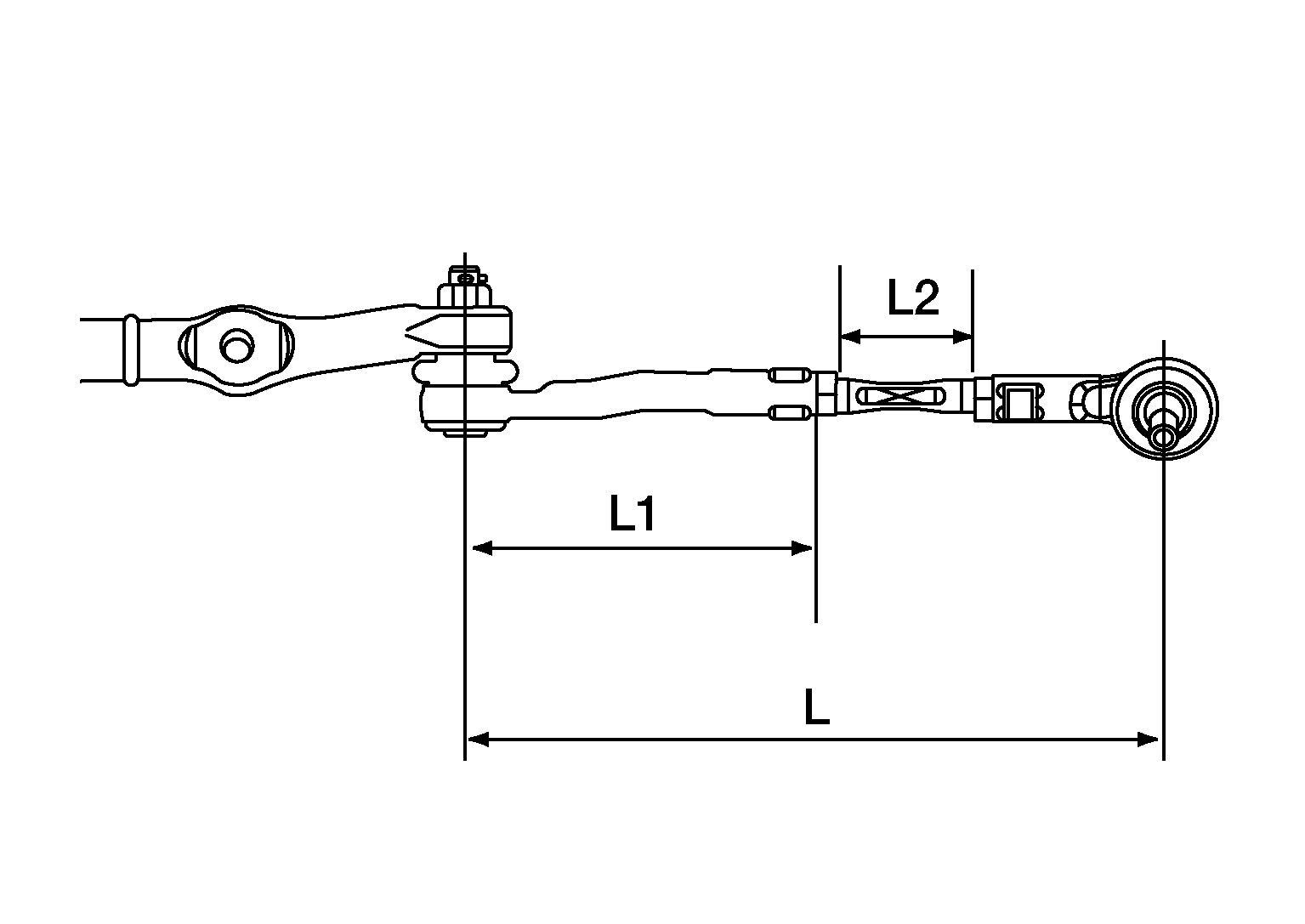

      GNSDB120865Courtesy of NISSAN NORTH AMERICA, INC.

      Standard length (L)

      : Refer to Steering Linkage - XD Models .

      Inner socket length (L1)

      : Refer to Steering Linkage - XD Models .

      Possible amount of adjustment (L2)

      : Refer to Steering Linkage - XD Models .
    3. Tighten the outer tie-rod lock nuts to specification.

      Lock nut

      : Refer to Exploded View .
