Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

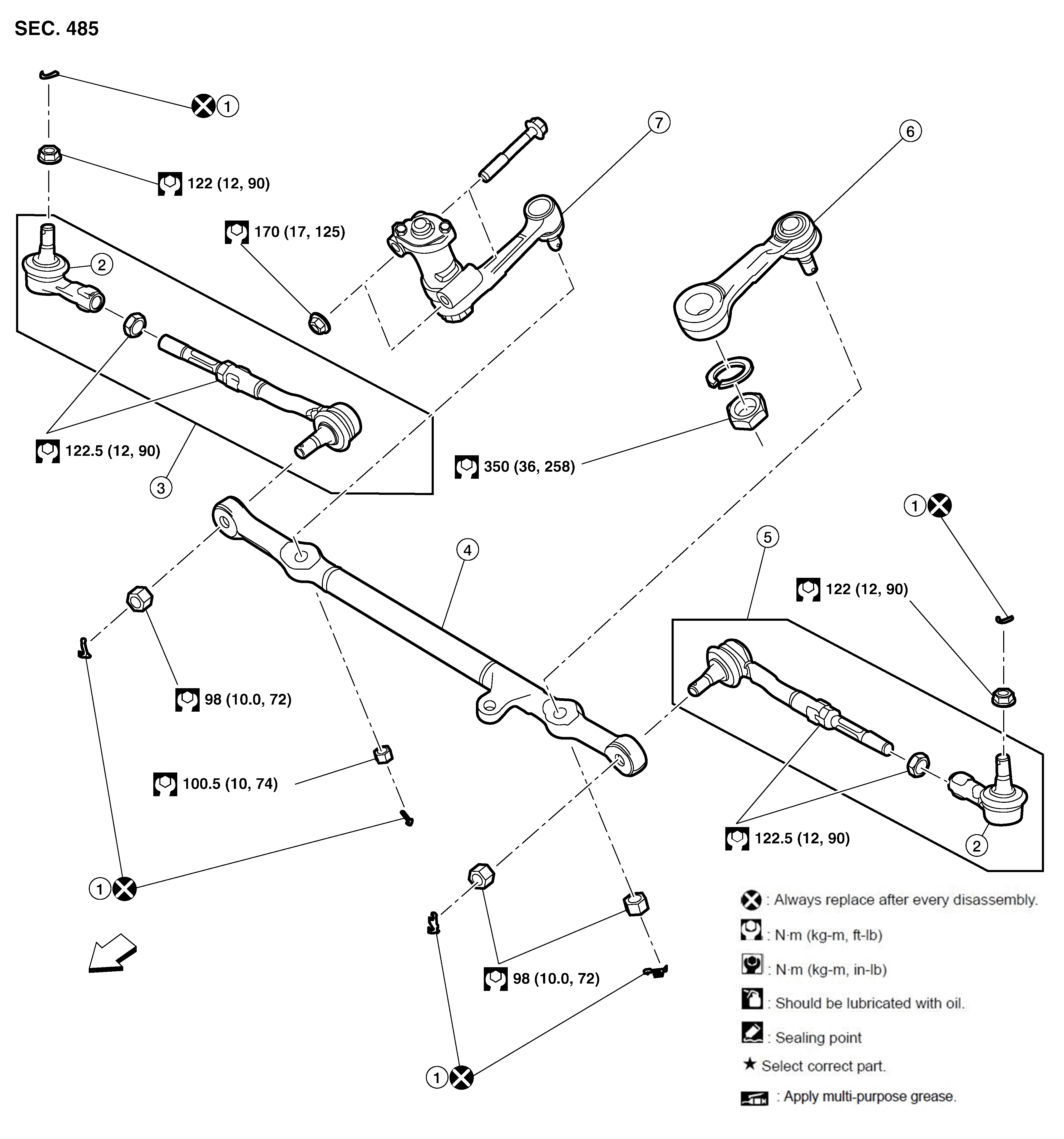

Fig 1: Inner And Outer Sockets With Torque Specifications (2WD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cotter pin	2.	Outer socket	3.	Inner/outer socket assembly (RH)
4.	Relay rod	5.	Inner/outer socket assembly (LH)	6.	Pitman arm
7.	Idler arm		Front

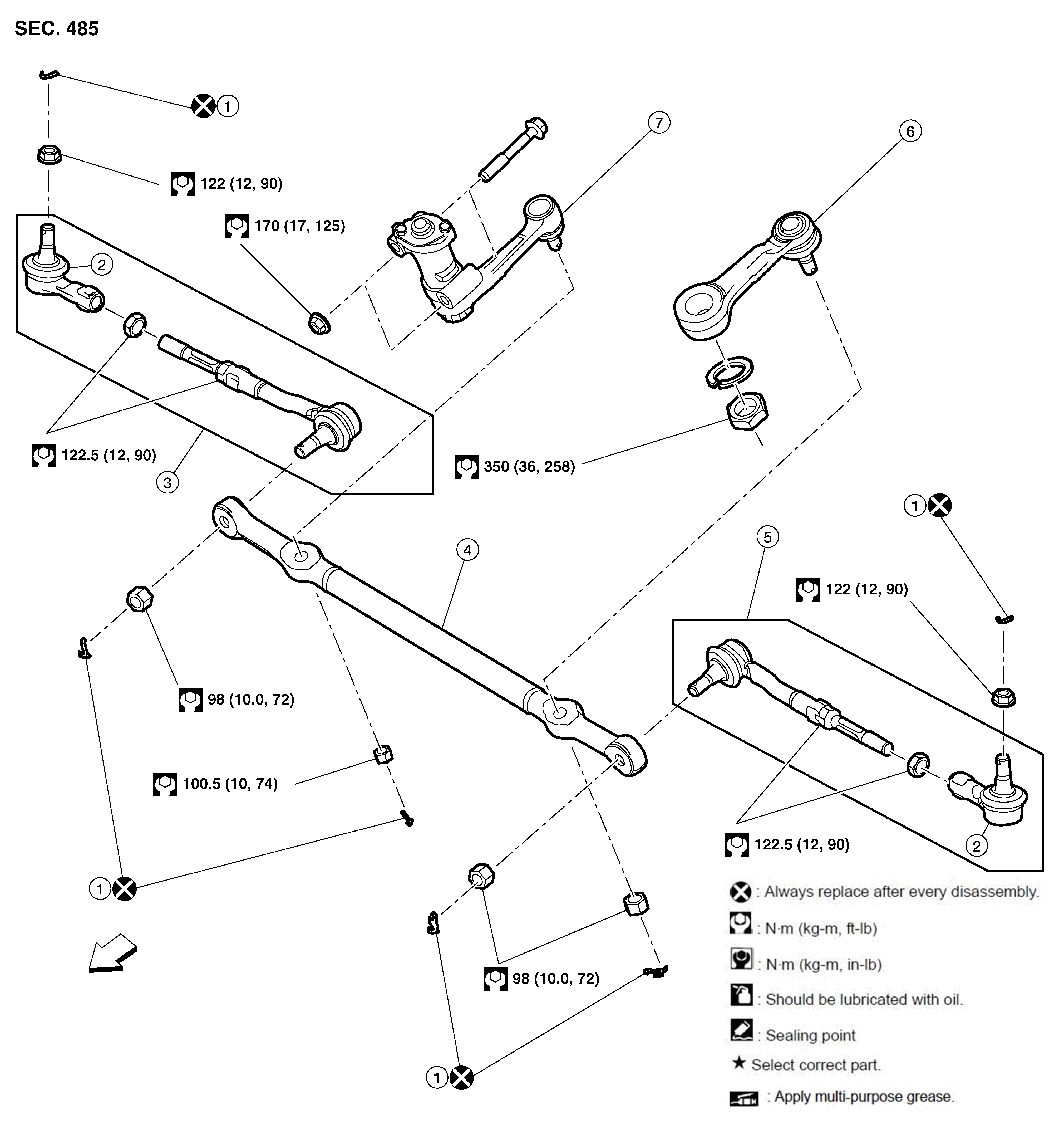

Fig 2: Inner And Outer Sockets With Torque Specifications (4WD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cotter pin	2.	Outer socket	3.	Inner/outer socket assembly (RH)
4.	Relay rod	5.	Inner/outer socket assembly (LH)	6.	Pitman arm
7.	Idler arm		Front
