Draining - MA210
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

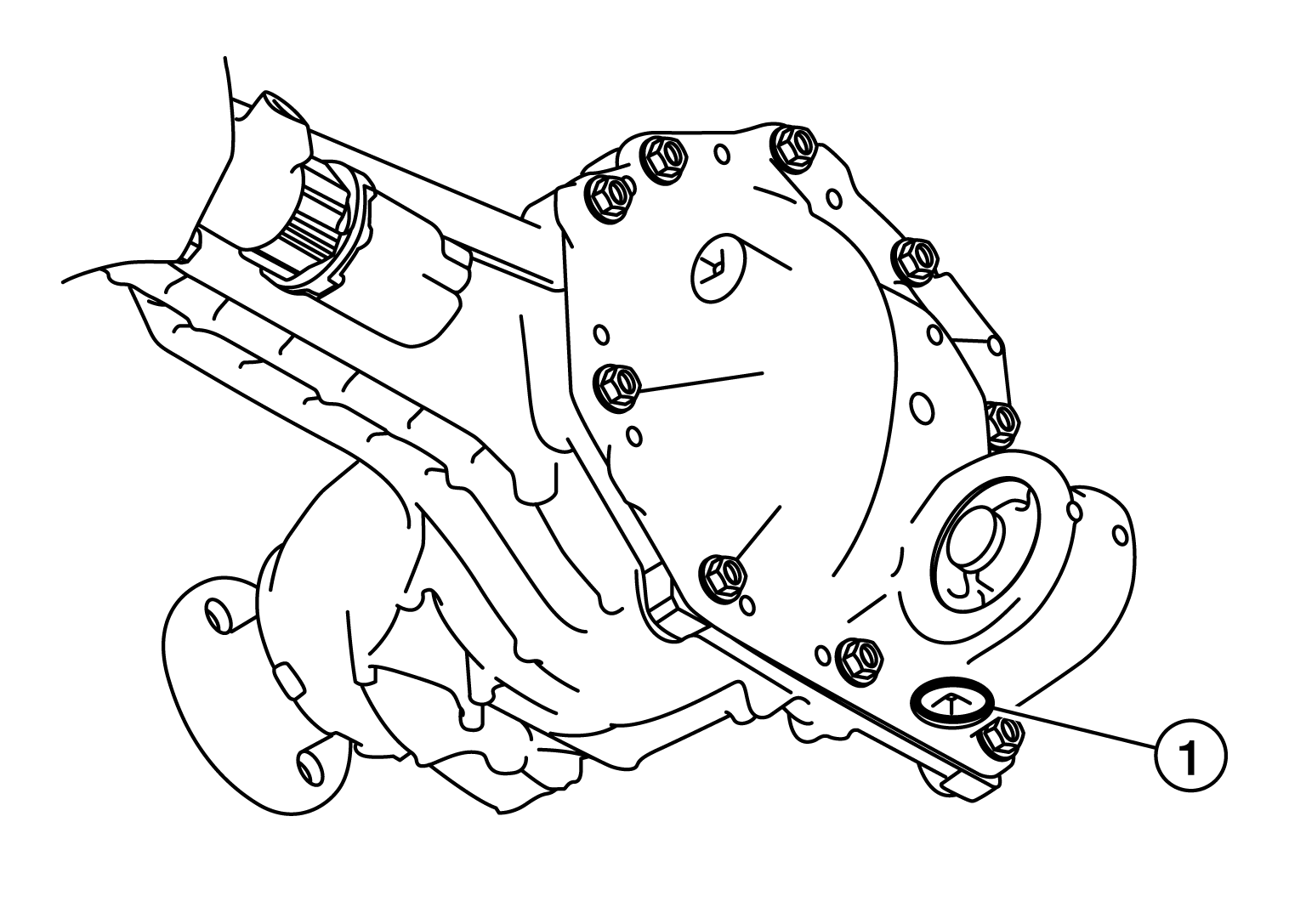

- Remove drain plug (1) with O-ring.
- Drain the gear oil.
- Install drain plug with O-ring into front final drive.
- Tighten drain plug to the specified torque. Refer to Exploded View .
