Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

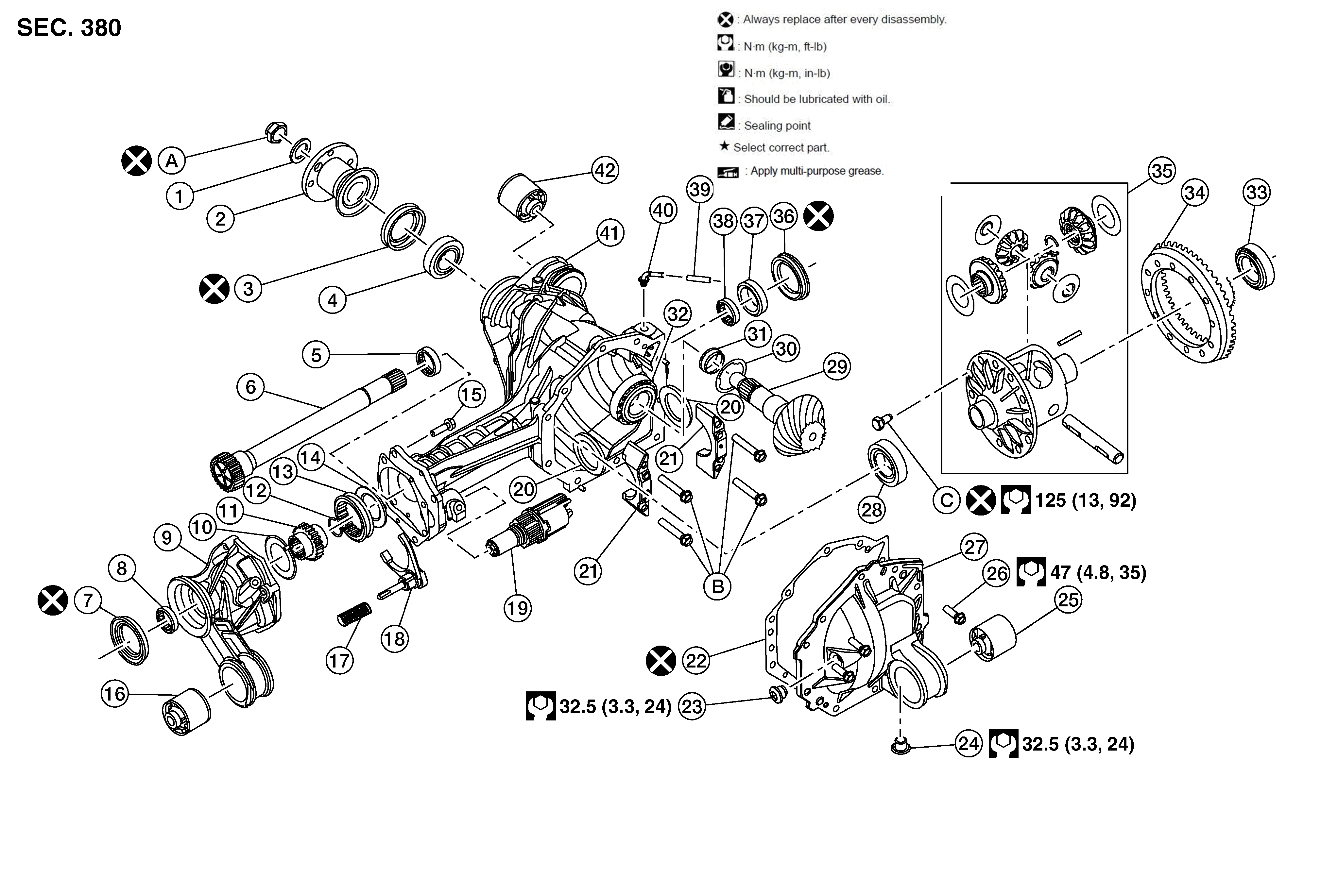

Fig 1: Front Final Drive Unit Disassembly And Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Preload washer	2.	Pinion flange	3.	Front oil seal
4.	Pinion rear bearing	5.	Needle bearing	6.	Intermediate shaft
7.	Side oil seal	8.	Side needle bearing	9.	Disconnect housing
10.	Thrust washer	11.	Clutch gear	12.	Snap Ring
13.	Disconnect clutch gear	14.	Thrust washer	15.	Disconnect housing bolt
16.	Insulator bushing	17.	Return spring	18.	Shifter Fork
19.	Actuator	20.	Differential shim	21.	Bearing cap
22.	Gasket	23.	Fill plug	24.	Drain plug
25.	Insulator bushing	26.	Carrier cover bolt	27.	Carrier cover
28.	Differential bearing	29.	Drive Pinion	30.	Pinion shim
31.	Collapsible spacer	32.	Pinion front bearing	33.	Differential bearing
34.	Drive gear	35.	Differential case assembly	36.	Side oil seal
37.	Sleeve	38.	Side needle bearing	39.	Vent cap
40.	Vent	41.	Gear Carrier	42.	Insulator bushing
A.	Drive pinion lock nut	B.	Bearing cap bolts	C.	Drive gear bolt, refer to Disassembly and Assembly .
