Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

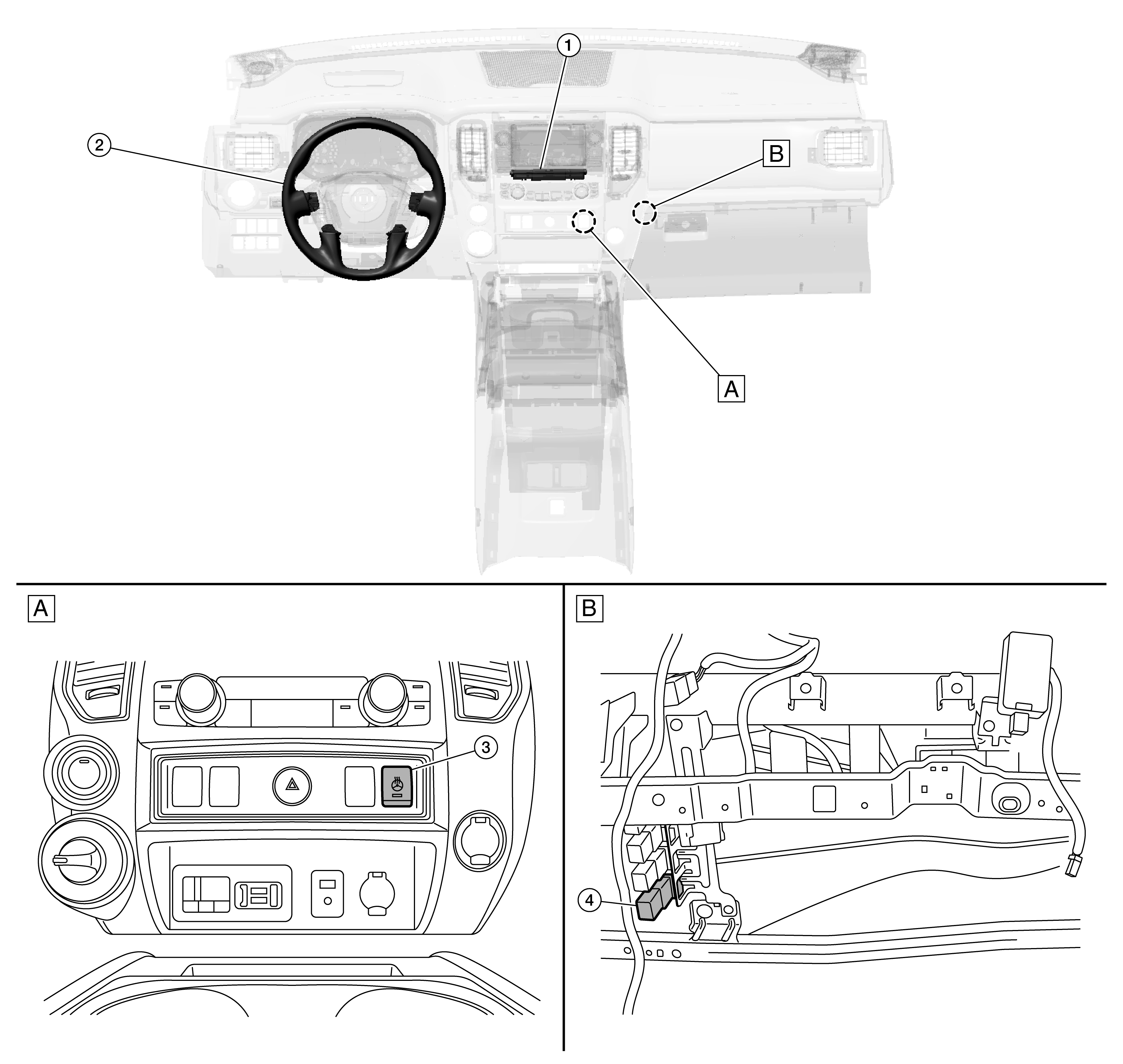

Center of instrument panel

Lower instrument panel passenger side

No.	Component	Function
1.	A/C auto amp.	For the function, refer to A/C Auto Amp. . Refer to Component Parts Location for detailed installation location.
2.	Heated steering wheel	Heated Steering Wheel
3.	Heated steering wheel switch	Steering wheel heater function ON/OFF.
4.	Heated steering relay	Heated Steering Wheel Relay
