Heated Steering Wheel
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

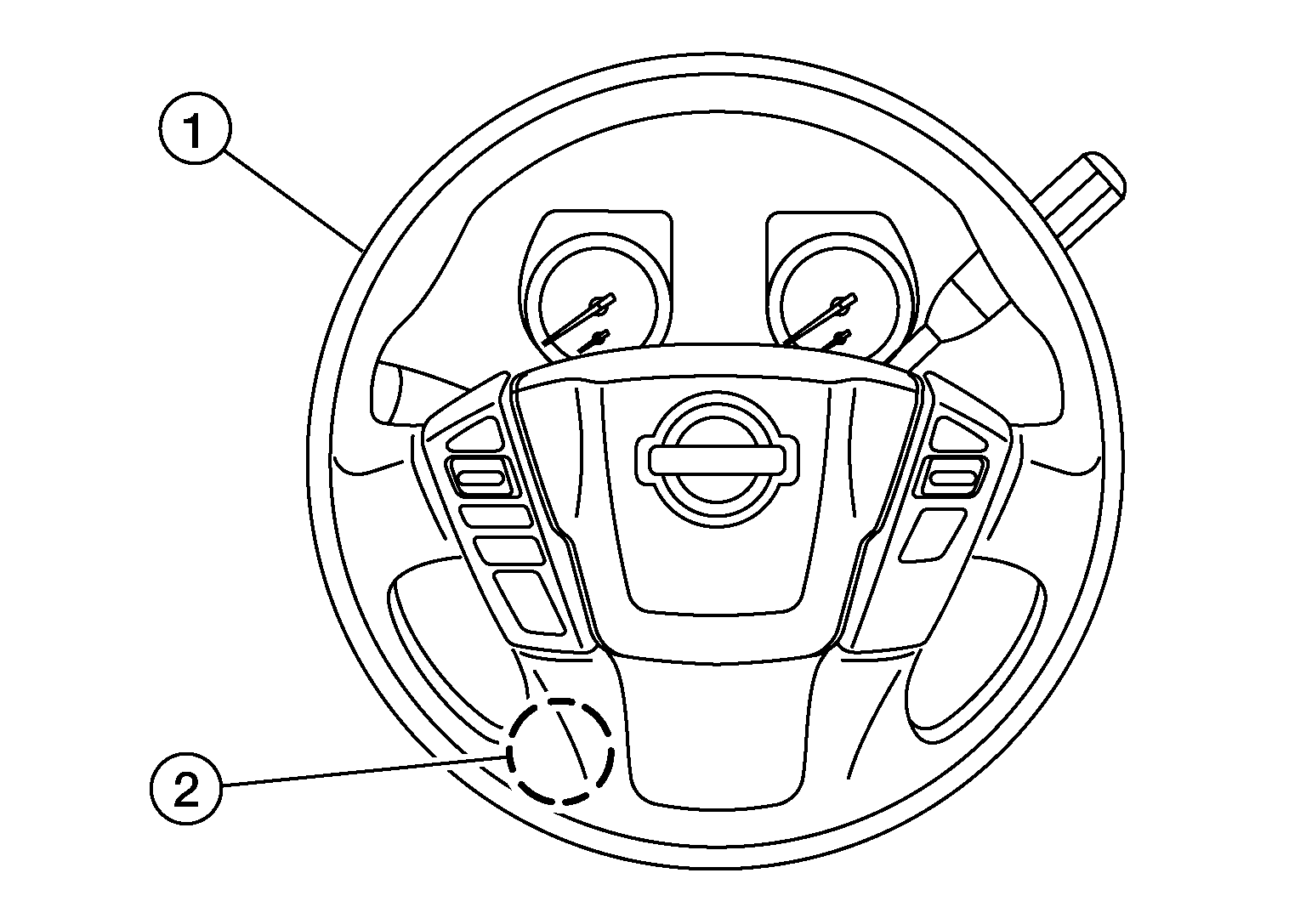

With the power supply from the heated steering wheel relay, the heated steering wheel controls the temperature through the heating element 1 and thermostat 2 built into the steering wheel.
- Heating element: Generates heat by energizing.NOTE: Heating element is located at the back of the steering wheel leather surface.
- Thermostat: Turns ON/OFF power supply according to the specified temperature.
