Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering wheel. Refer to Removal and Installation .
  2. Remove steering column covers. Refer to Removal and Installation .

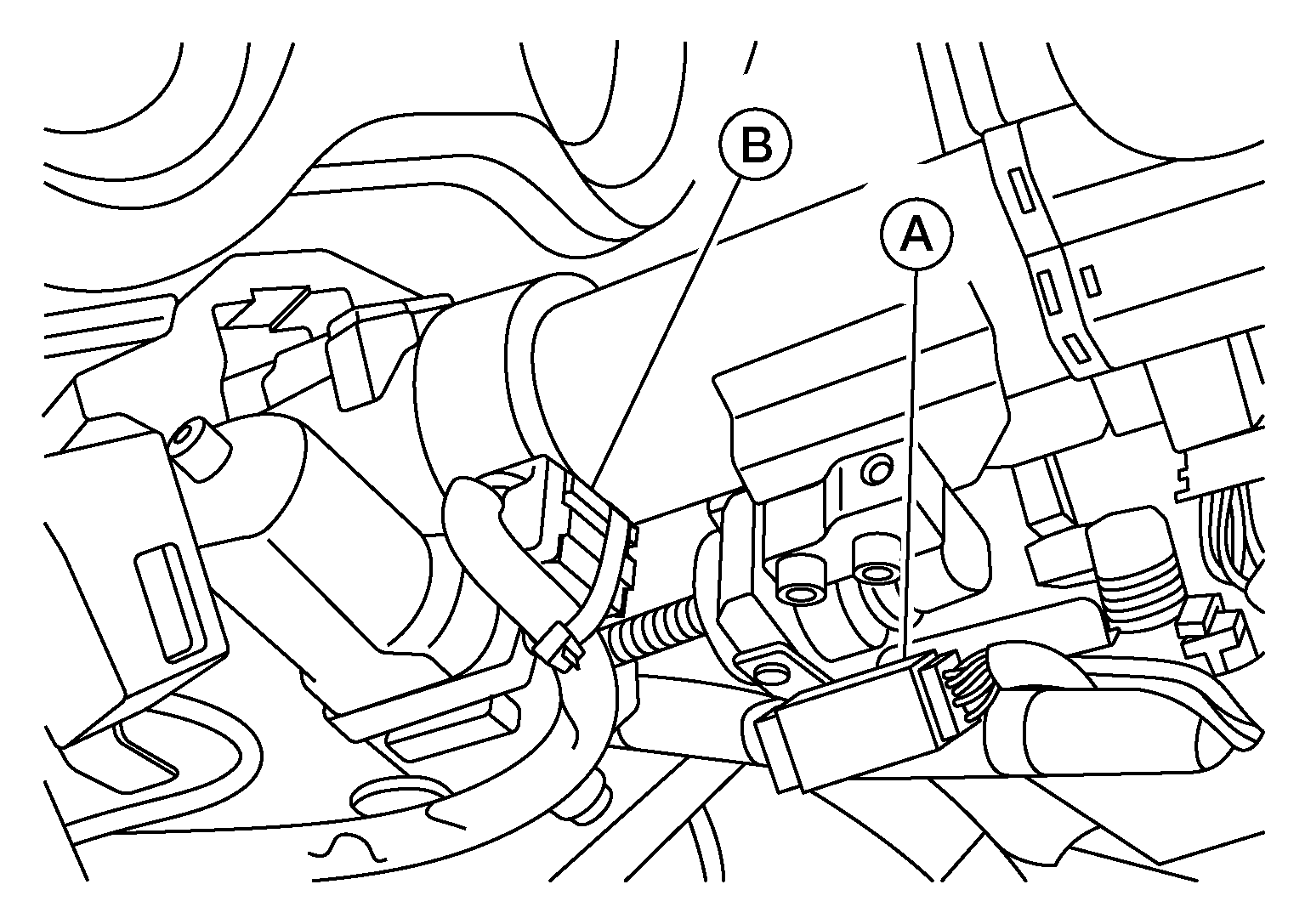

  3. Disconnect harness connector (A) from shift interlock.
    GNSDB123301Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect harness connector (B) from steering column (if equipped).
  5. Disconnect harness connector from combination switch.
  6. Disconnect harness connector from spiral cable
  7. Disconnect harness connector from steering angle sensor.
  8. Separate wiring harness from steering column and position wiring harness aside.
  9. Remove instrument lower panel LH. Refer to Removal and Installation .
  10. Remove knee protector. Refer to Exploded View .
  11. If equipped with mechanical steering column, secure tilt/telescope control lever with a cable tie (A) through hole in lever (B) and around steering column (1) as shown.
    GNSALGIA0370Z-370Courtesy of NISSAN NORTH AMERICA, INC.
  12. Disconnect A/T shift selector control cable from steering column. Refer to Removal and Installation .
  13. Remove nut (A) and pinch bolt (B) from steering column joint.
    GNSAWGIA0423Z-423Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse nut.
  14. Release collar lock tabs (A), then separate intermediate shaft (1) from steering column joint (2) in direction shown (SYMBOL ).
    GNSALGIA0269Z-269Courtesy of NISSAN NORTH AMERICA, INC.
  15. Remove steering column nuts (A).
    GNSALGIA0267Z-267Courtesy of NISSAN NORTH AMERICA, INC.

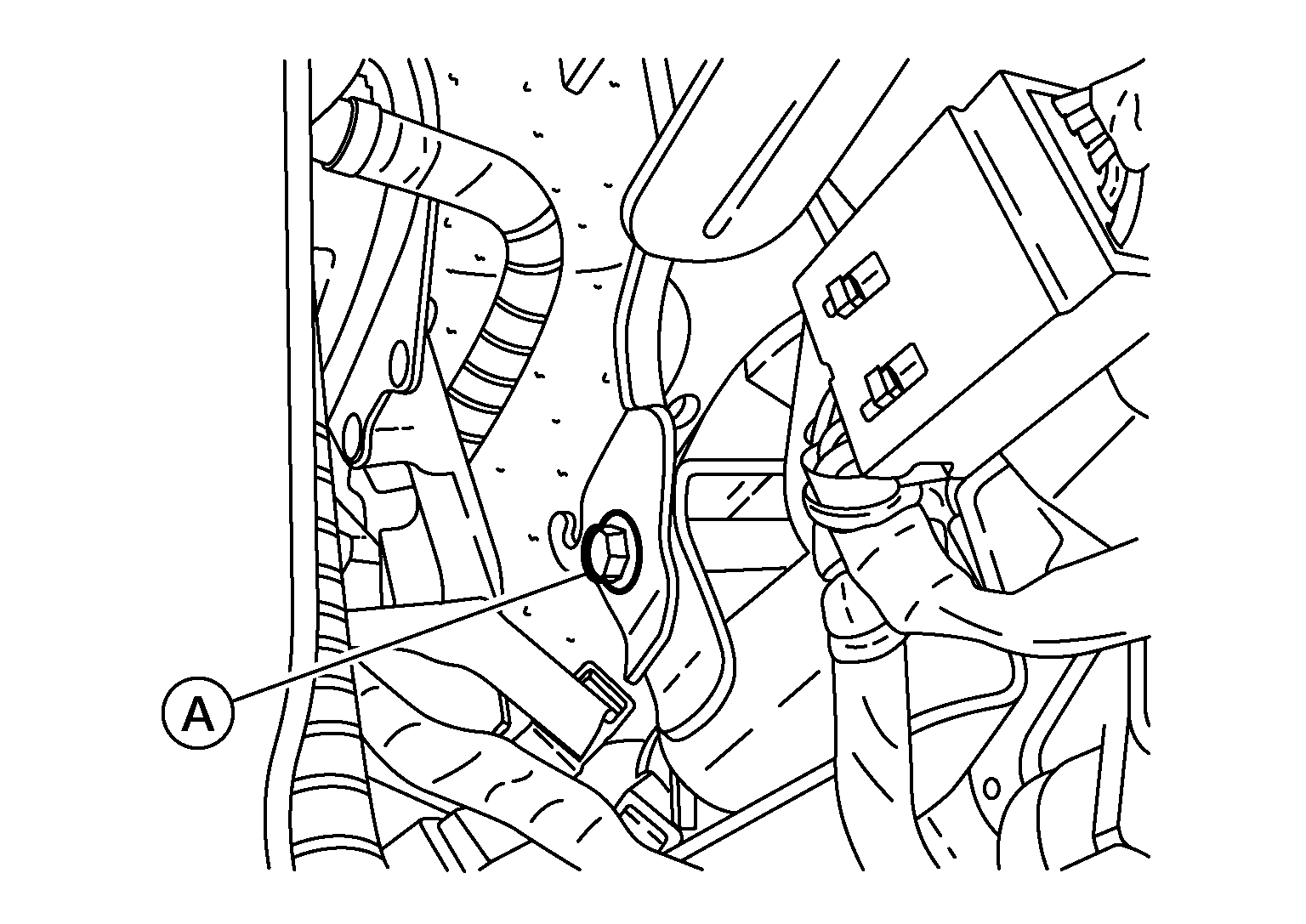

  16. Remove steering column bolt (A), then remove steering column from vehicle.
    GNSALGIA0270Z-270Courtesy of NISSAN NORTH AMERICA, INC.
  17. Inspect collar (A) on intermediate shaft (1).
    GNSAWGIA0410Z-410Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: If collar is damaged or separates from intermediate shaft, collar must be replaced.
