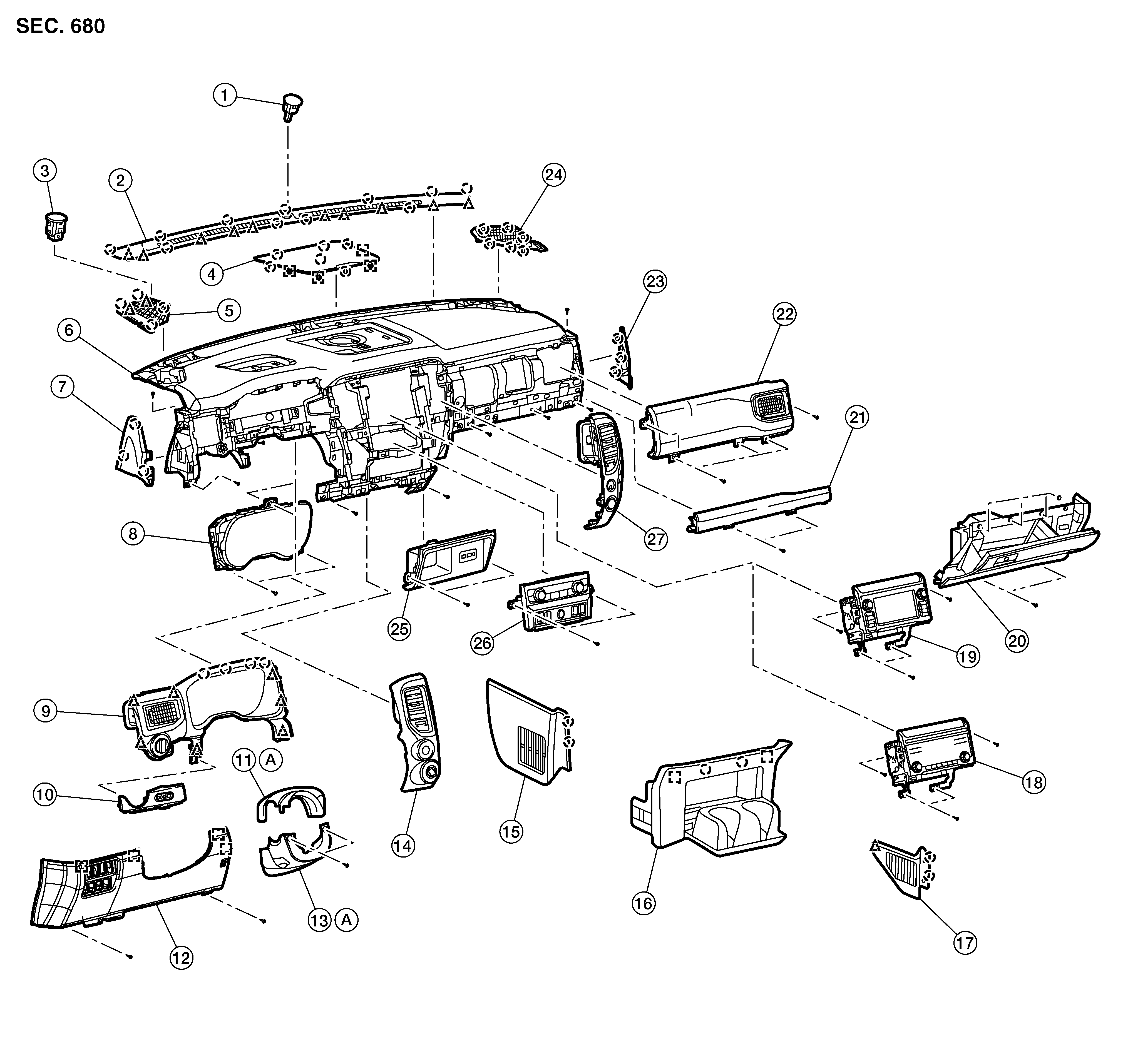

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Sunload sensor (if equipped) |
2. |
Front defroster grille |
3. |
Optical sensor (if equipped) |
|
4. |
Center speaker grille |
5. |
Speaker grille (LH) |
6. |
Instrument panel assembly |
|
7. |
Instrument side finisher (LH) |
8. |
Combination meter |
9. |
Cluster lid A |
|
10. |
Instrument finisher A |
11. |
Steering column upper cover |
12. |
Instrument lower panel LH |
|
13. |
Steering column lower cover |
14. |
Cluster lid C finisher (LH) |
15. |
Instrument stay cover (LH) |
|
16. |
Cup holder (if equipped) |
17. |
Instrument stay cover (RH) |
18. |
Audio unit |
|
19. |
AV control unit (if equipped) |
20. |
Glove box assembly and housing |
21. |
Instrument finisher B |
|
22. |
Upper instrument panel |
23. |
Instrument side finisher (RH) |
24. |
Speaker grille (RH) |
|
25. |
Cluster lid C lower |
26. |
Cluster lid C |
27. |
Cluster lid C finisher (RH) |
|
A. |
Serviced as an assembly |
|
Pawl |
|
Clip |
|
|
Metal clip |
