Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heating and cooling assembly. Refer to Removal and Installation .
  2. Remove collar (A) from intermediate shaft (1).
    GNSAWGIA0410Z-410Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: If collar is damaged, collar must be replaced.
  3. Remove accelerator pedal. Refer to Removal and Installation .
  4. Remove brake pedal. Refer to Removal and Installation .
  5. Remove parking brake front cable retaining nut at bulkhead (LH). Refer to Exploded View .
  6. Remove parking brake control. Refer to Removal and Installation .
    NOTE: Do not remove parking brake switch.
  7. Remove dash side finisher (LH/RH). Refer to Removal and Installation .
  8. Pull carpet back as necessary for access.
  9. Remove clips and remove dash insulator.

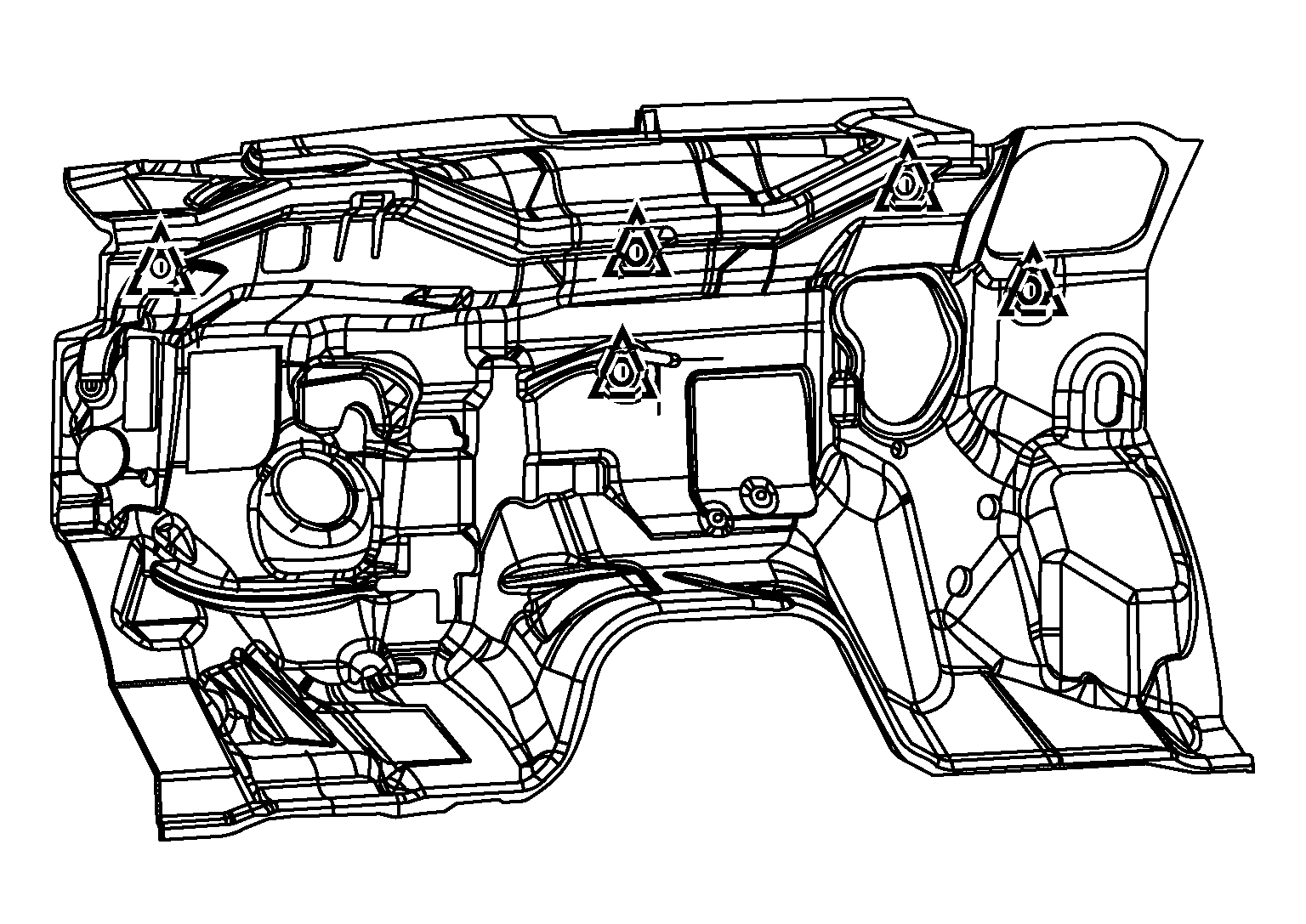

    GNSALGIA0288Z-288Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not damage dash insulator during removal. If insulator is damaged, it must be replaced.

    SYMBOL

    : Clip
  10. Remove clamp (1) and hole cover seal (2) from hole cover.

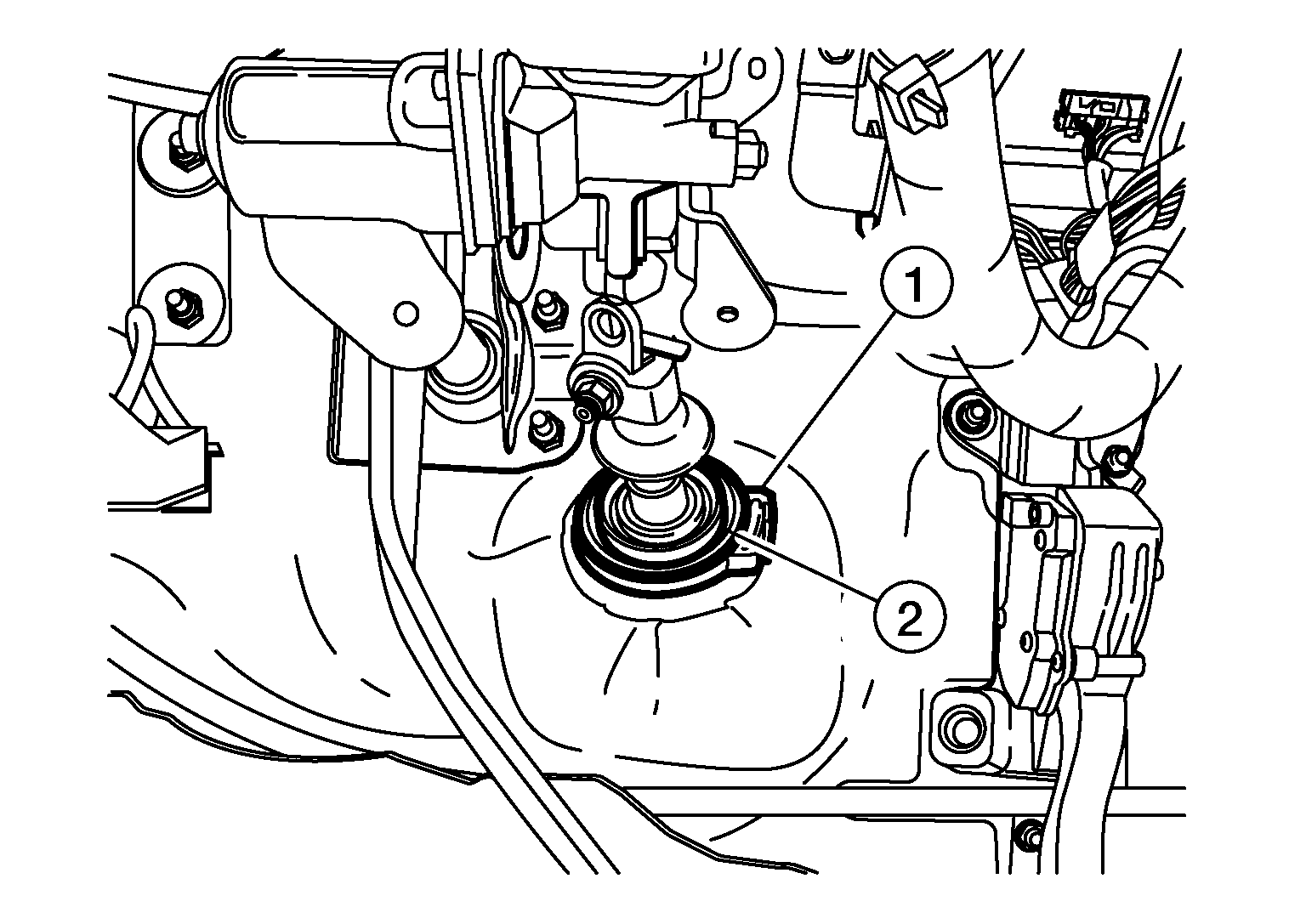

    GNSAWGIA0424Z-424Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not damage hole cover seal during removal. If seal is damaged, it must be replaced.
  11. Remove nuts and remove hole cover. Refer to Exploded View .
