Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shift selector handle (1).
    GNSDB122293Courtesy of NISSAN NORTH AMERICA, INC.
    1. Release the shift selector handle cover (2) using a suitable tool from the base of the shift selector handle (1).
    2. Remove the shift selector handle clip (A).
    3. Pull upward and remove the shift selector handle (1).
  2. Remove the shift selector finisher. Refer to Exploded View .

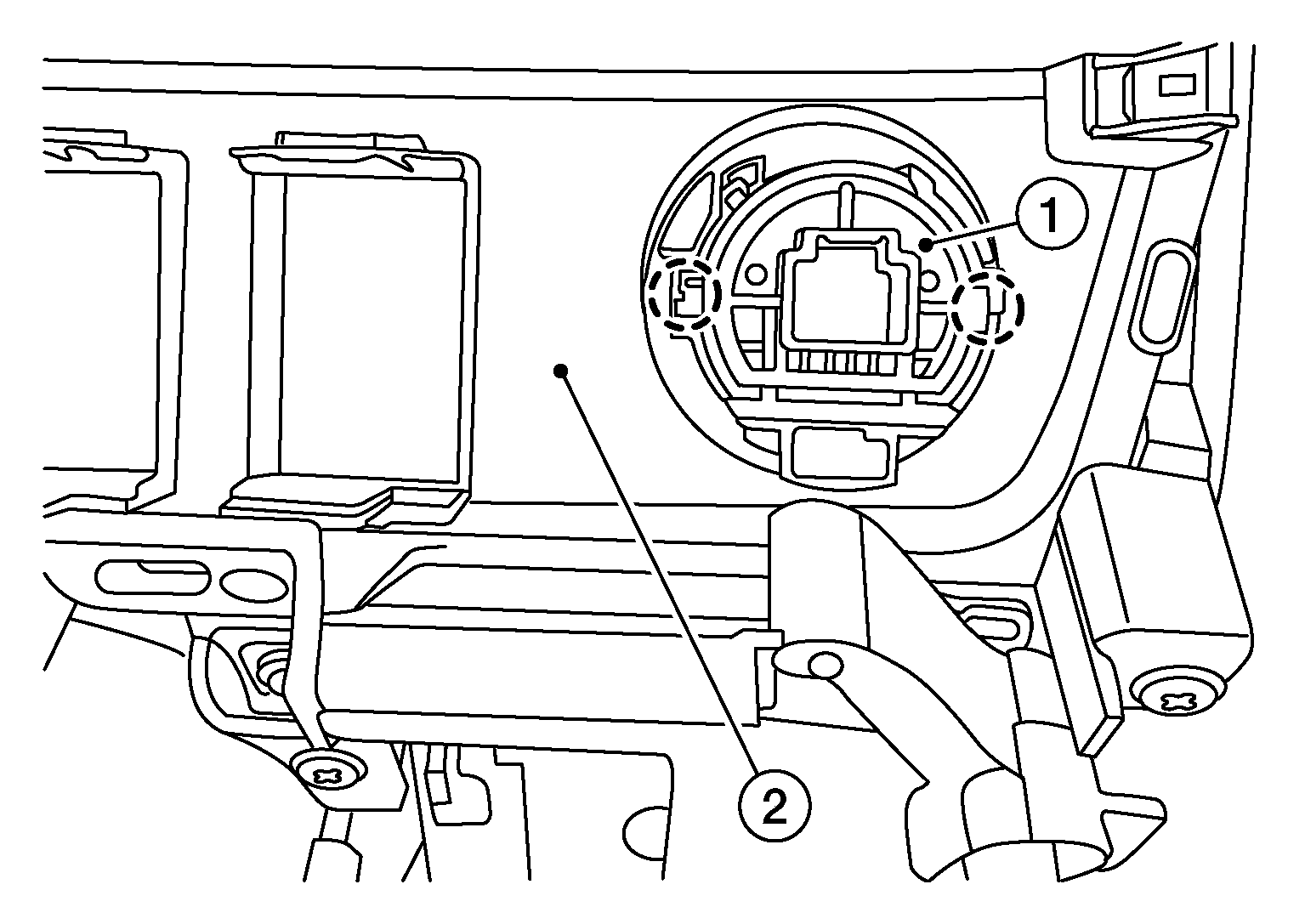

  3. Release the pawl on each side of NATS antenna amp (1) using suitable tool and remove from the shift selector finisher (2).
    GNSAWDIA1312Z-312Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

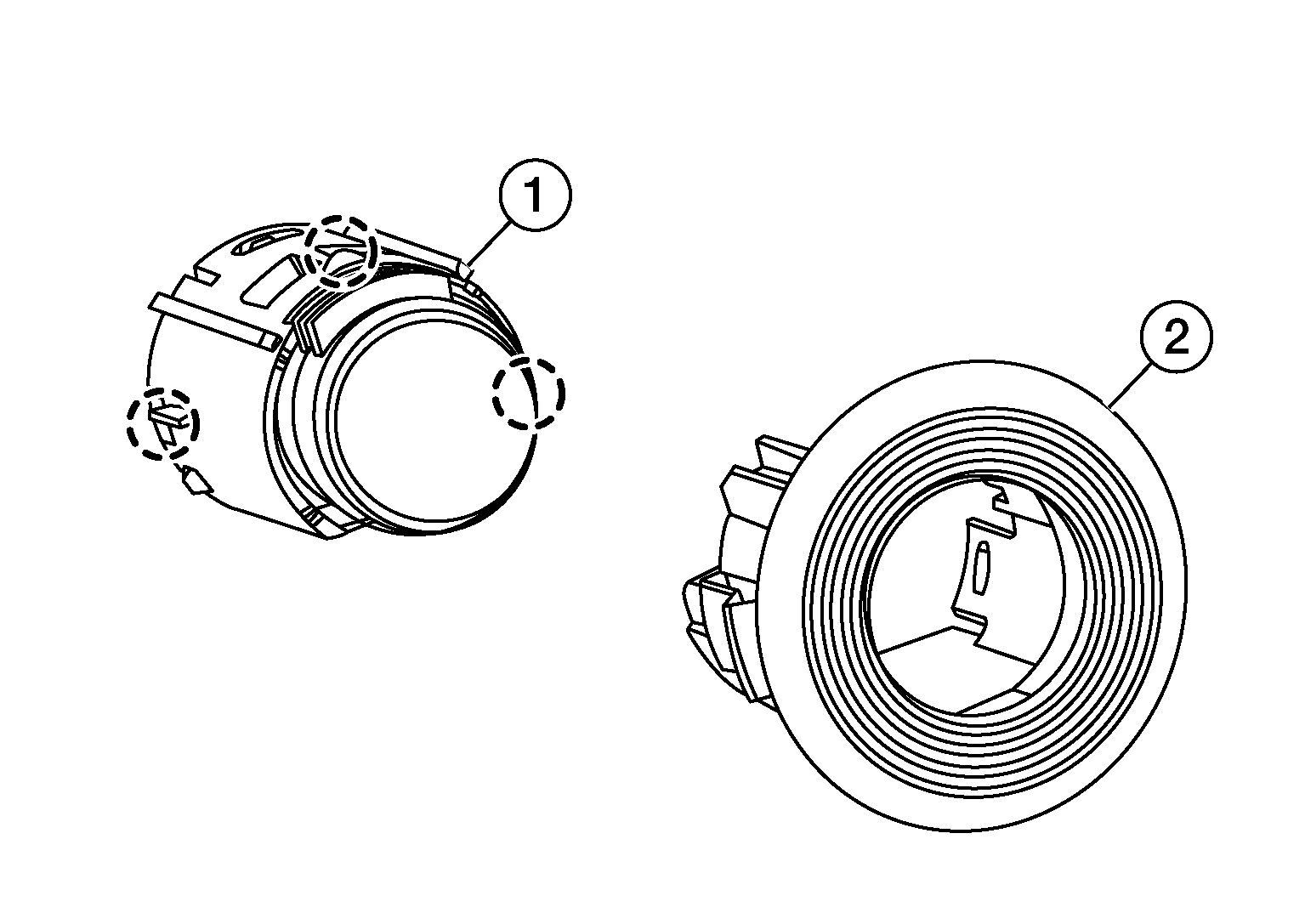

  4. Release the pawl on each side, using suitable tool, and remove the NATS antenna amp (2) from the push-button ignition switch (1).
    GNSAWKIA2911Z-911Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
