Inspection and Adjustment: Adjustment
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

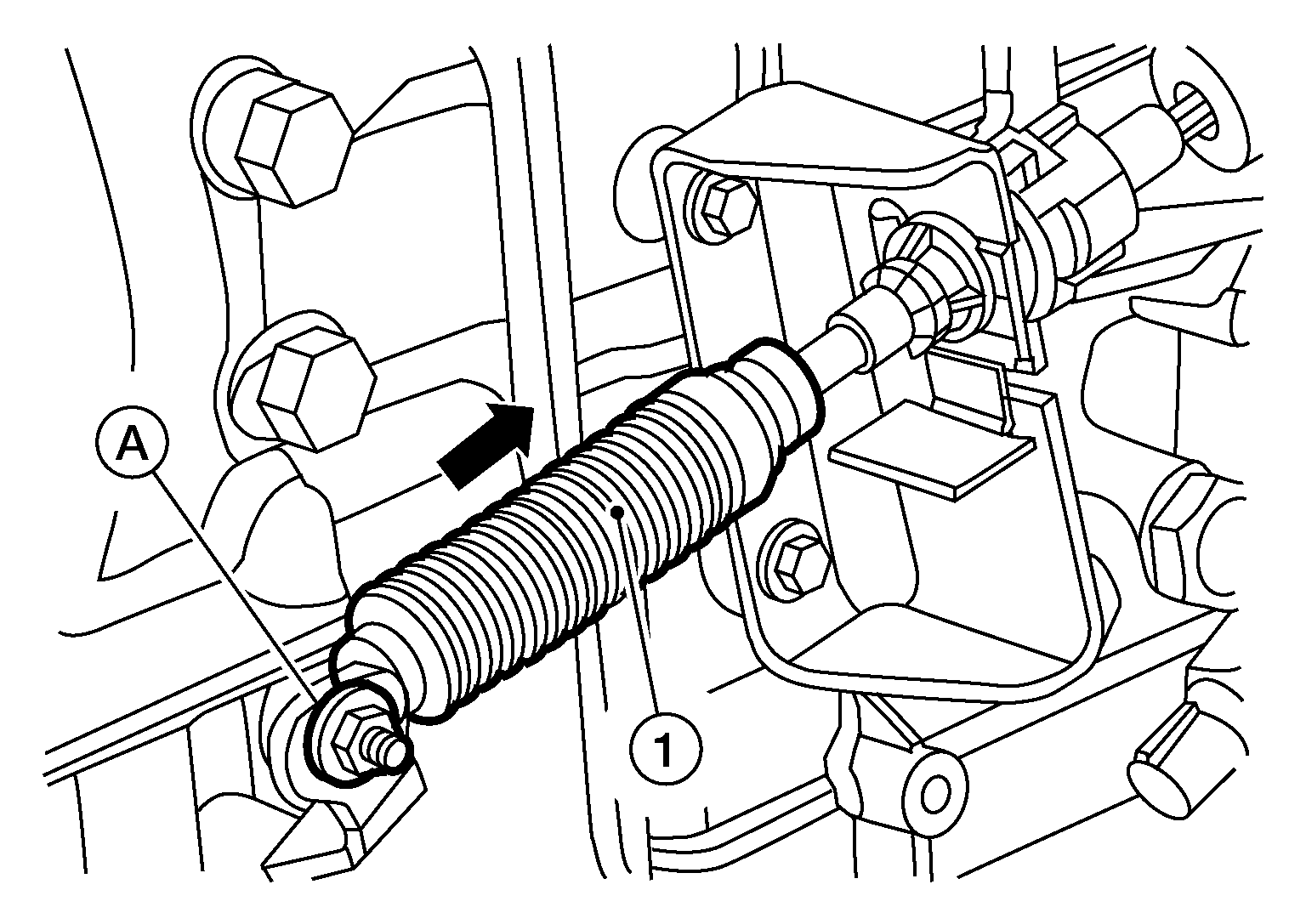

- Loosen nut (A).
- Place manual lever and selector lever in "P" position.
- Rotate wheel and carry out park locking.
- Pull control cable (1) toward the direction of arrow (
) and release hand from cable to leave it in a natural state and then temporarily tighten nut by hand.
NOTE: Pull control cable with a force of 9.8 N (approximately 1 kg, 2.2 lb). - Tighten nut to specified torque. Refer to Exploded View .
