Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

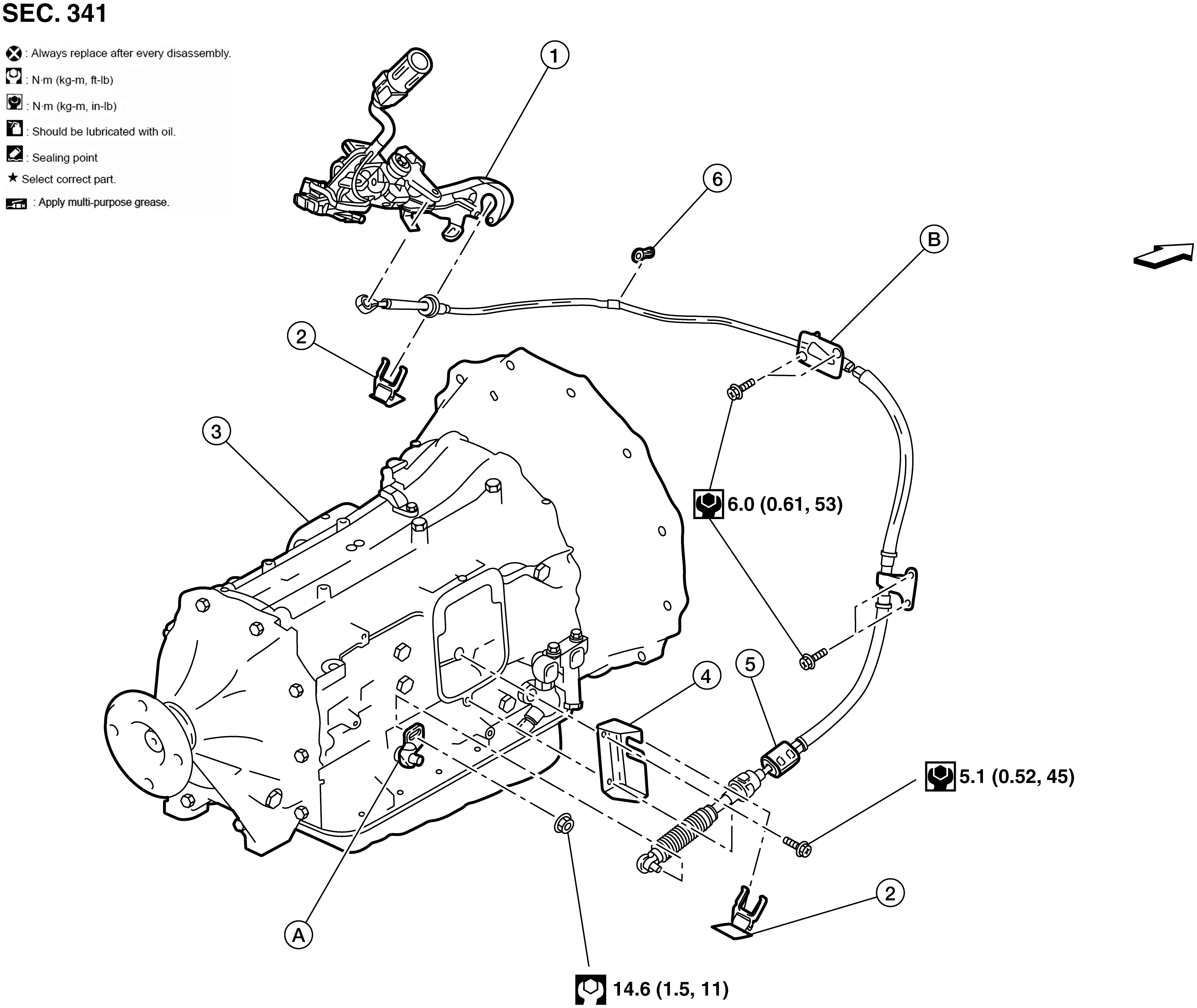

Fig 1: Control Cable With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/T shift selector	2.	Lock plate	3.	A/T assembly
4.	Bracket	5.	Control cable	6.	Clip
A.	Manual lever	B.	Grommet		Front
