Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

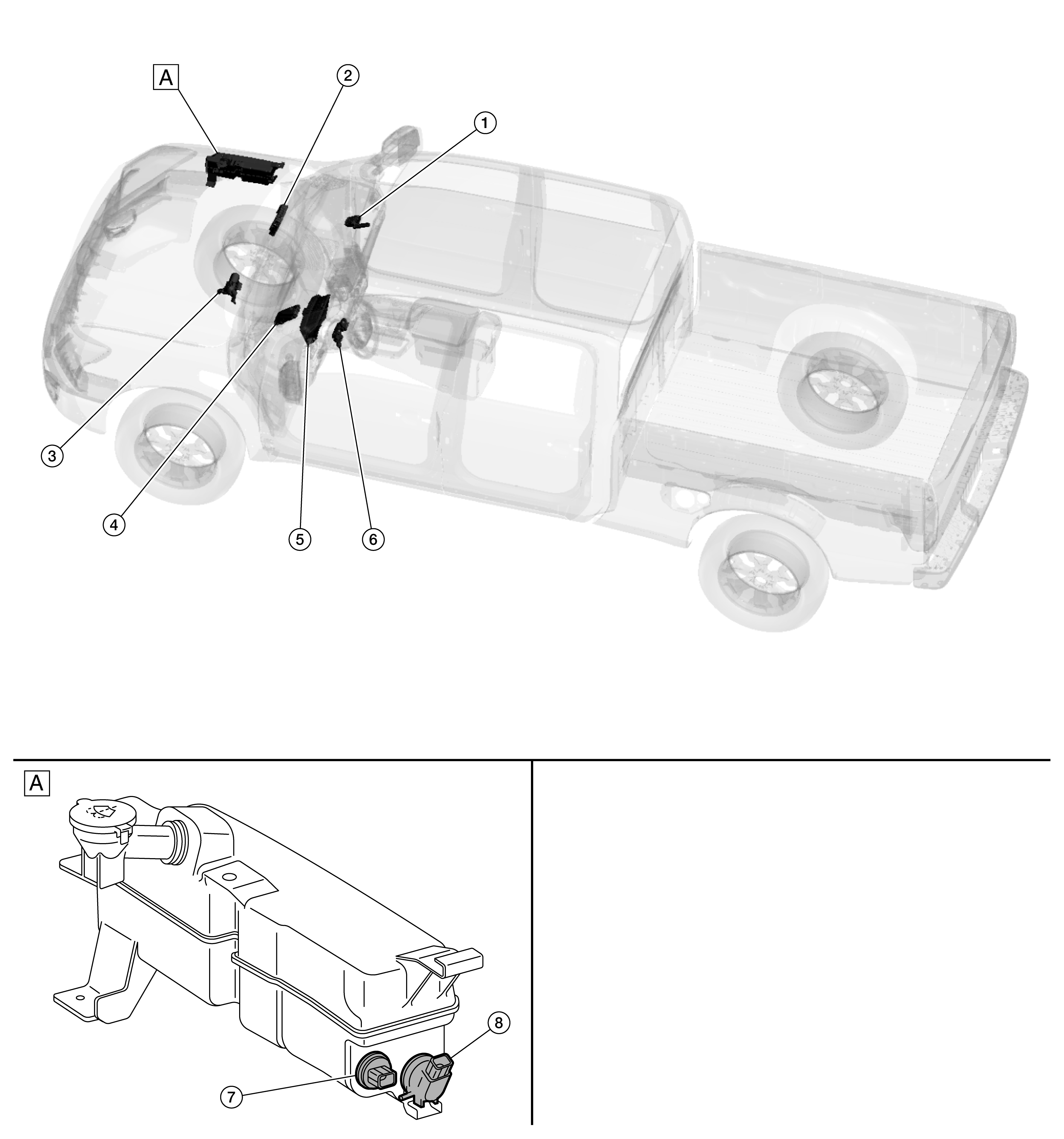

A.	View with washer tank removed from vehicle

No.	Component	Function
1.	Rain sensor*	Refer to Rain Sensor .
2.	IPDM E/R	Controls integrated relays according to the request (via CAN communication) from BCM. Performs the auto stop control of front wiper. Refer to Component Parts Location for detailed installation location.
3.	Front wiper motor	Refer to Front Wiper Motor .
4.	BCM	Judges each switch status by the combination switch (wiper and washer switch) reading function. Requests (via CAN communication) the front wiper relay and the front wiper HI/LO relay ON to IPDM E/R. Refer to Component Parts Location for detailed installation location.
5.	Combination meter	Transmits vehicle speed signal to BCM via CAN communication. Refer to Component Parts Location (Type A) or Component Parts Location (Type B) for detailed installation location.
6.	Combination switch (wiper and washer switch)	Combination switch (wiper and washer switch): Transmits the status of the combination switch (wiper and washer switch) to BCM. Washer switch: Refer to Component Parts Location .
7.	Washer fluid level switch	Refer to Washer Fluid Level Switch .
8.	Front washer motor	Refer to Front Washer Motor .

*: For vehicles equipped with rain sensing front wipers.
