With CUMMINS 5.0L

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

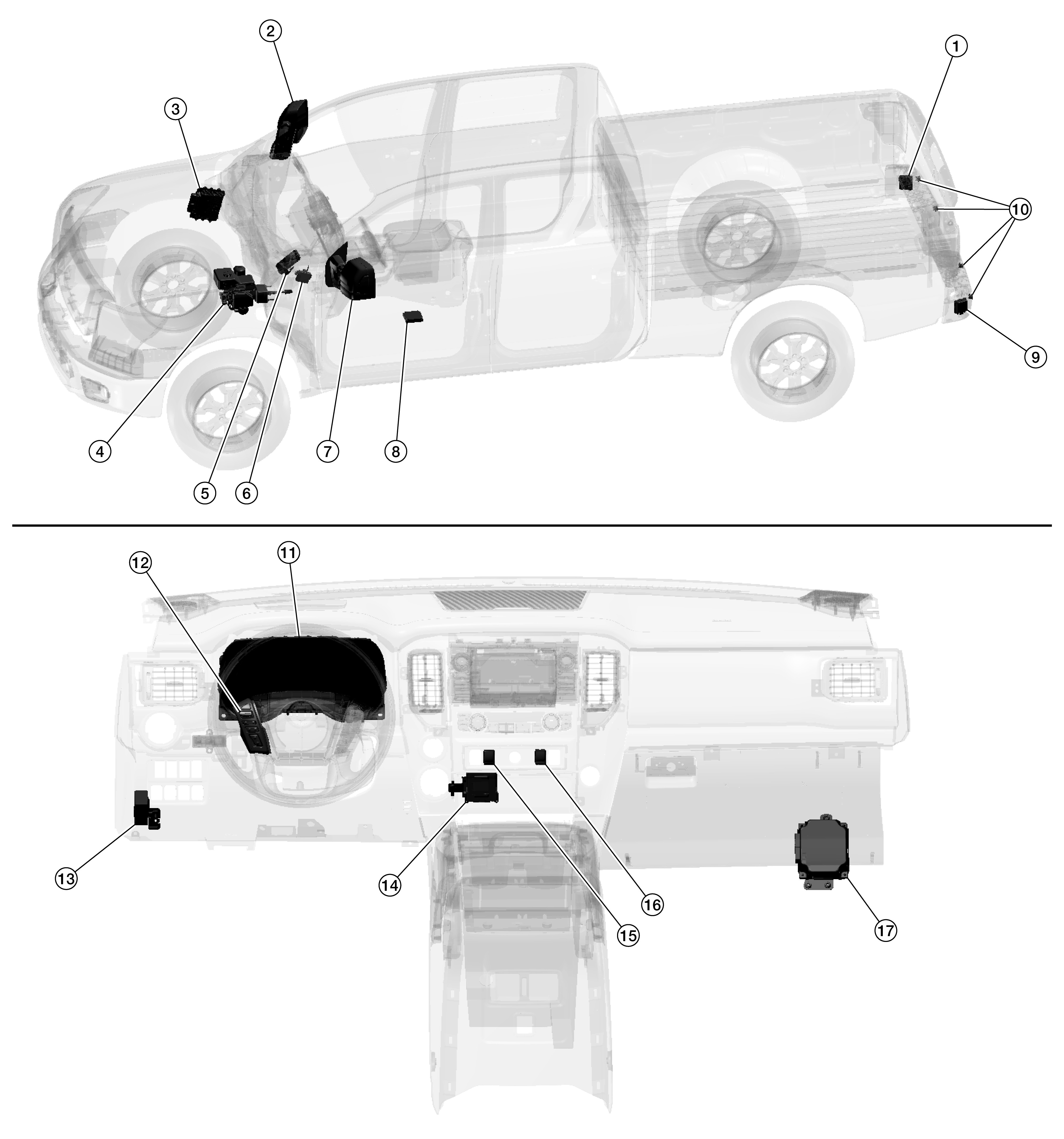

No.	Component	Description
1.	Side radar RH	Refer to Side Radar LH/RH .
2.	Door mirror RH (blind spot warning indicator)	Refer to Blind Spot Warning Indicator LH/RH .
3.	ECM	Transmits the engine speed signal to ADAS control unit via CAN communication. Refer to Component Parts Location for detailed installation location.
4.	ABS actuator and electric unit (control unit)	Transmits vehicle speed signal to ADAS control unit via CAN communication. Refer to Component Parts Location for detailed installation location.
5.	BCM	Transmits the turn indicator signal and position light request signal to ADAS control unit via CAN communication. Refer to Component Parts Location for detailed installation location.
6.	Sonar control unit	Refer to Sonar Control Unit .
7.	Door mirror LH (blind spot warning indicator)	Refer to Blind Spot Warning Indicator LH/RH .
8.	Around view monitor control unit	Refer to Around View Monitor Control Unit .
9.	Side radar LH	Refer to Side Radar LH/RH .
10.	Rear sonar sensors	Refer to System Description .
11.	Combination meter	Refer to Combination Meter .
12.	Steering switches	Transmits steering switch signal to combination meter for driver assistance system settings.
13.	Warning buzzer	Refer to Warning Buzzer .
14.	ADAS control unit	Refer to ADAS Control Unit .
15.	Sonar system OFF switch	Refer to Sonar System Off Switch .
16.	Warning system switch	Refer to Warning System Switch .
17.	TCM	TCM transmits the shift selector position signal to ADAS control unit via CAN communication. Refer to Component Parts Location for detailed installation location.
