Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH side shown, LH side similar.

Remove center console (if equipped). Refer to Removal and Installation .
Remove cup holder (if equipped). Refer to Exploded View .

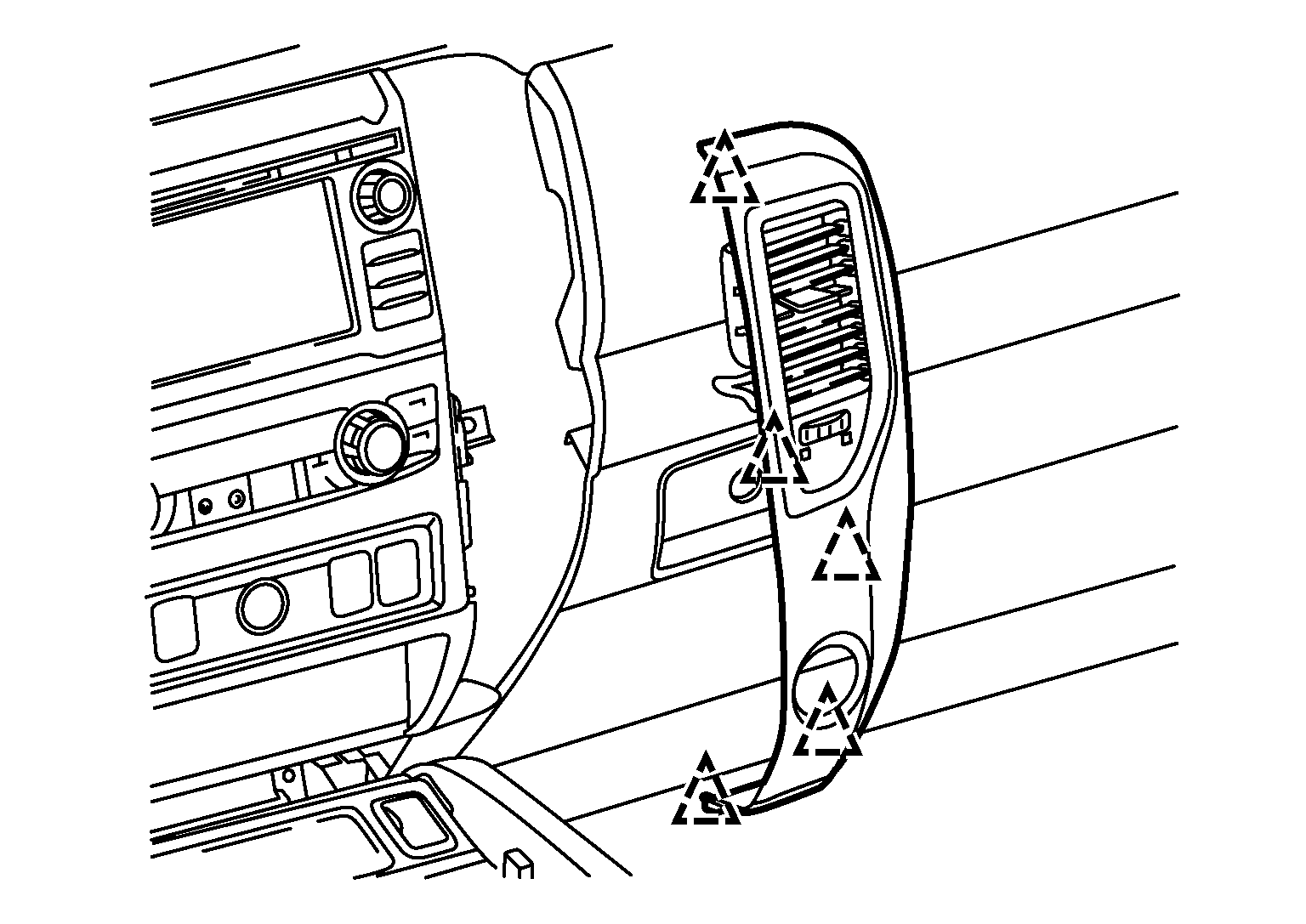

Release the cluster lid C finisher clips using a suitable tool.

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect all harness connectors and remove cluster lid C finisher.
NOTE: XD models shown, Non-XD models similar.

: Clip
