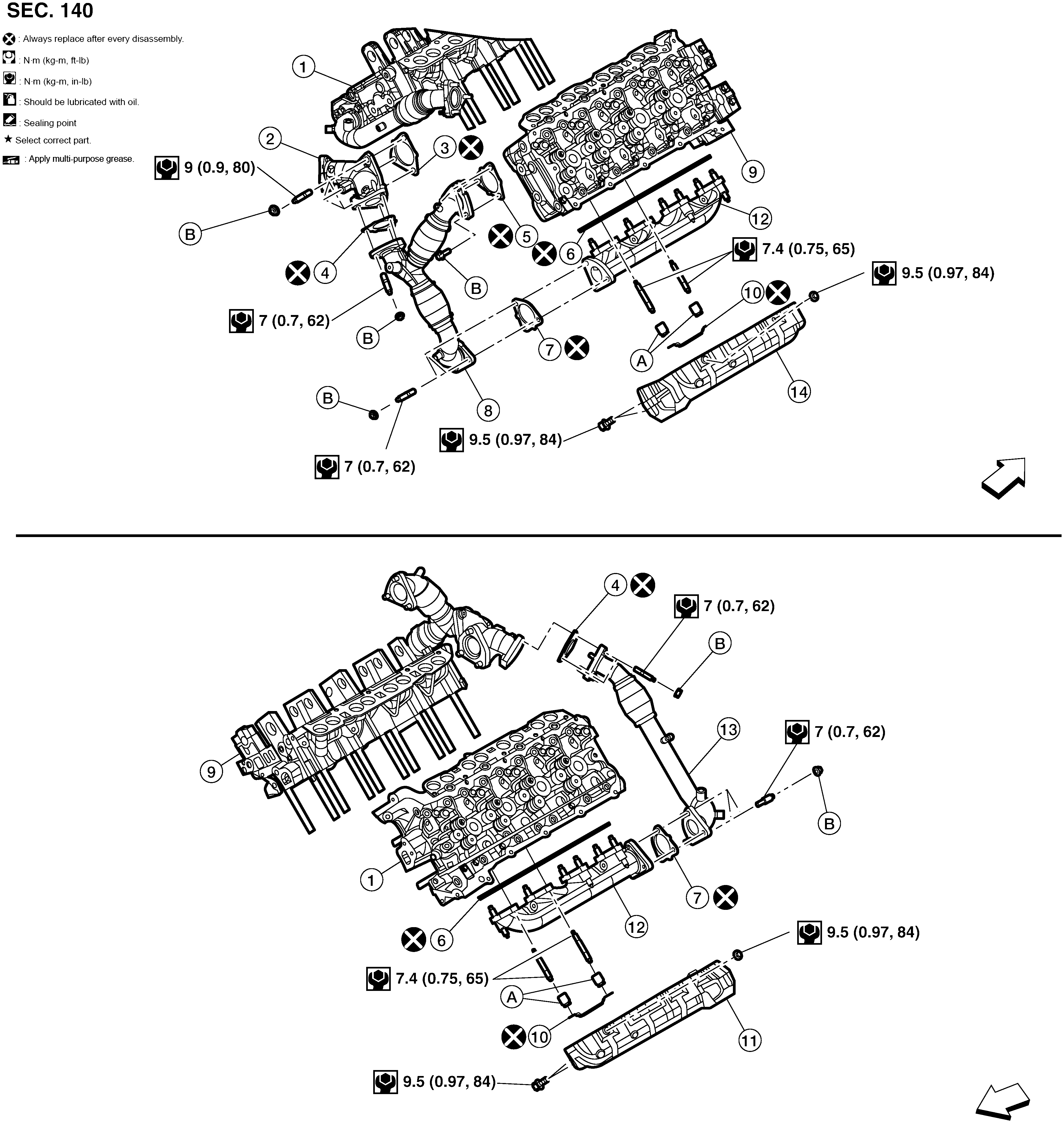

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Cylinder head (bank 2) |
2. |
Exhaust manifold collector pipe |
3. |
Exhaust manifold collector pipe gasket |
|
4. |
Transfer tube gasket B |
5. |
Transfer tube gasket A |
6. |
Exhaust manifold gasket |
|
7. |
Transfer tube gasket C |
8. |
Transfer tube (bank 1) |
9. |
Cylinder head (bank 1) |
|
10. |
Lock plate |
11. |
Exhaust manifold heat shield (bank 2) |
12. |
Exhaust manifold |
|
13. |
Transfer tube (bank 2) |
14. |
Exhaust manifold heat shield (bank 1) |
A. |
Refer to INSTALLATION |
|
B. |
Refer to Removal and Installation . |
|
Front |
