Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
NOTE:
- If any studs were removed, install and tighten them prior to tube assembly.
- Apply a coating of anti-seize to studs, nuts and bolts before installation.
- Hand-tighten nuts and bolts during installation.

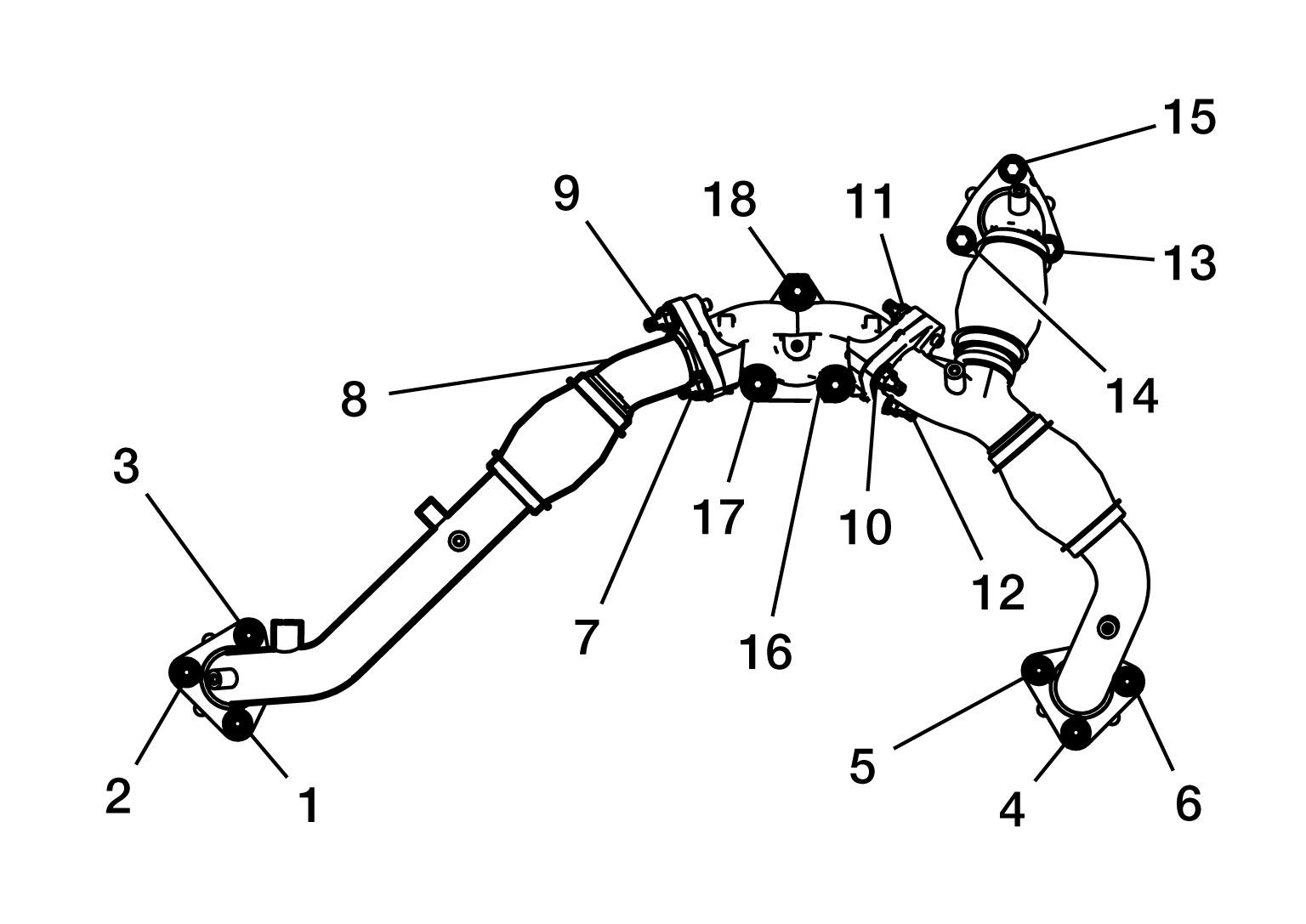

- Tighten the nuts and bolts to specified torque in the sequence shown.
Nuts 1 through 12
: 40 N.m (4.1 kg-m, 30 ft-lb)
Bolts 13 through 15
: 23 N.m (2.3 kg-m, 17 ft-lb)
Nuts 16 through 18
: 46 N.m (4.7 kg-m, 34 ft-lb)
