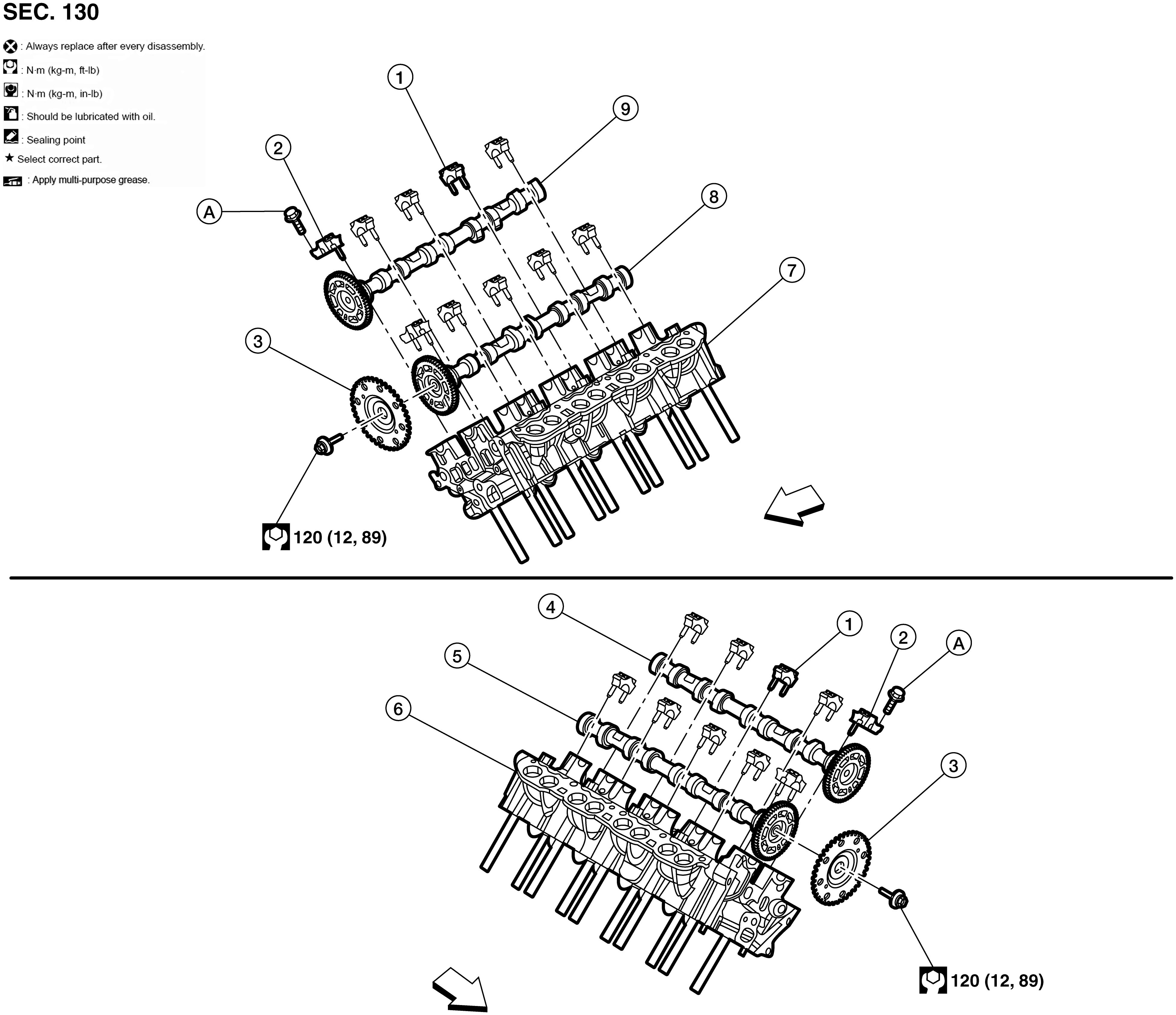

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Camshaft cap |
2. |
Camshaft cap |
3. |
Camshaft sprocket |
|
4. |
Exhaust camshaft (bank 2) |
5. |
Intake camshaft (bank 2) |
6. |
Cylinder head (bank 2) |
|
7. |
Cylinder head (bank 1) |
8. |
Intake camshaft (bank 1) |
9. |
Exhaust camshaft (bank 1) |
|
A. |
Refer to INSTALLATION |
|
Front |
CAUTION:
The camshaft caps are machined with the cylinder head and must be replaced as an assembly.
