Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rocker arms (2) and hydraulic lash adjusters (1) if removed.
    GNSALBIA2393Z-393Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

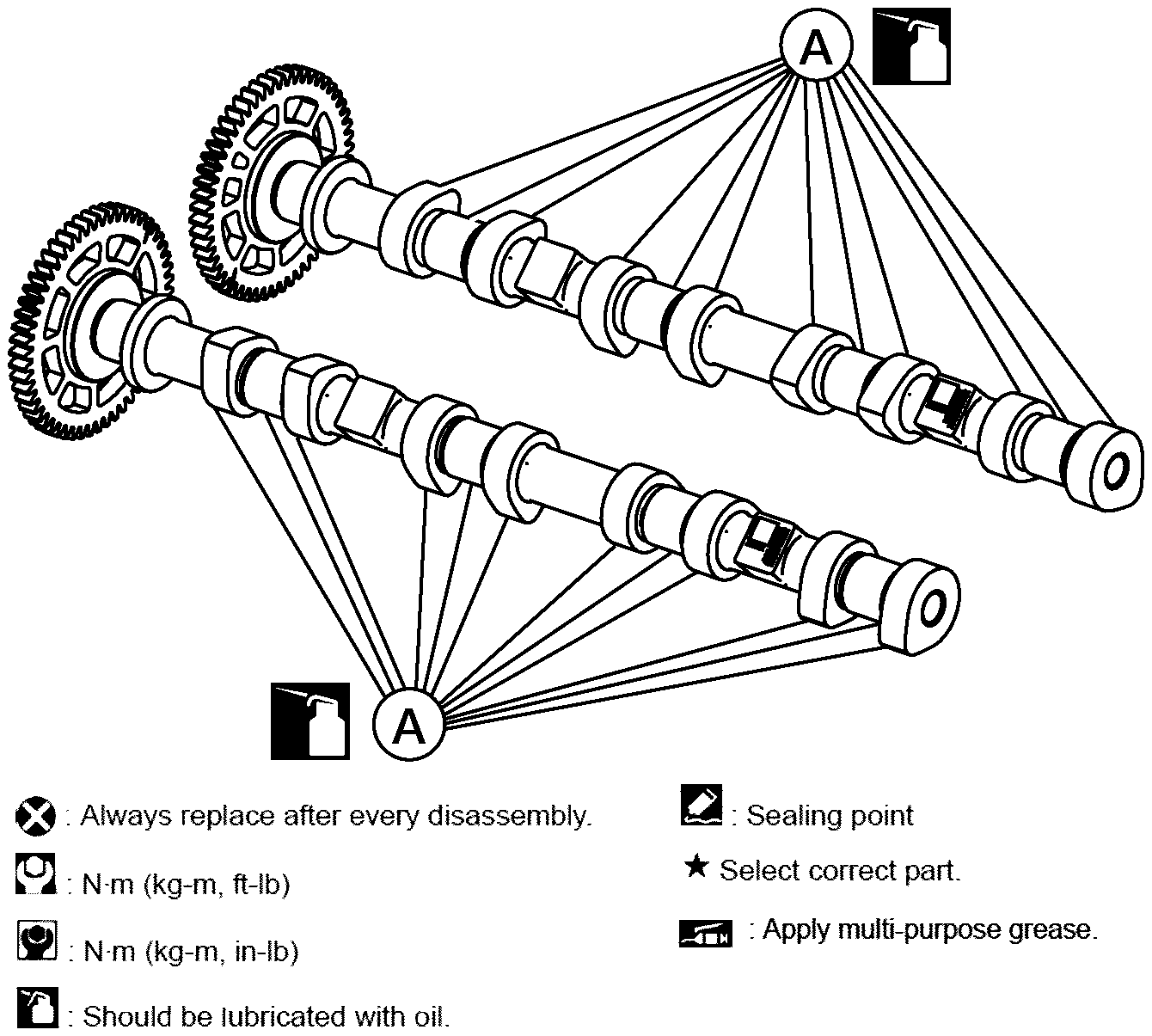

  2. Lubricate all camshaft lobes and journals (A) with clean engine oil or assembly lubricant.
    GNSALBIA2401Z-401Courtesy of NISSAN NORTH AMERICA, INC.

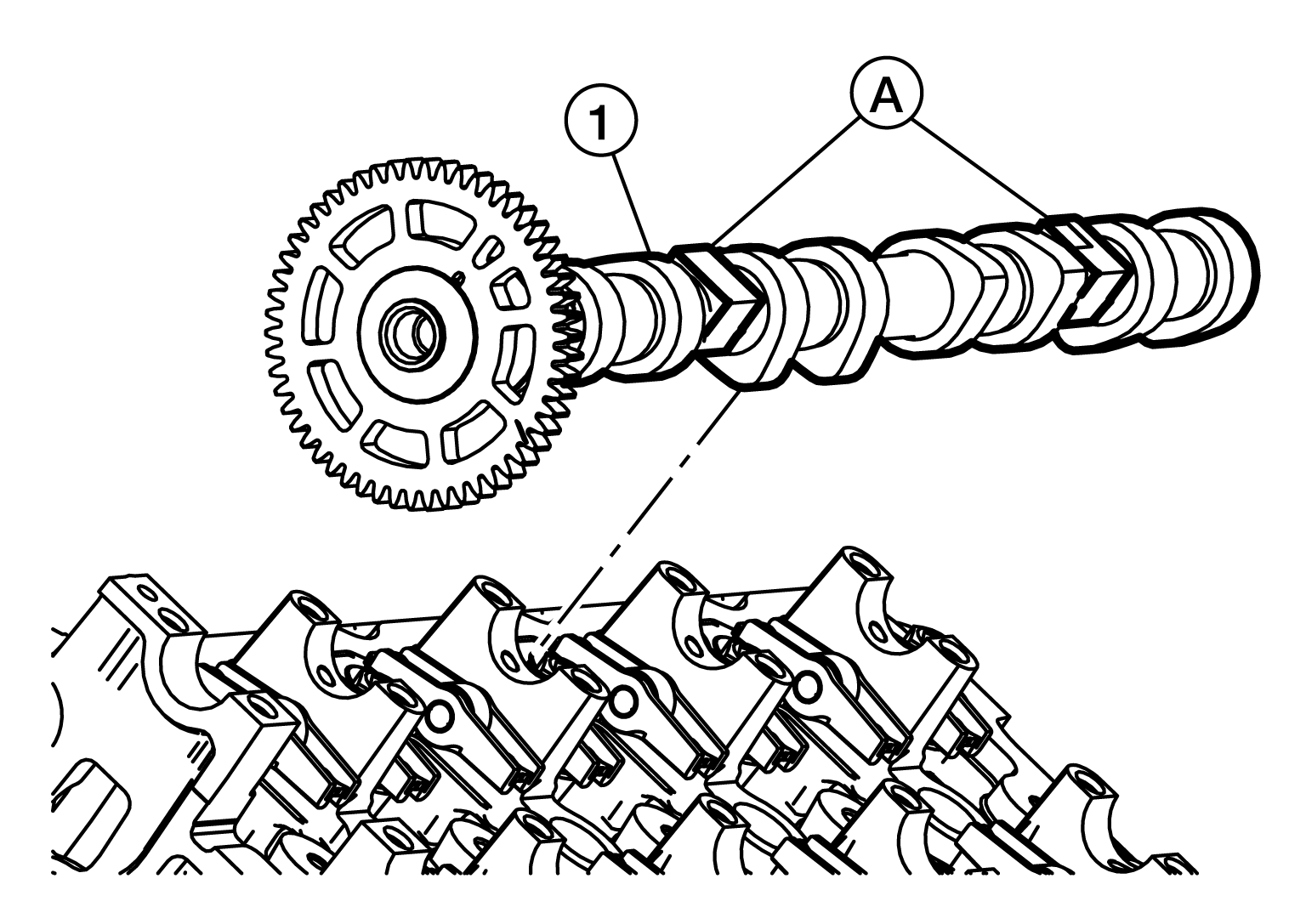

  3. Install the intake camshaft (1) first with the camshaft flats (A) facing upward in plane with the rocker cover sealing surface.
    GNSALBIA2402Z-402Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: The valve springs will prevent the flats from being perfectly horizontal. This is acceptable. The camshaft orientation should be approximately the same as when it was removed.

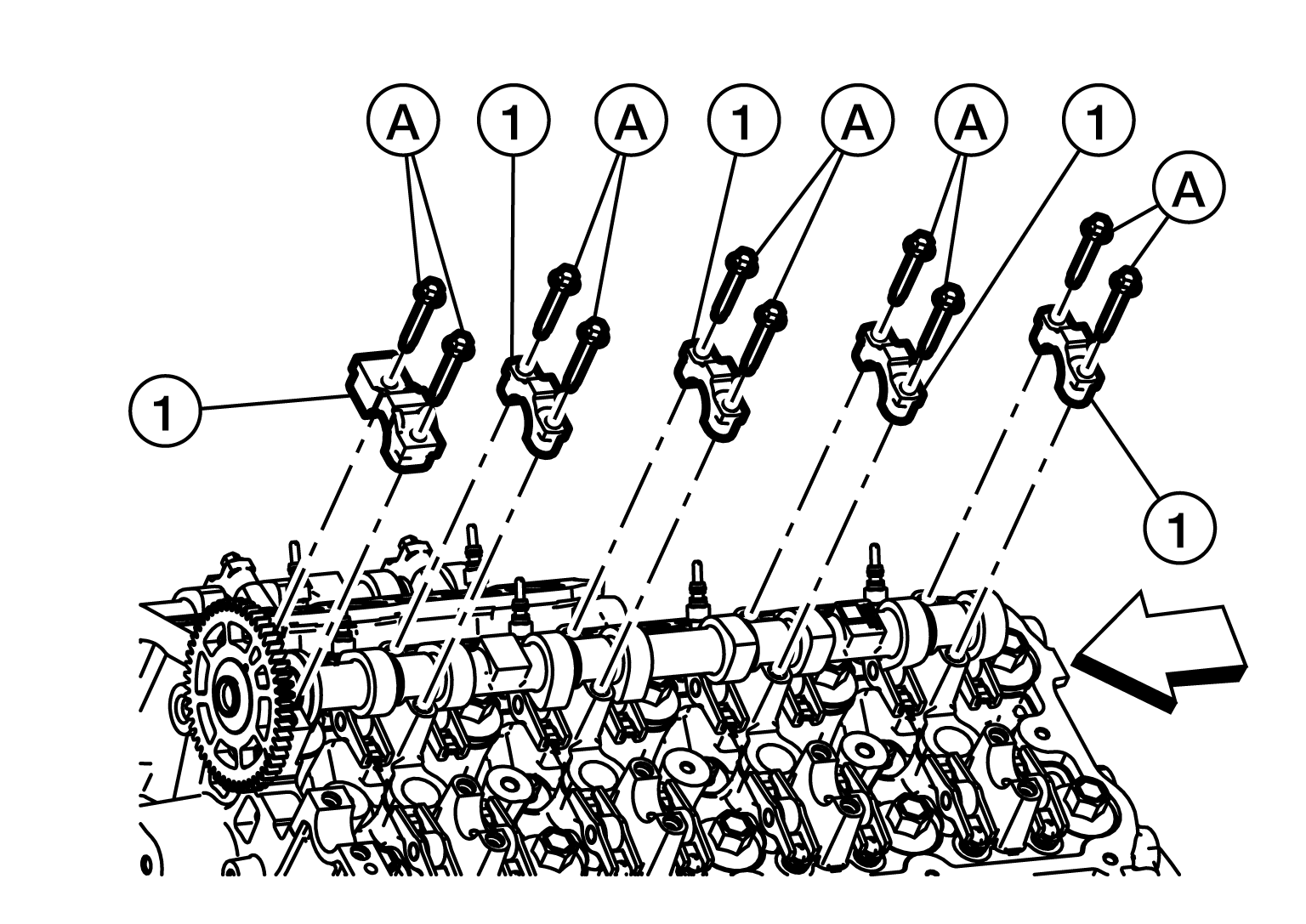

  4. Install the camshaft caps (1) and finger-tighten the bolts (A).
    GNSALBIA2403Z-403Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

    NOTE: The camshaft caps are labeled with their position and have an arrow that points toward the front.

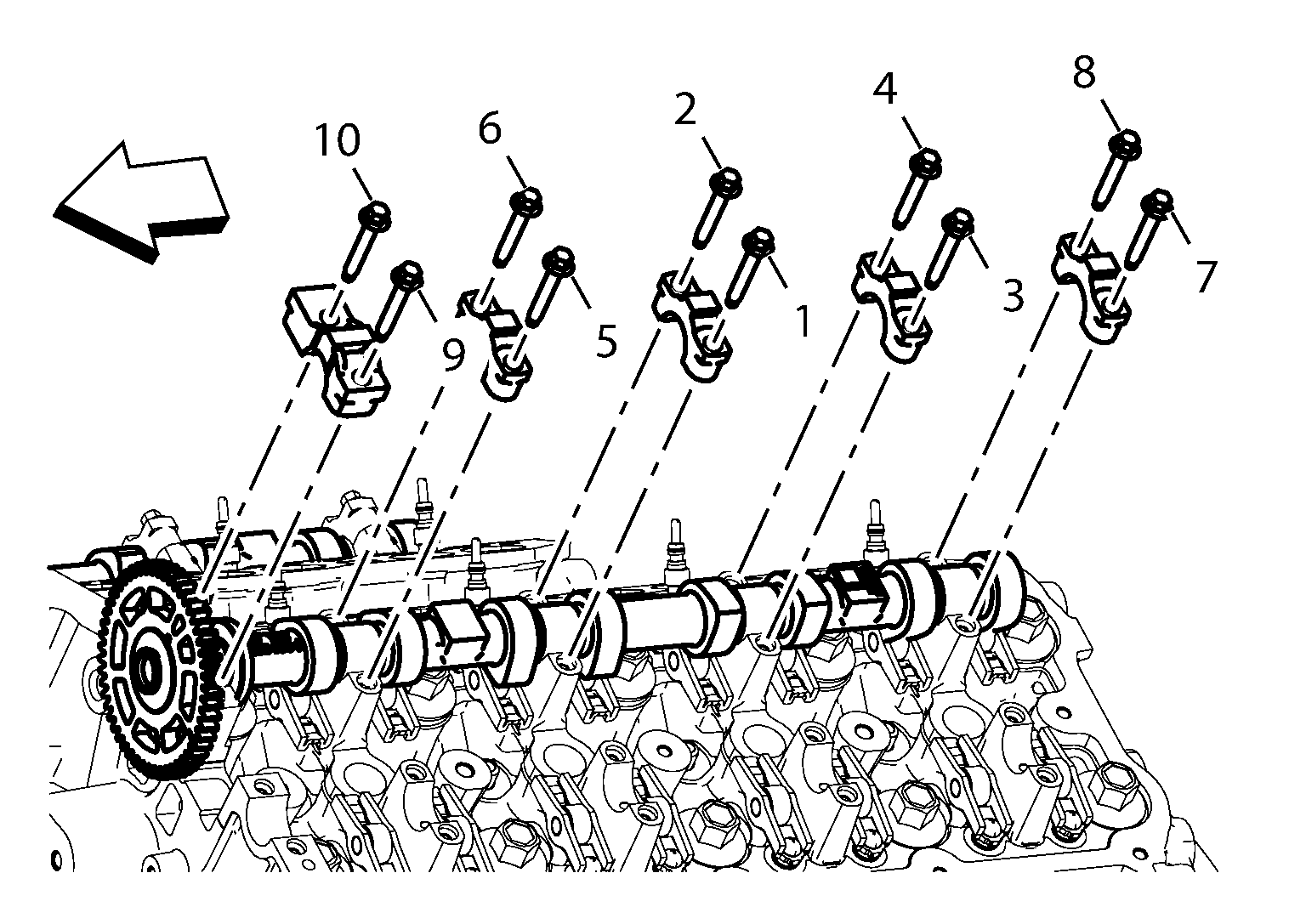

  5. Tighten bolts to specification in the sequence shown.
    GNSALBIA2792Z-792Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: Make sure the rockers are seated correctly.

    Camshaft cap bolts

    : 11 N.m (1.1 kg-m, 8 ft-lb)

    SYMBOL

    : Front

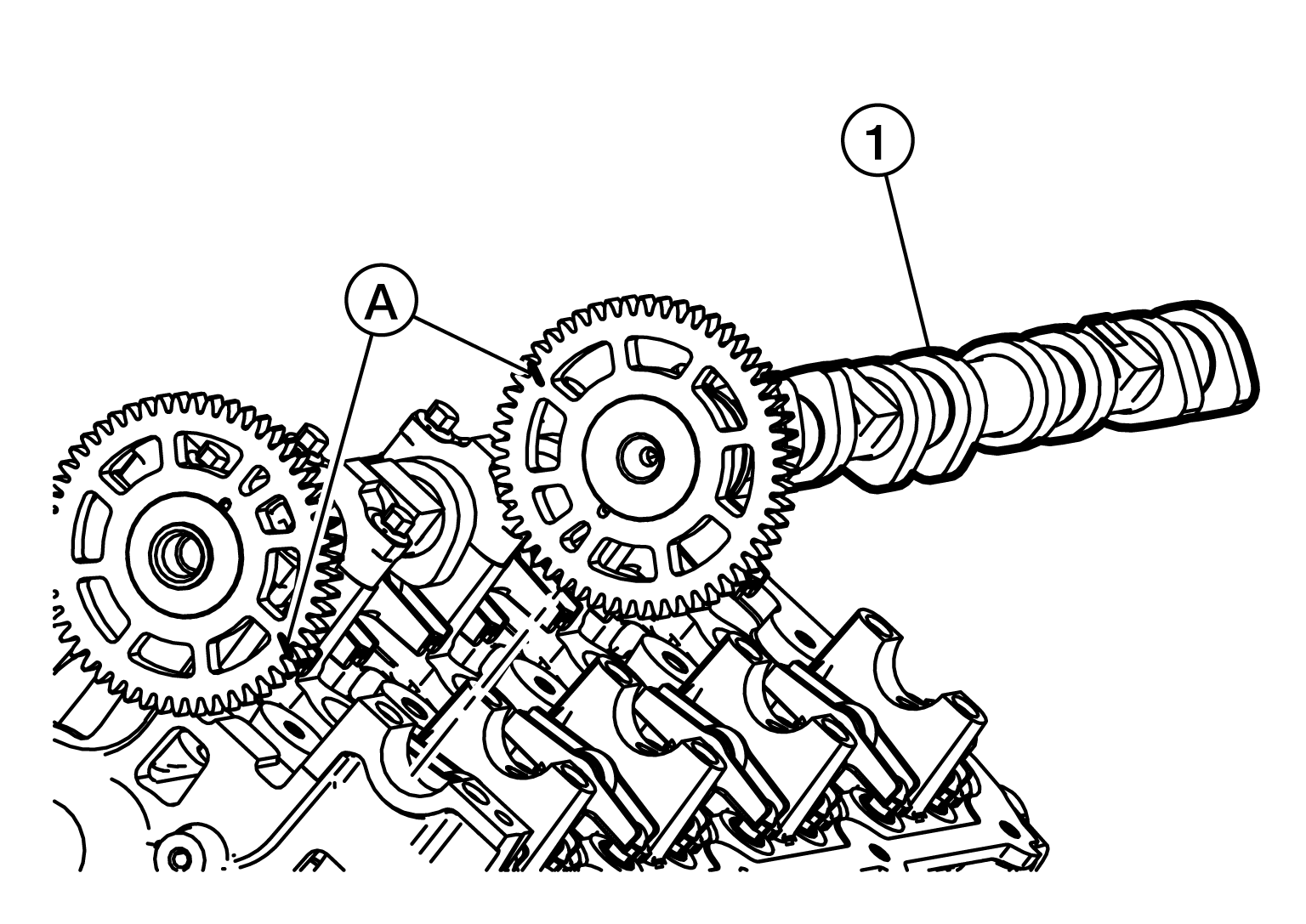

  6. Install the exhaust camshaft (1). While holding the exhaust camshaft, engage the camshaft gears so that the timing marks (A) will align once the camshaft is placed in the camshaft towers. Carefully roll the exhaust camshaft in place while maintaining gear contact.
    GNSALBIA2404Z-404Courtesy of NISSAN NORTH AMERICA, INC.

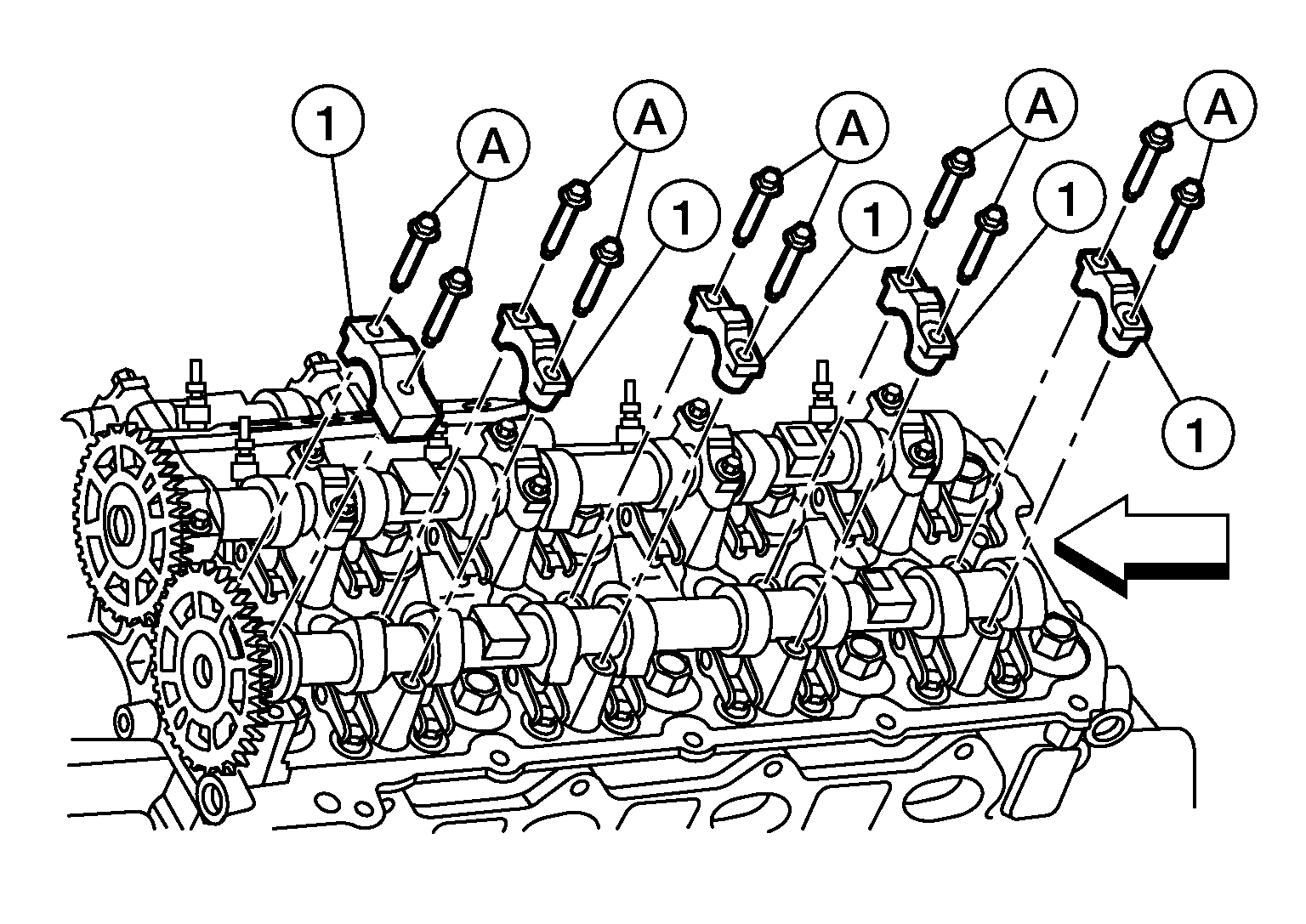

  7. Install the camshaft caps (1) and finger-tighten the bolts (A).
    GNSALBIA2405Z-405Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: The camshaft caps are labeled with their position and have an arrow that points toward the front.

    SYMBOL

    : Front

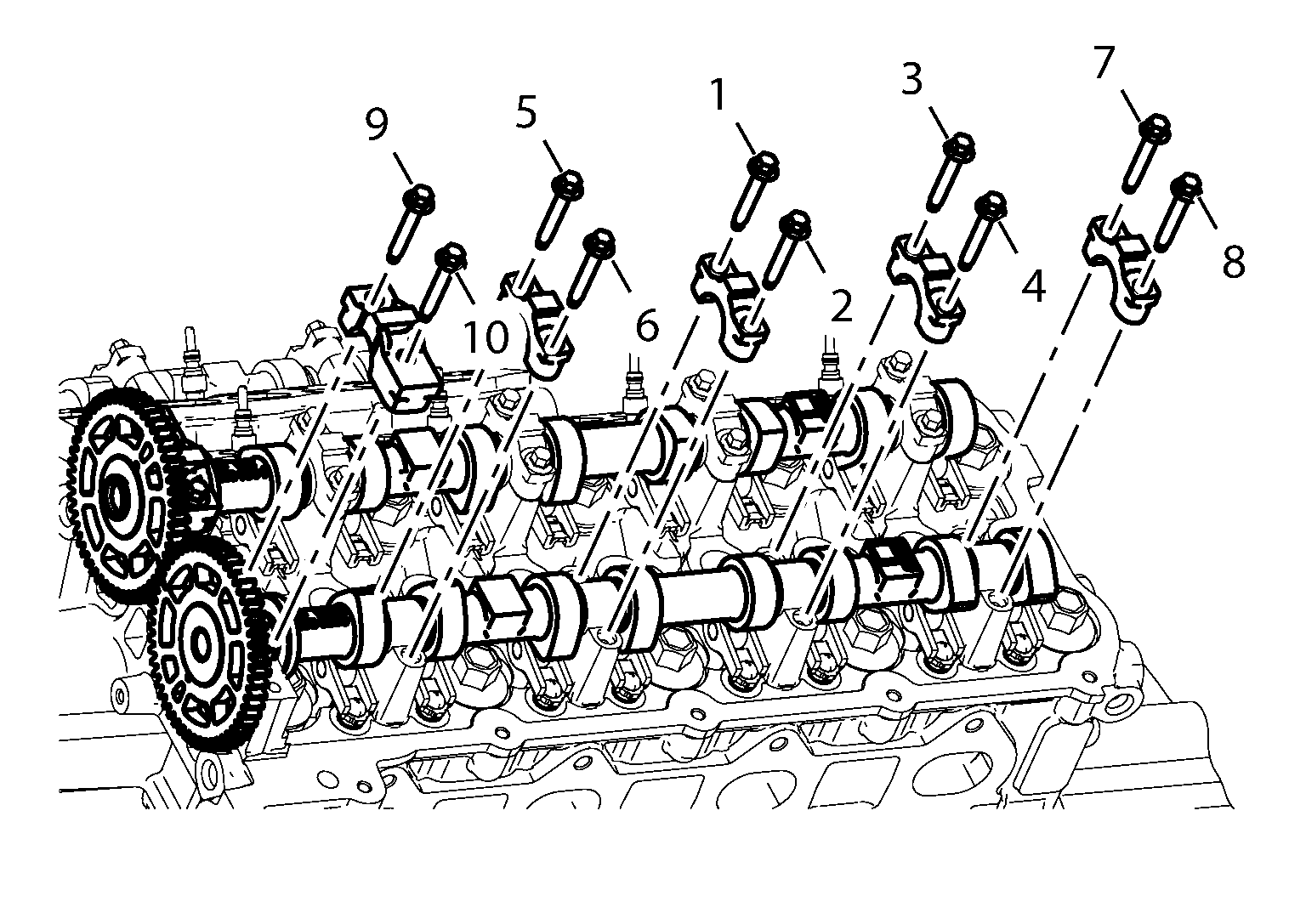

  8. Tighten bolts to specification in the sequence shown.
    GNSALBIA2793Z-793Courtesy of NISSAN NORTH AMERICA, INC.

    Camshaft cap bolts

    : 11 N.m (1.1 kg-m, 8 ft-lb)

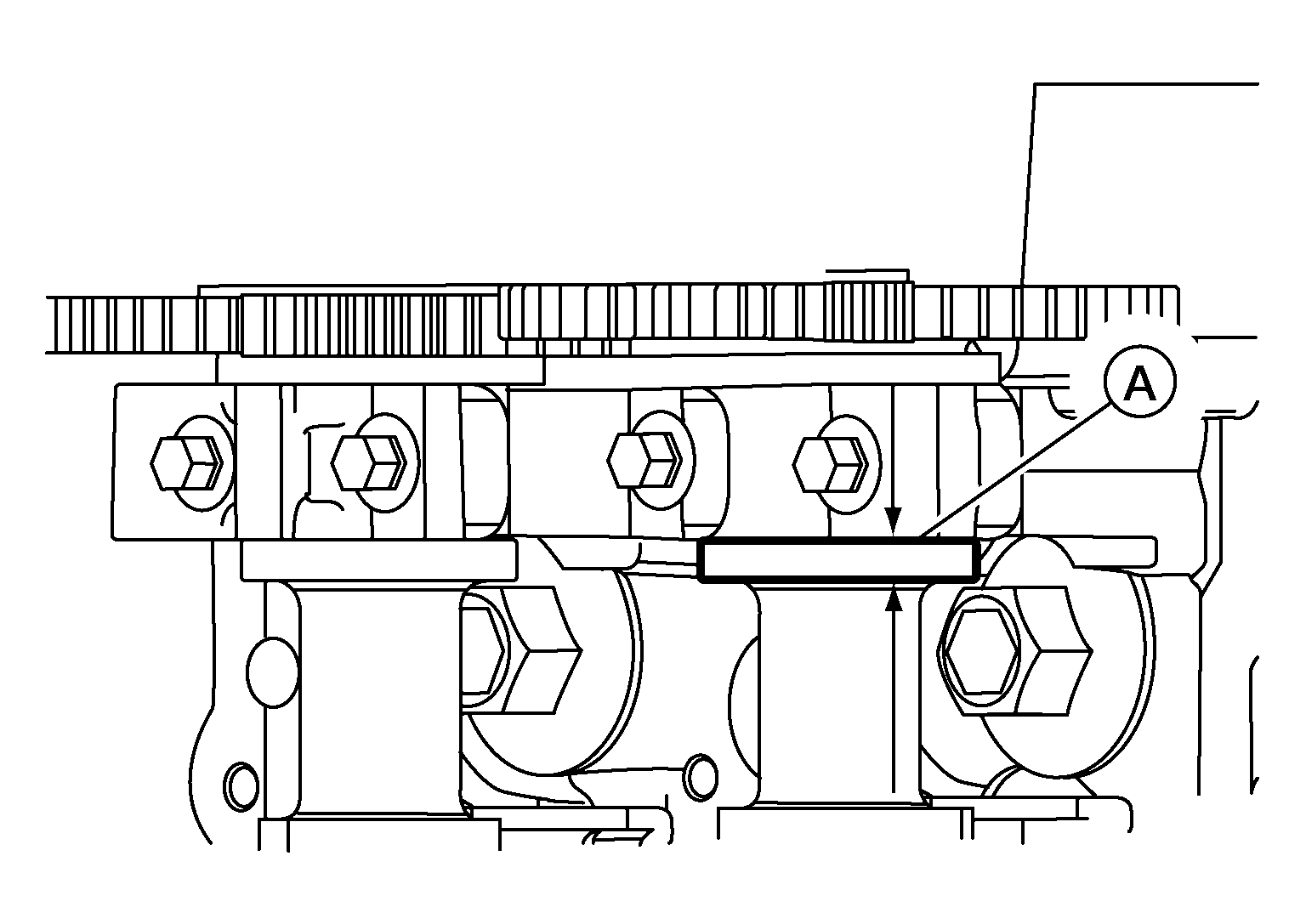

  9. Measure camshaft end clearance (A) on each camshaft.
    GNSAWBIA2891Z-891Courtesy of NISSAN NORTH AMERICA, INC.

    Camshaft end play

    : Refer to CAMSHAFT .

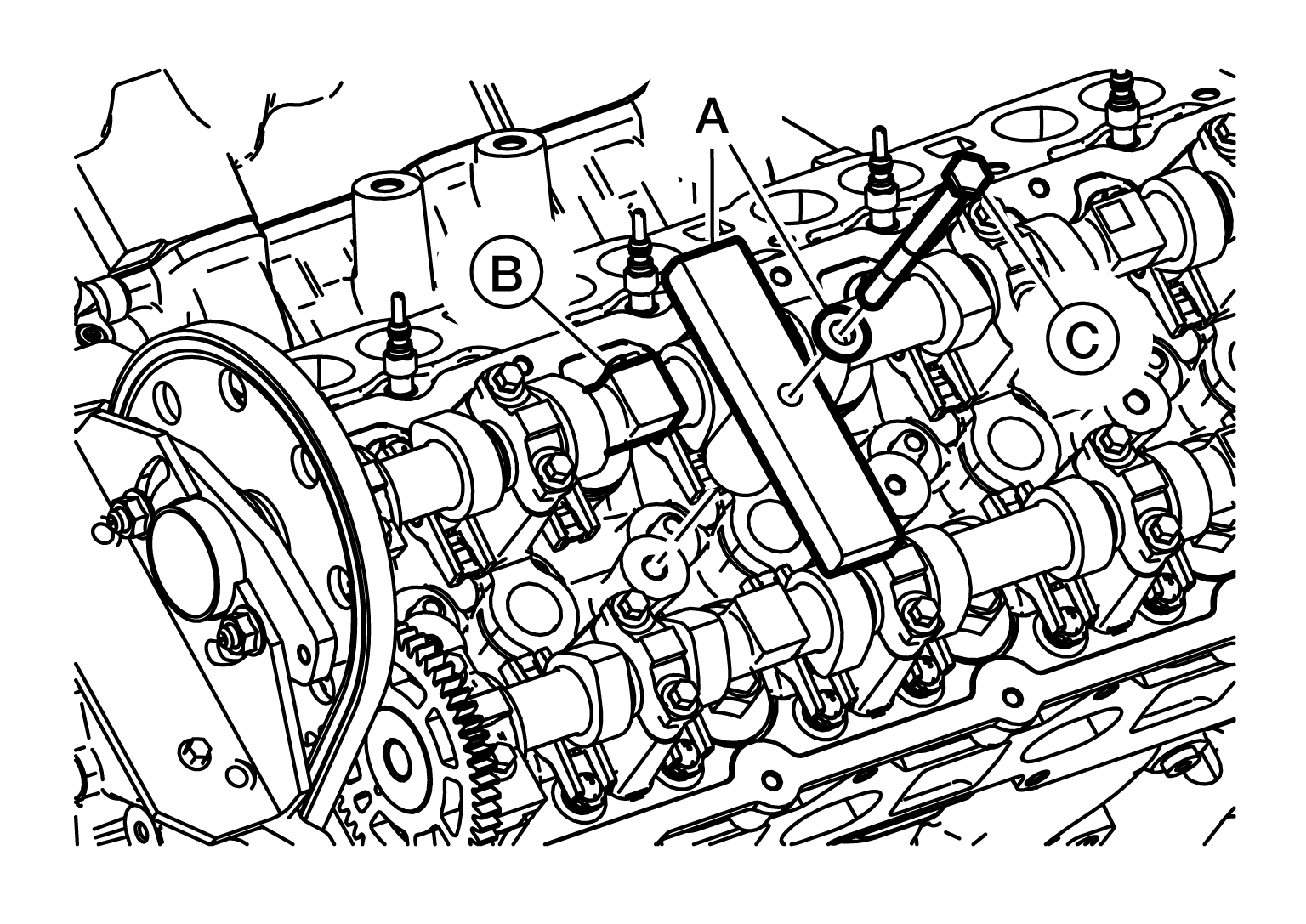

  10. Install Tool (A) on the front flats (B) of the intake and exhaust camshafts.Tighten bolt (C) to secure tool in position.
    GNSALBIA2408Z-408Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: To avoid possible camshaft damage, ensure the camshaft and camshaft sprocket are properly seated before tightening the camshaft sprocket bolt.
    NOTE:
    • It may be necessary to rotate the camshafts slightly with a suitable tool on the rear camshaft flats to get the front camshaft flats to align with the Tool.
    • Verify that the timing marks on the camshaft gears are still aligned.

    Tool

    :-- - (J-54409)

    Bolt (C)

    : 25 N.m (2.6 kg-m, 18 ft-lb)

  11. Install and tighten the camshaft sprocket bolt and remove the Tools.
    NOTE: Rotate the engine clockwise two full revolutions to make sure the valve train and camshaft sprocket are operating properly.

    Camshaft sprocket bolt

    : 120 N.m (12 kg-m, 89 ft-lb)

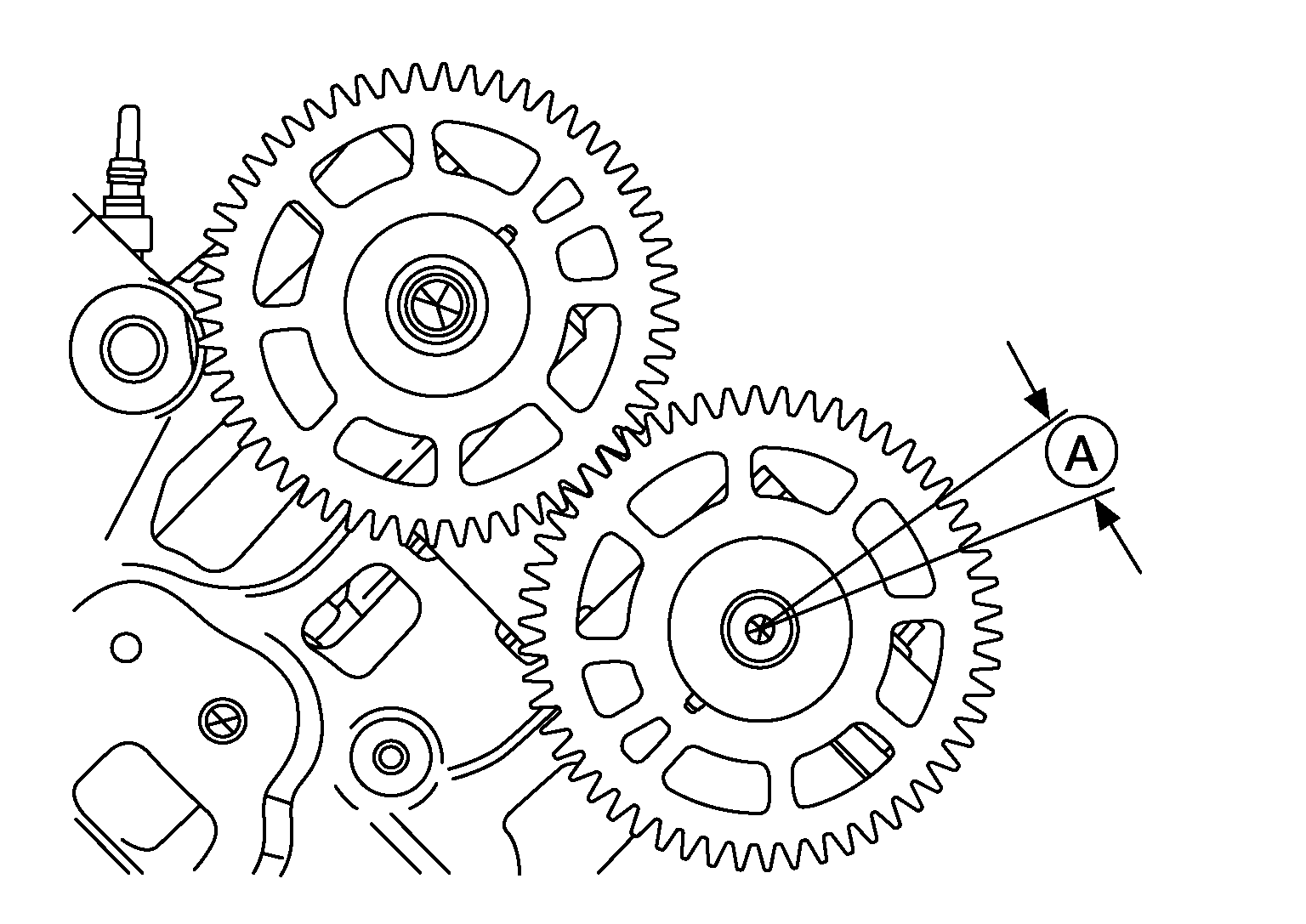

  12. Measure gear backlash (A) using a suitable tool on each camshaft gear.
    GNSALBIA2407Z-407Courtesy of NISSAN NORTH AMERICA, INC.

    Camshaft gear backlash

    : Refer to CAMSHAFT .

    NOTE:
    • Camshaft gear backlash should be measured with the camshaft sprocket torqued to the camshaft. This will allow the intake camshaft to be held in place while backlash is measured on the exhaust camshaft gear.
    • The camshaft sprocket retaining tool base is made of steel and is a suitable location for attaching the suitable tool.
  13. Installation of the remaining components is in the reverse order of removal.
    NOTE:
    • If the Camshaft was removed or replaced, in CONSULT click the Timing button on the Fuel or Timing System Table Reset in Work Support. Refer to CONSULT Function .
    • Operate the engine and check for leaks.
