Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine assembly. Refer to Removal and Installation .
  2. Remove the front cover. Refer to Removal and Installation .
  3. Remove the oil pan. Refer to Exploded View .

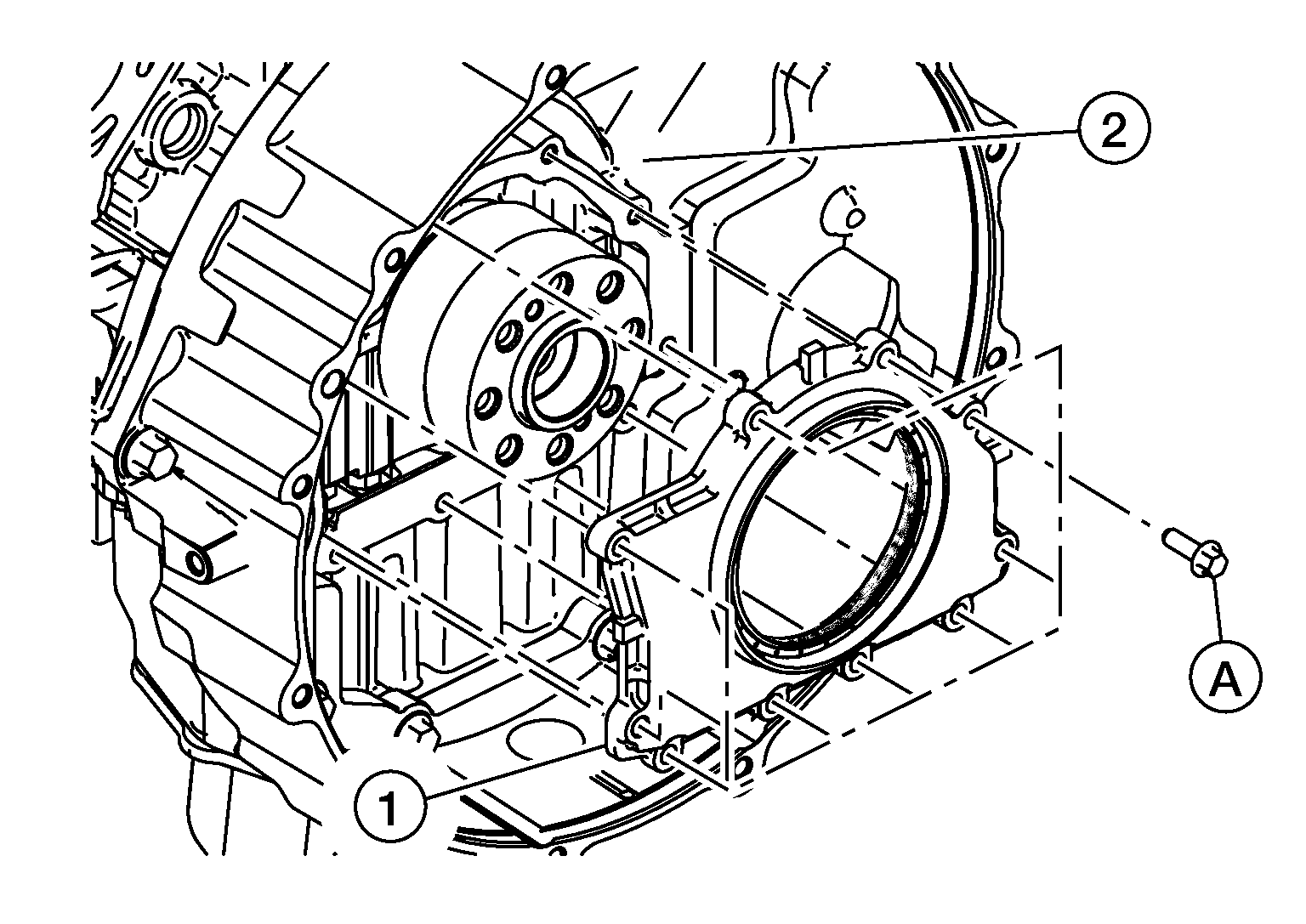

  4. Remove the bolts (A) from the rear seal carrier (1) and remove the rear seal carrier from the engine block (2).
    GNSALBIA2487Z-487Courtesy of NISSAN NORTH AMERICA, INC.

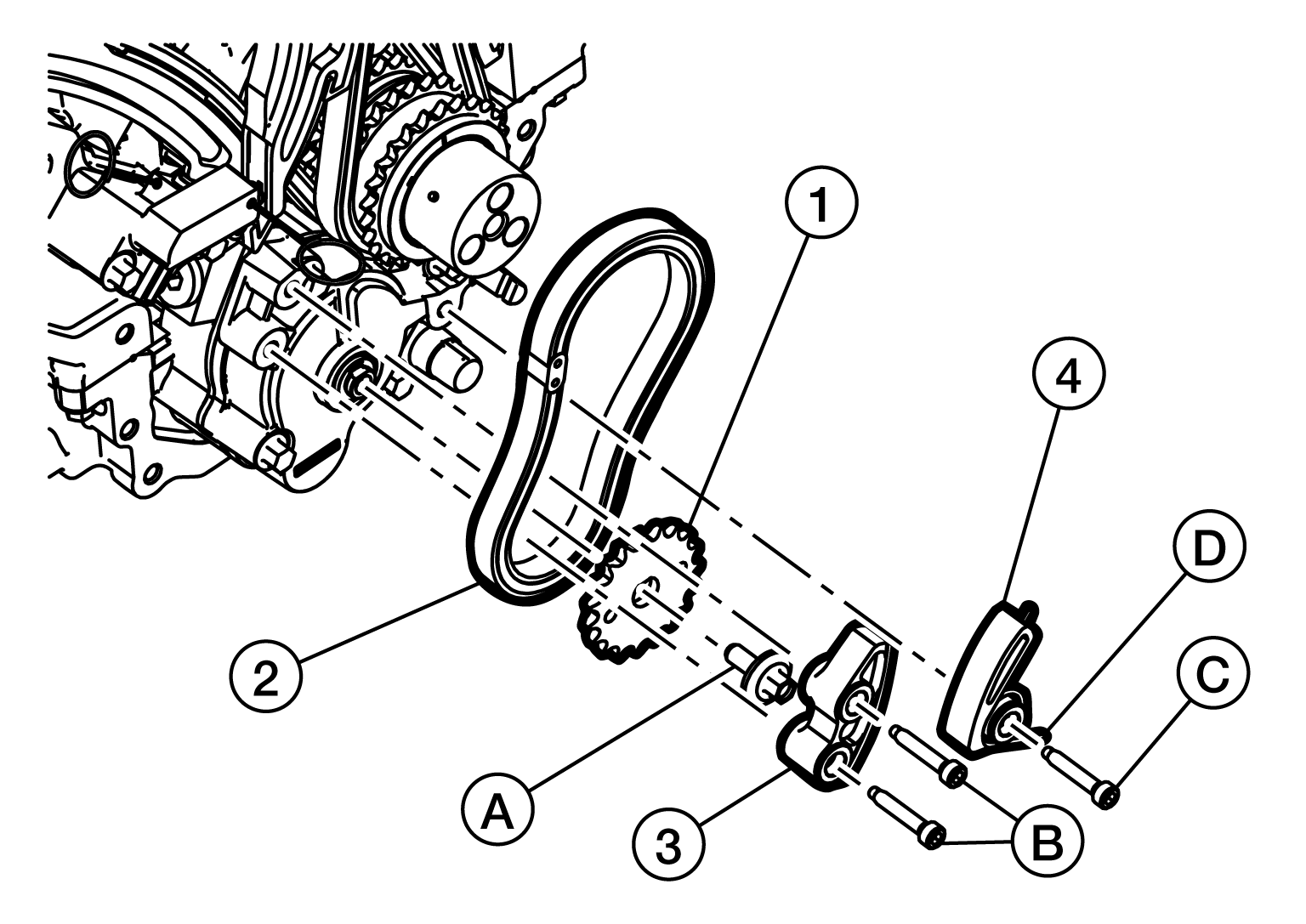

  5. Release the oil pump slack guide spring (D). Remove the bolt (C) and slack guide (4).
    GNSALBIA2796Z-796Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove bolts (B) and remove the oil pump tension guide (3).
  7. Hold the oil pump sprocket with a suitable tool and remove the oil pump sprocket bolt (A).
  8. Remove the oil pump sprocket (1) and oil pump drive chain (2).

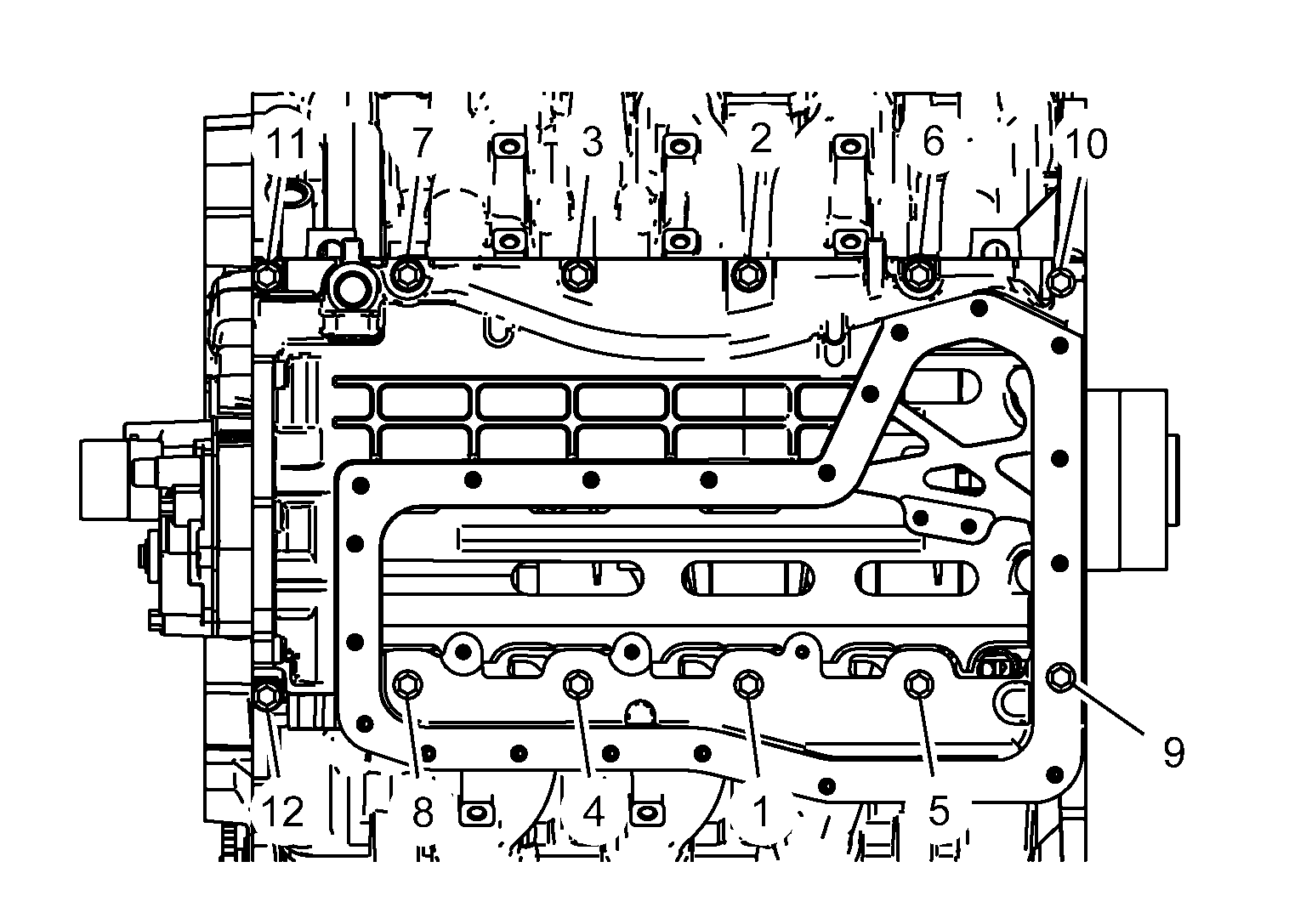

  9. Loosen and remove the block stiffening plate bolts in the reverse sequence as shown.
    GNSALBIA2498Z-498Courtesy of NISSAN NORTH AMERICA, INC.
  10. Remove the block stiffening plate from the cylinder block.
