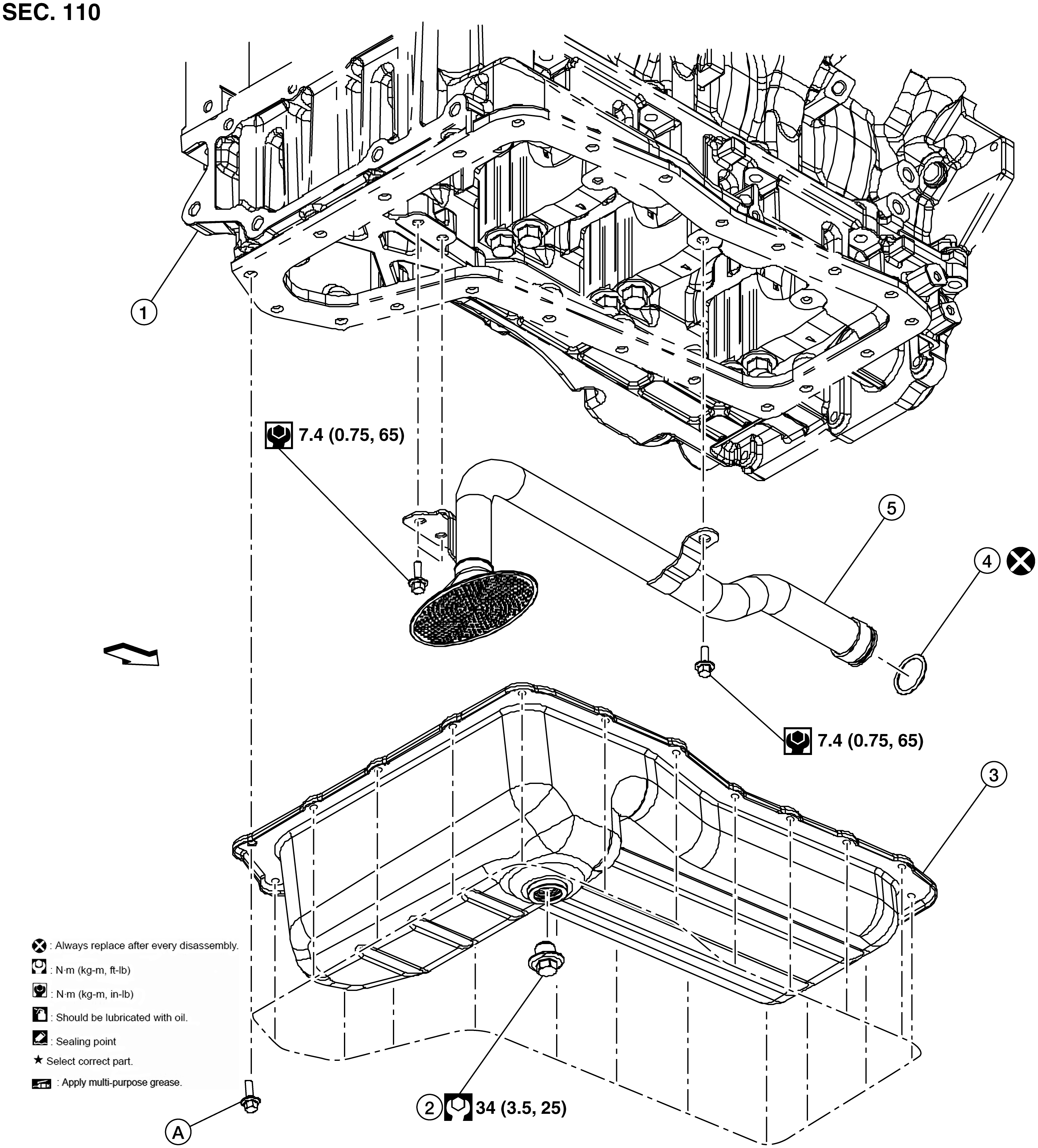

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Block stiffening plate |
2. |
Oil pan drain plug |
3. |
Oil pan |
|
4. |
O-ring |
5. |
Oil suction tube |
A. |
Refer to INSTALLATION |
|
|
Front |
