Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windage tray. Refer to Exploded View .
  2. Remove the bolts (A) from the oil pump suction tube (2) and remove the tube.
    GNSALBIA2266Z-266Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse the O-ring (1).
  3. Remove the bolts (A) and remove the lubricating oil pump (1) from the block stiffening plate (2).

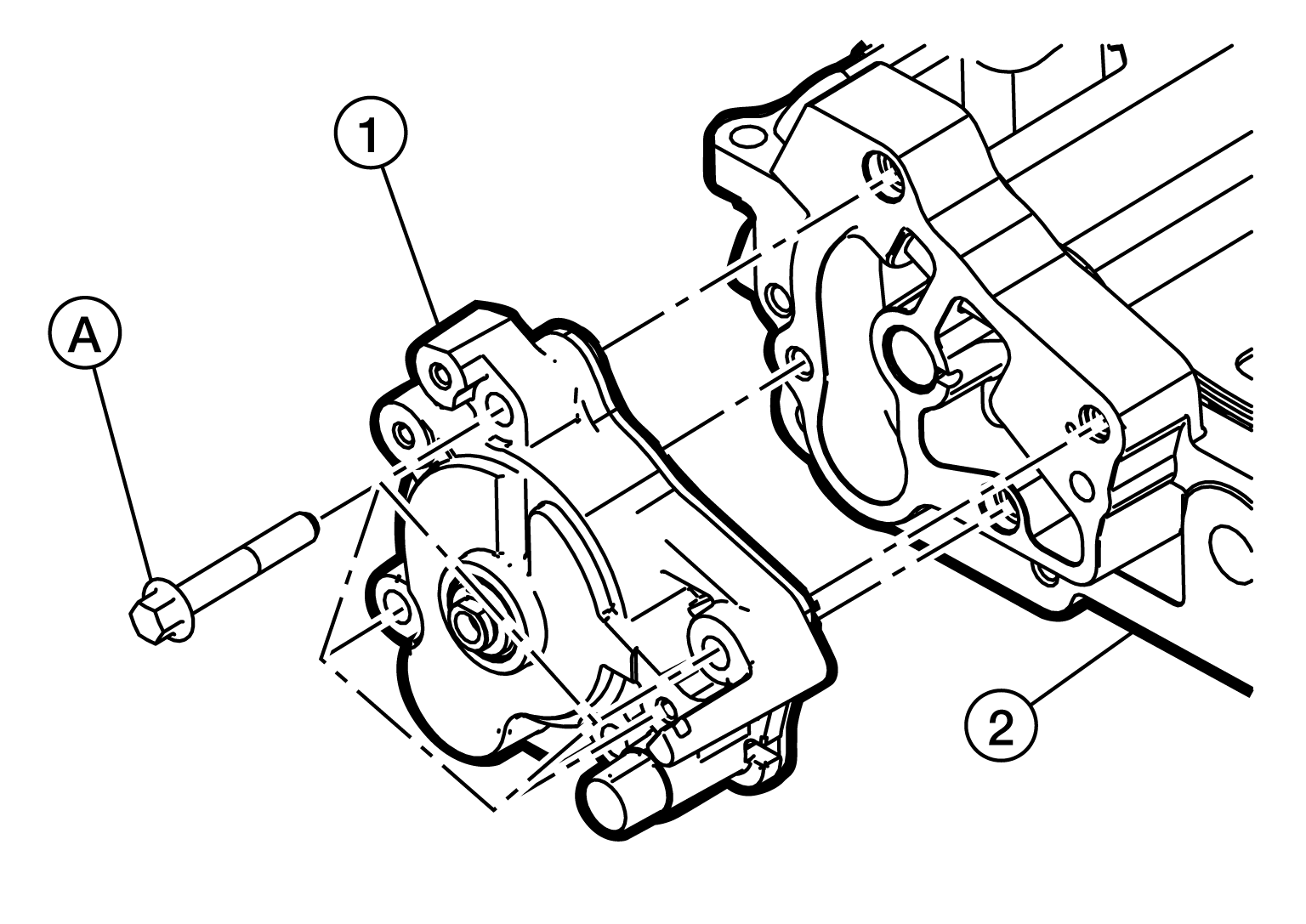

    GNSALBIA2829Z-829Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the threaded plug (3) from the plunger bore (A).

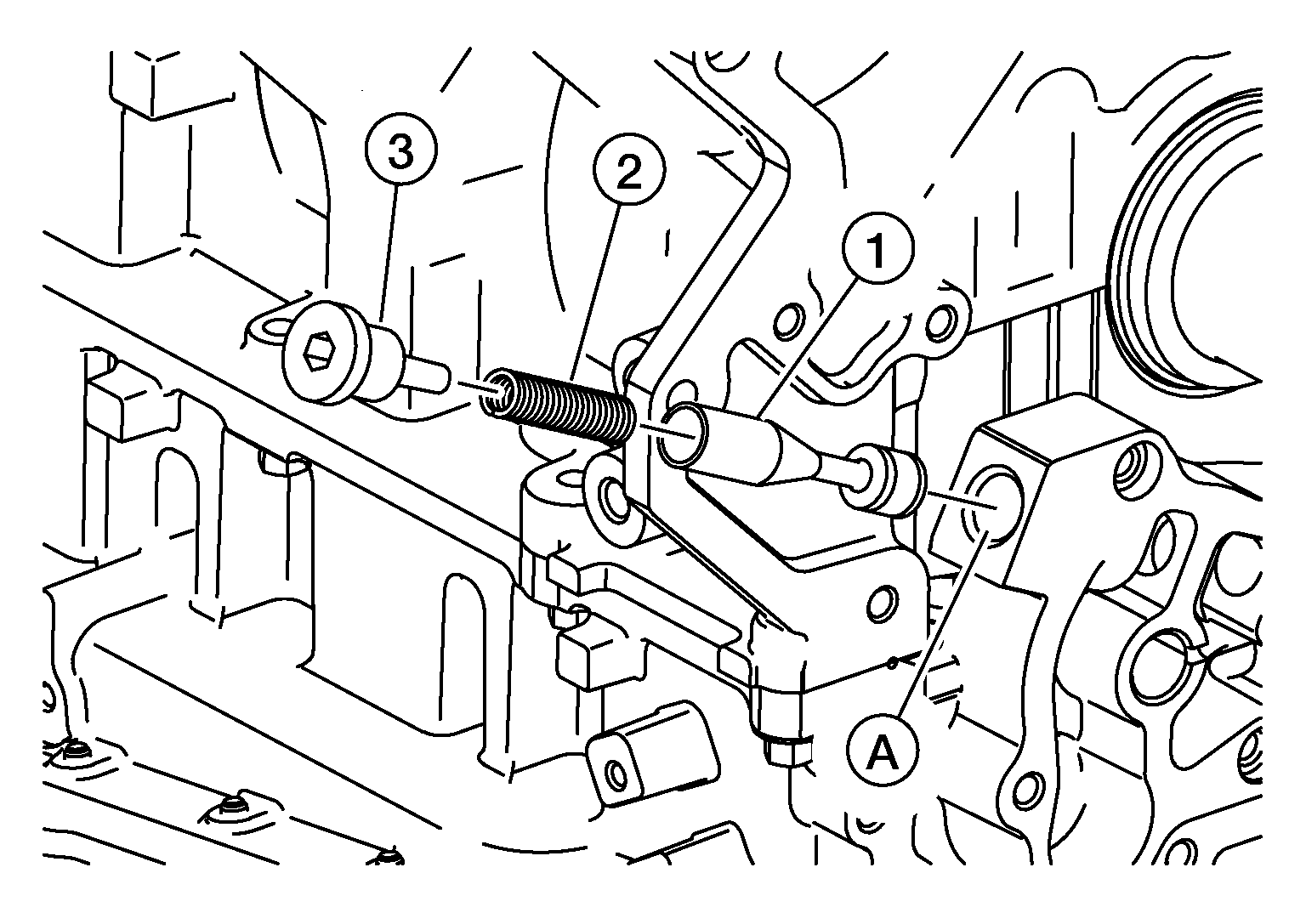

    GNSALBIA1435Z-435Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove the oil pressure regulator spring (2) and the oil pressure regulator (1).
  6. Remove the threaded plug (C) and remove the oil check valve spring (B) and oil check valve (A) from the block stiffening plate.
    GNSALBIA1452Z-452Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse the O-ring (1).

    SYMBOL

    : Front
