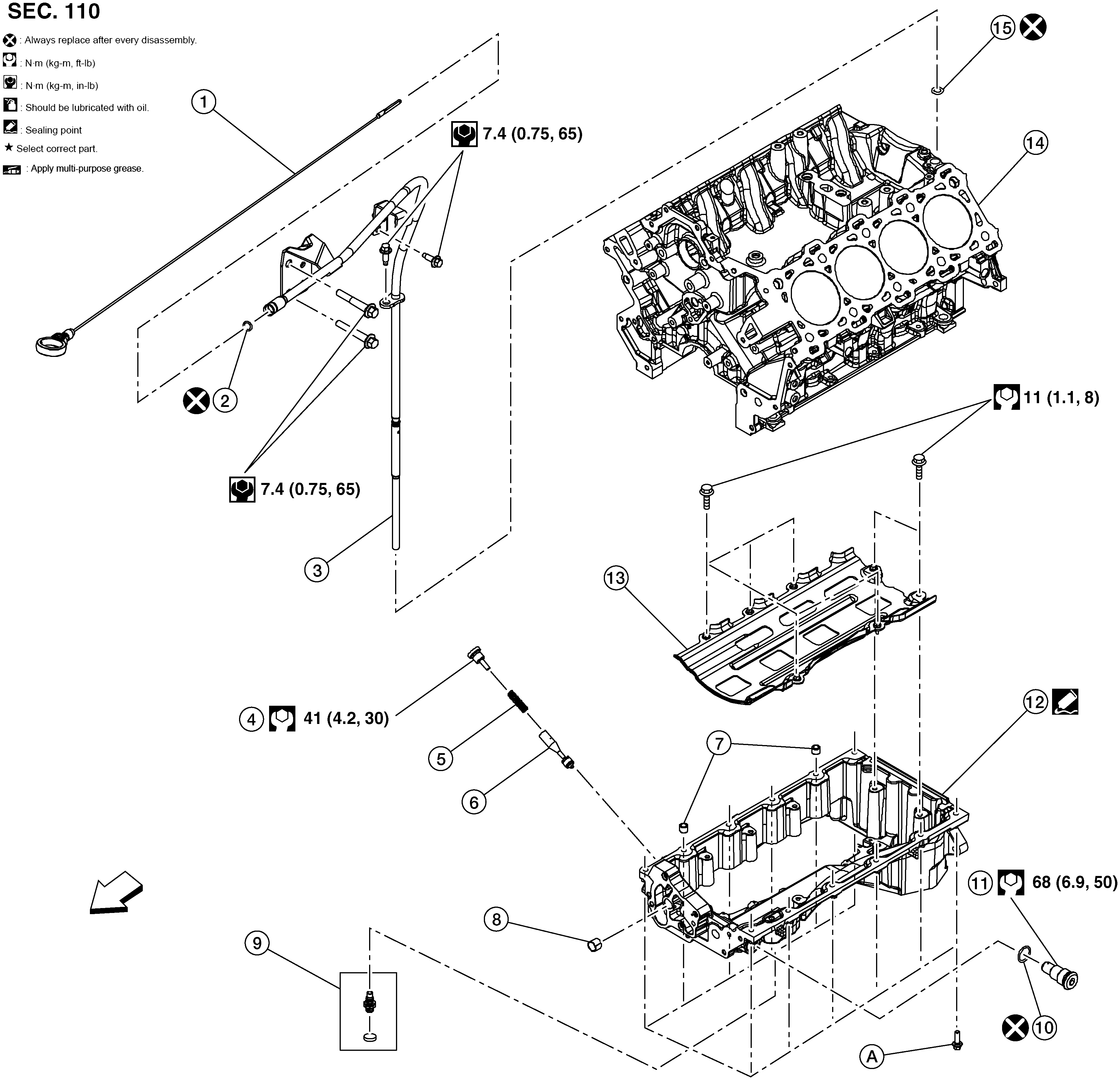

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Oil level gauge |
2. |
O-ring |
3. |
Oil level gauge guide |
|
4. |
Plug |
5. |
Oil pressure regulator spring |
6. |
Oil pressure regulator (main rifle) |
|
7. |
Dowel pin |
8. |
Bushing |
9. |
Check valve |
|
10. |
O-ring |
11. |
Oil check valve |
12. |
Block stiffening plate |
|
13. |
Windage tray |
14. |
Cylinder block |
15. |
O-ring |
|
A. |
Refer to INSTALLATION |
|
Front |
