Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil pressure regulator spring (2) and oil pressure regulator (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Install the threaded plug (3) into the plunger bore (A).
Install the oil check valve spring (B) and oil check valve (A) into the block stiffening plate and install the threaded plug (C).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse the O-ring (1).

: Front

Install the oil pump suction tube (2) into the block stiffening plate and tighten bolts (A).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse O-ring (1).

Bolts (A)

: 7.4 N.m (0.75 kg-m, 65 in-lb)

Fill the oil pump (1) with clean engine oil through opening (A). Use recommended engine oil or equivalent. Refer to Cummins 5.0L Engine: Fluids and Lubricants

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
To avoid possible engine damage:
- Fill the oil pump with oil.
- Prime the lubricating oil system after engine repair or rebuild service activities.
- Confirm oil pressure within 15 seconds of start up, shut down engine immediately if no oil pressure is produced after 15 seconds.
: Front

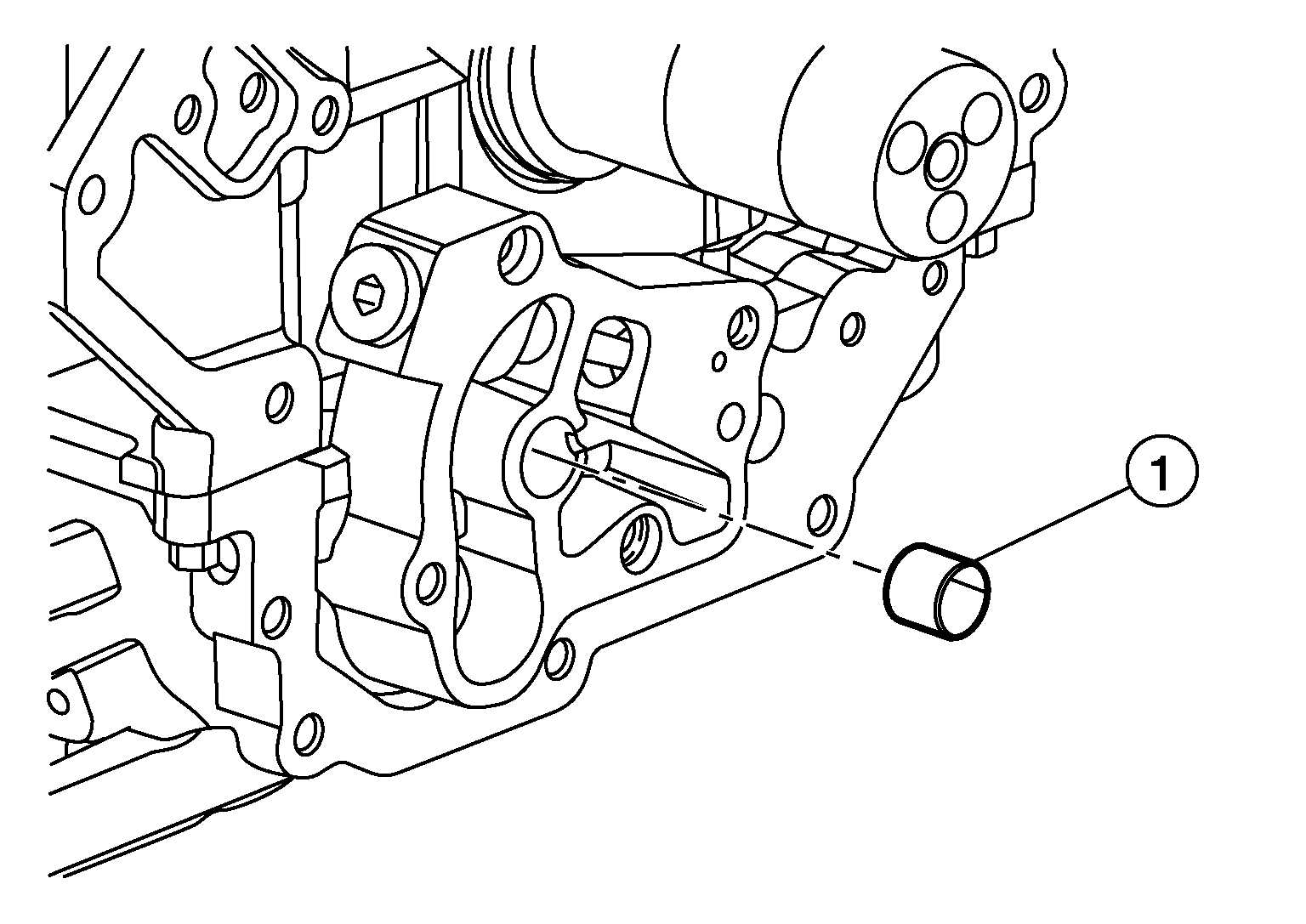

Make sure the oil pump bushing (1) is installed in the block stiffening plate before installing oil pump.

Courtesy of NISSAN NORTH AMERICA, INC.
Install the oil pump (1) onto the block stiffening plate (2) and hand tighten the bolts (A).

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Turn the pump to check for proper rotation using a suitable tool.

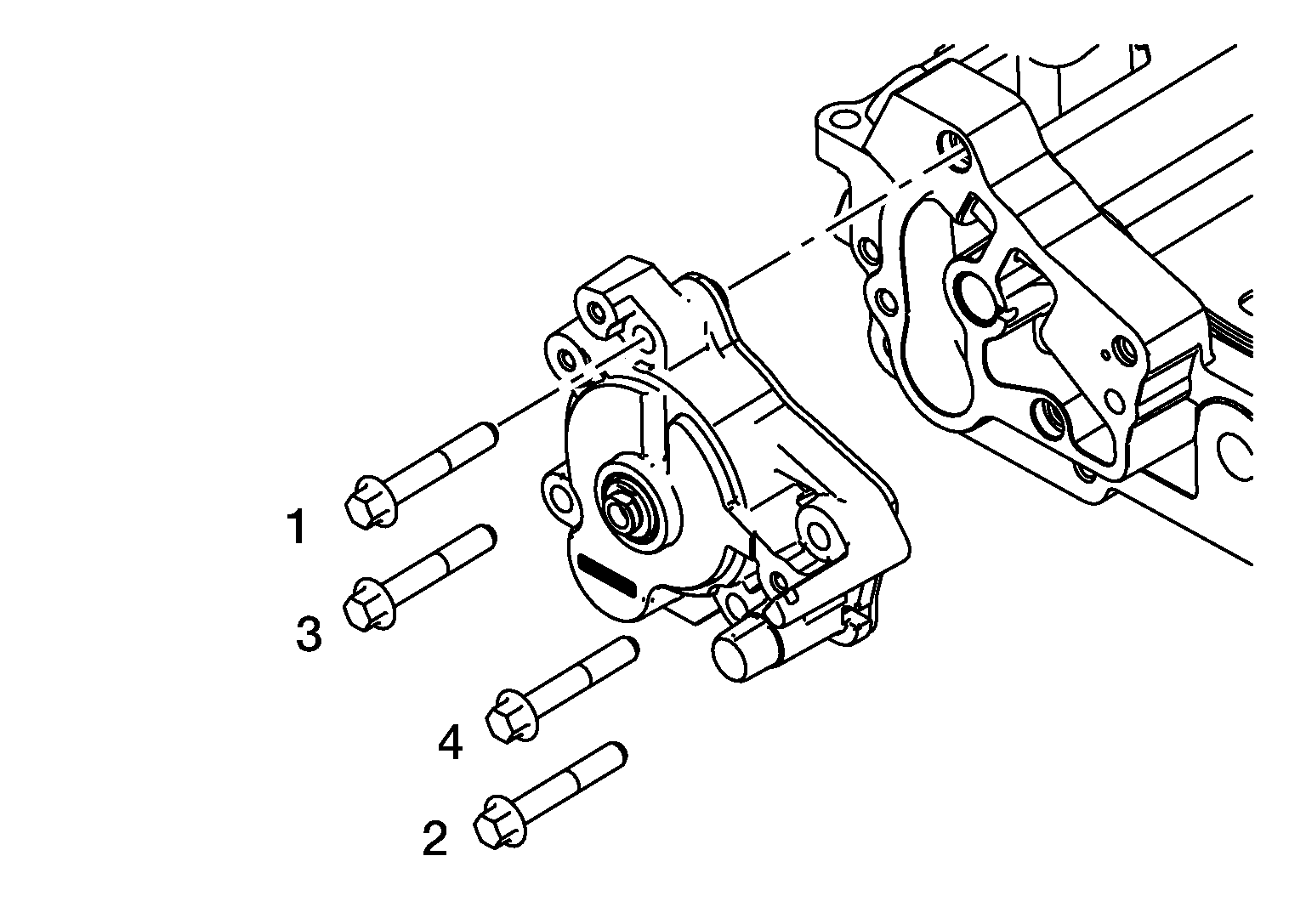

Tighten the oil pump bolts to specification in the sequence shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Oil pump bolts

: 20 N.m (2.0 kg-m, 15 ft-lb)

Align the windage tray in the stiffening plate and install bolts. Refer to Exploded View .
