Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front pillar finisher. Refer to Removal and Installation (SINGLE CAB), Removal and Installation (CREW CAB) or Removal and Installation (KING CAB ® ).
  2. Remove defroster grille. Refer to Exploded View .
  3. Remove speaker grille. Refer to Exploded View .

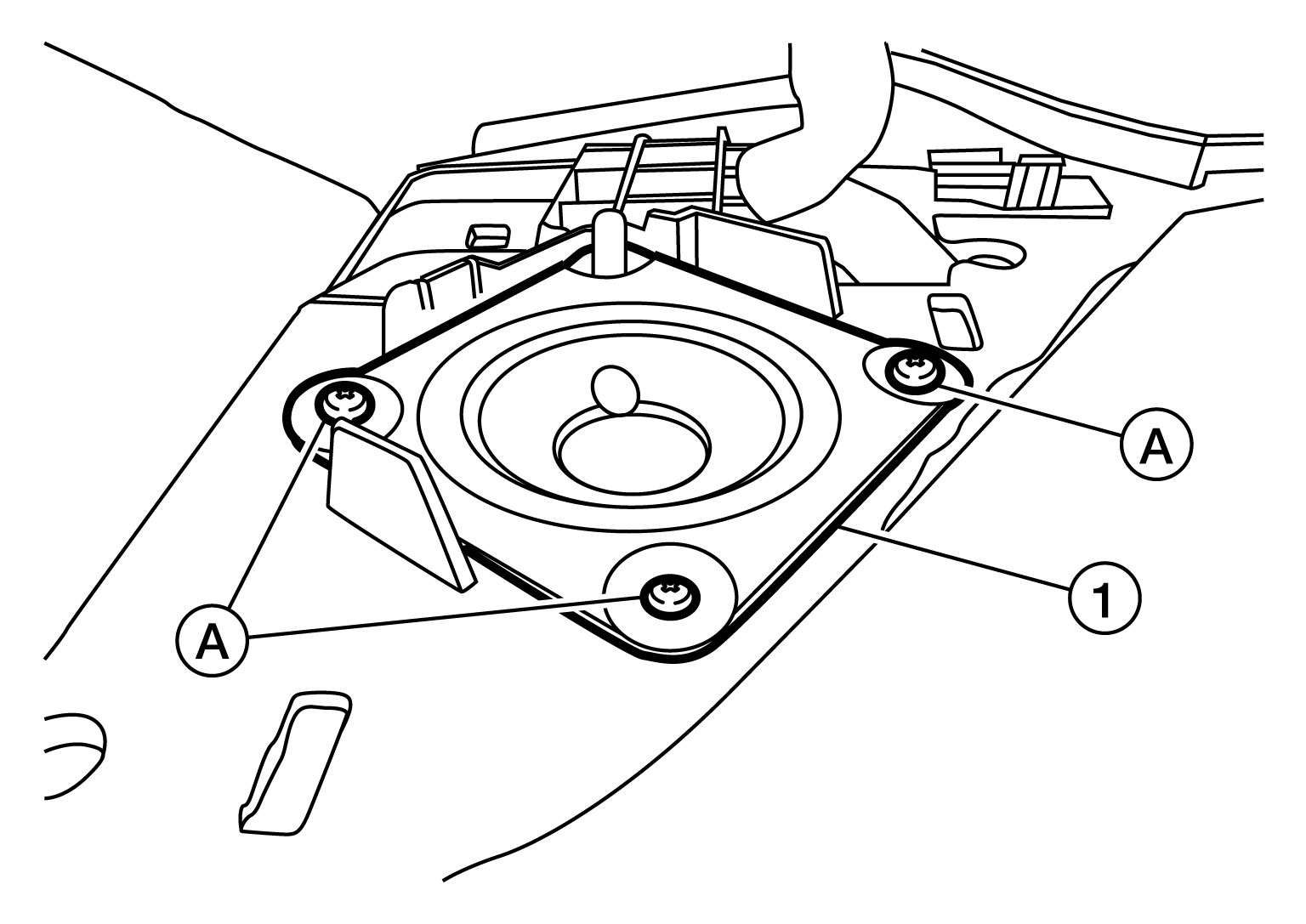

  4. Remove front tweeter screws (A).
    GNSALNIA1885Z-885Courtesy of NISSAN NORTH AMERICA, INC.
  5. Disconnect harness connector from front tweeter (1) and remove front tweeter.
