Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear pillar finisher (RH/LH). Refer to Removal and Installation .
  2. Remove the top half of the rear body side welt (RH/LH). Refer to Exploded View .
  3. Lower the rear portion of the headliner. Refer to Exploded View .

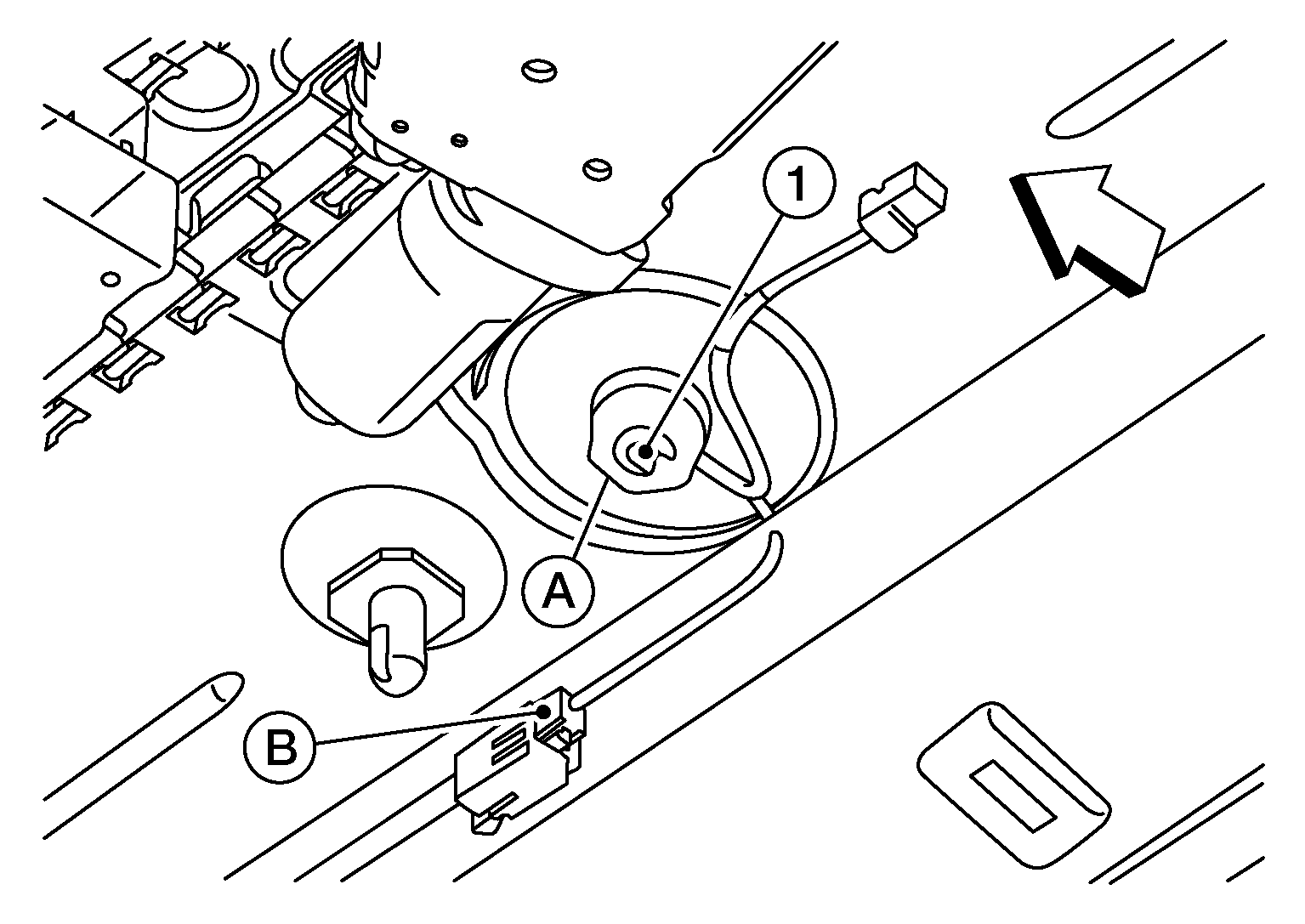

  4. Disconnect harness connector (B) from antenna feeder.
    GNSALNIA1734Z-734Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove nut (A) from satellite antenna (1) and remove.
  6. Remove the rear window glass. Refer to Removal and Installation .
  7. Remove the glass lid. Refer to Removal and Installation .
  8. Remove the roof finishers (LH/RH). Refer to Removal and Installation .
  9. Cut adhesive.
    • Pass piano wire through the adhesive with a wire pierce.
    • Tie piano wire on both ends to assist in wire grip.
    • Pull piano wire with a sawing motion to cut through the adhesive.
  10. Remove the rear moonroof glass.
