Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

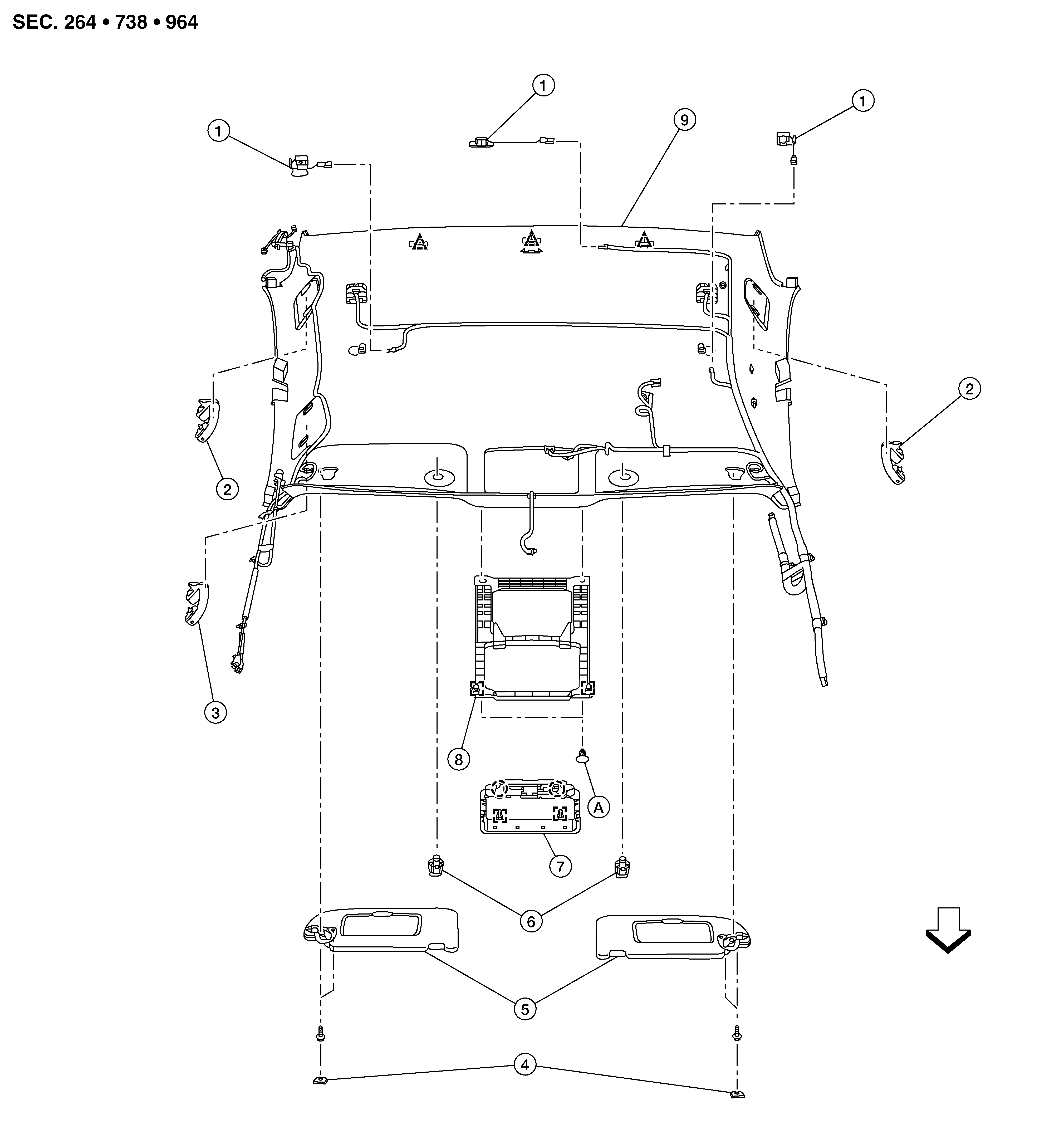

WITHOUT SUNROOF
|
1. |
Active noise control microphone |
2. |
Rear assist grip (LH/RH) |
3. |
Front assist grip |
|
4. |
Sun visor cover (LH/RH) |
5. |
Sun visors (RH/LH) |
6. |
Sun visor holder (LH/RH) |
|
7. |
Front room/map lamp |
8. |
Front room/map lamp bracket |
9. |
Headlining |
|
A. |
Clip |
|
Metal clip |
|
Clip |
|
|
Pawl |
|
Front |

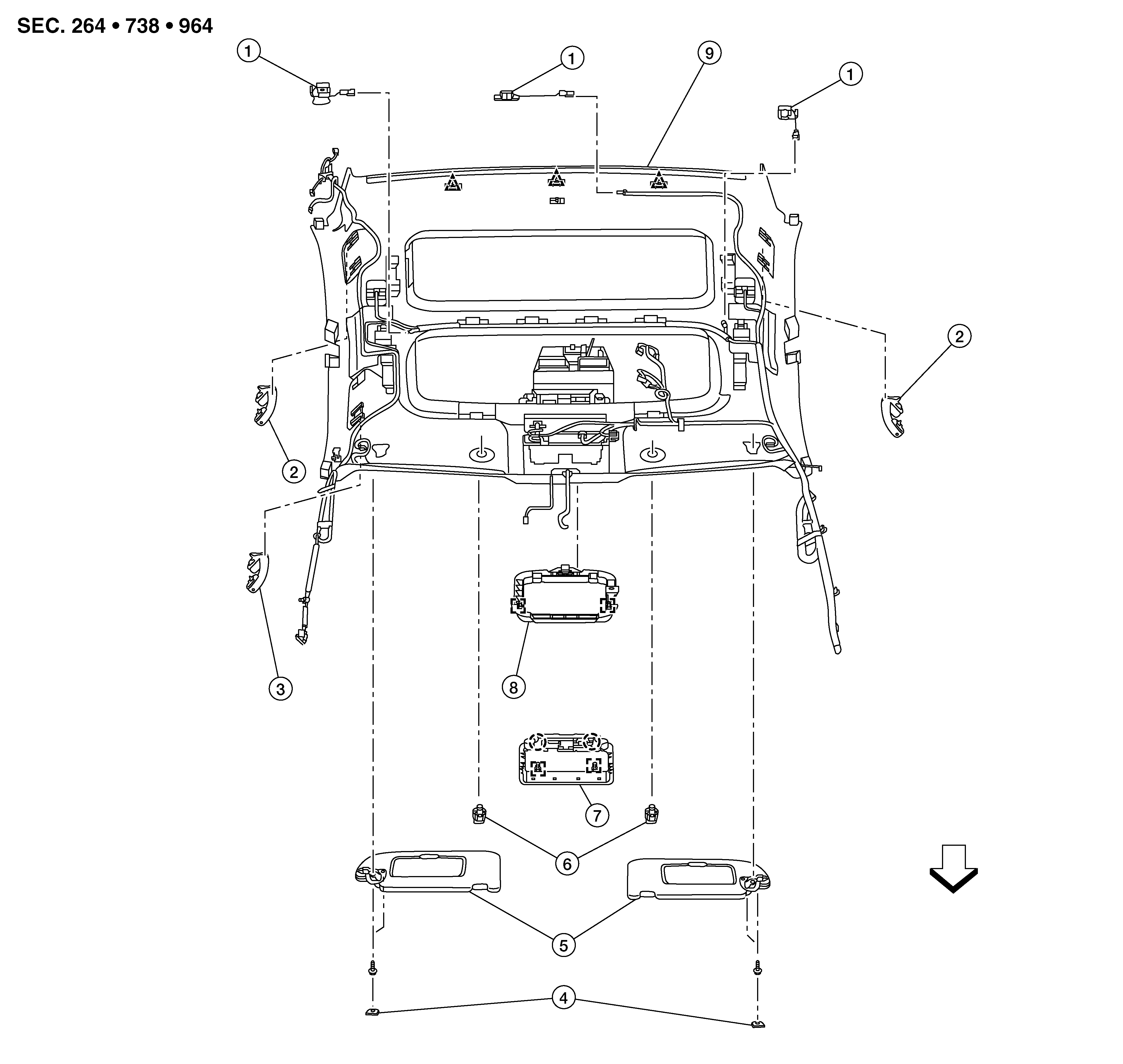

WITH SUNROOF
|
1. |
Active noise control microphone |
2. |
Rear assist grip (LH/RH) |
3. |
Front assist grip |
|
4. |
Sun visor cover (LH/RH) |
5. |
Sun visors (RH/LH) |
6. |
Sun visor holder (LH/RH) |
|
7. |
Front room/map lamp |
8. |
Front room/map lamp bracket |
9. |
Headlining |
|
|
Metal clip |
|
Clip |
|
Pawl |
|
|
Front |
