Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Discharge the refrigerant. Refer to Recycle Refrigerant .

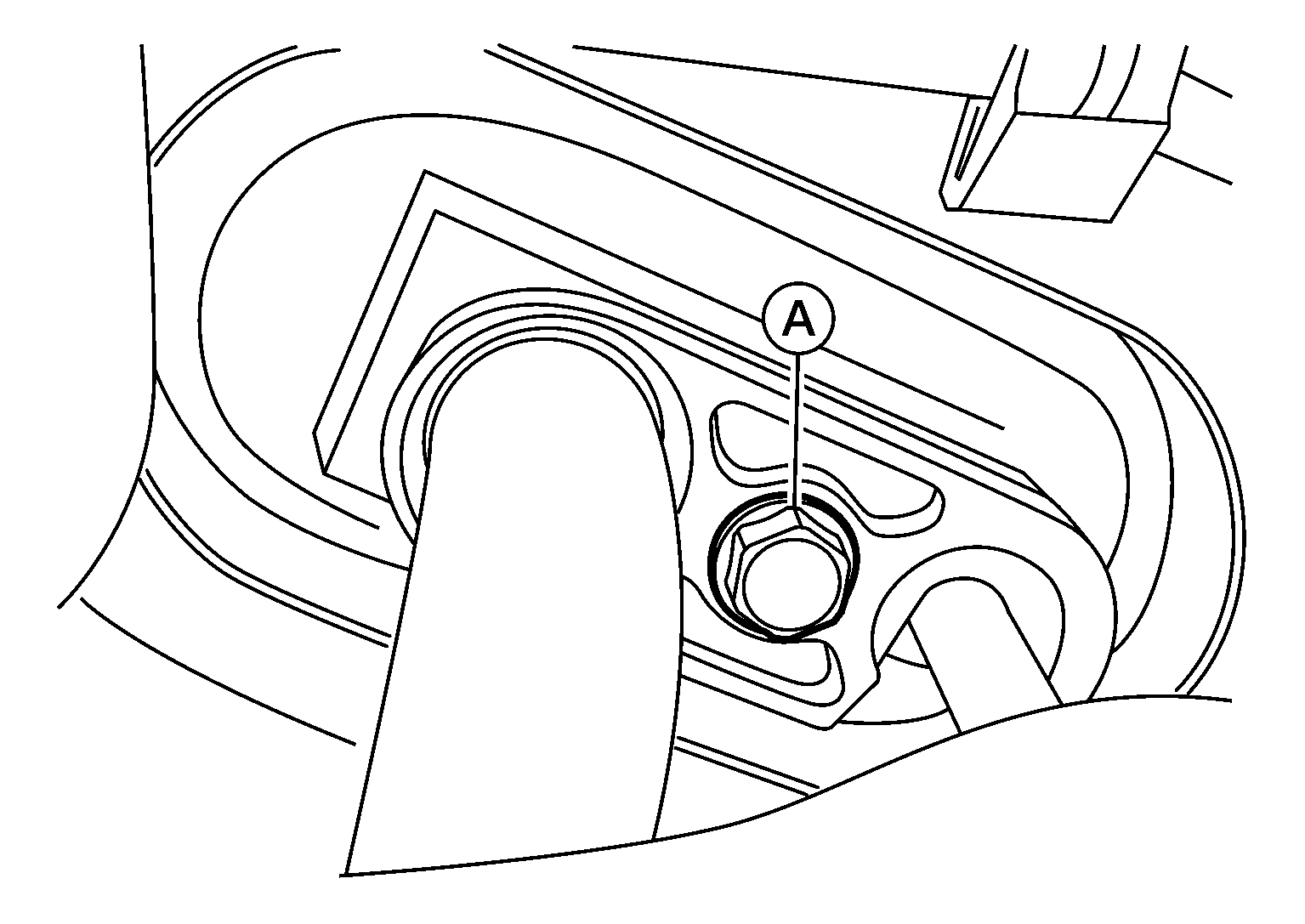

  2. Remove the bolt (A) that retains the low-pressure pipe to the expansion valve.
    GNSDB112665Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Cap or wrap the joint of the pipe with a suitable material such as vinyl tape to avoid the entry of air.
  3. Remove high-pressure piping (upper) and low-pressure piping (upper) from the power steering pump assembly. Refer to Exploded View .

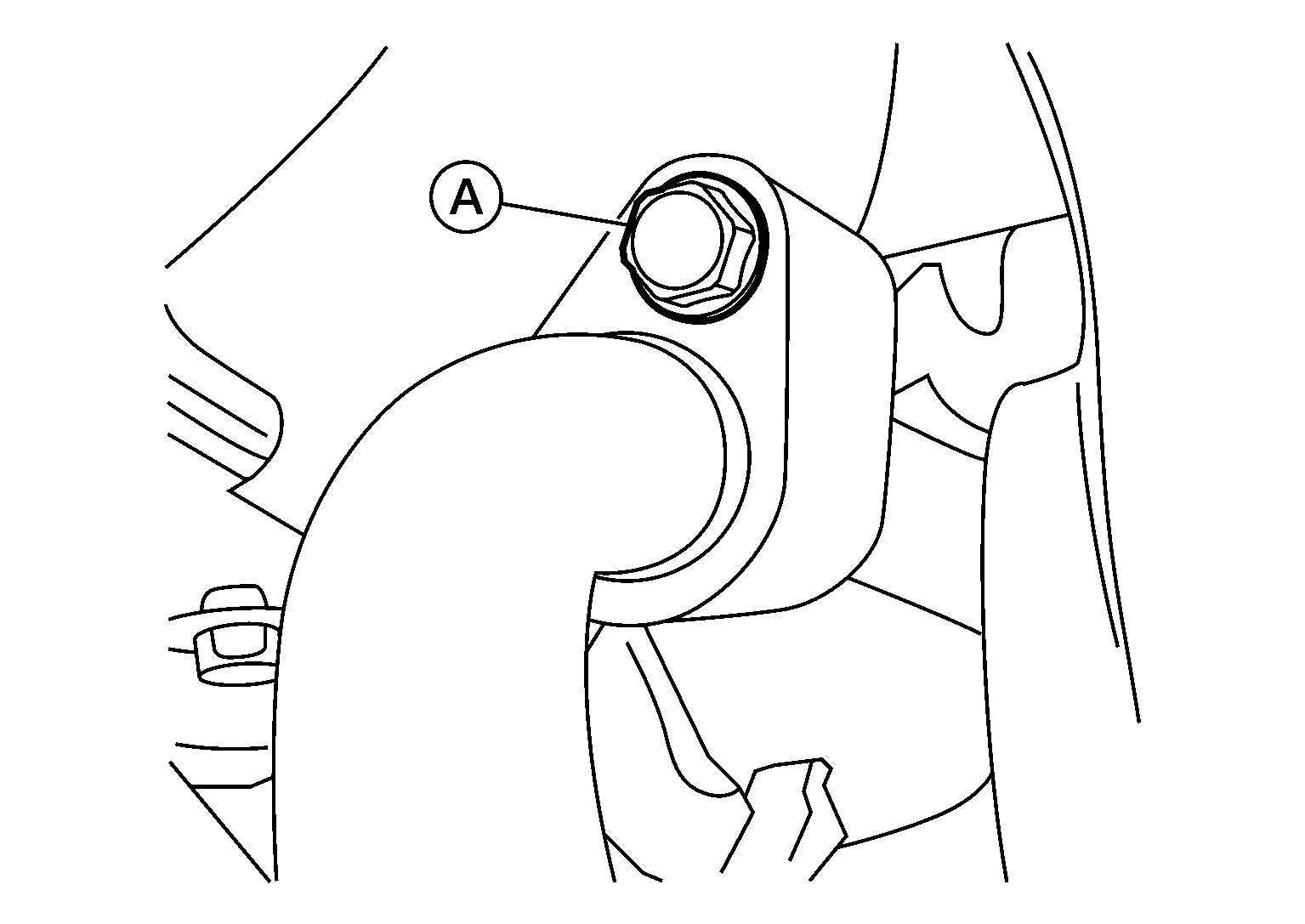

  4. Remove bolt (A) that retains the low-pressure pipe to the low-pressure hose.
    GNSDB112457Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Cap or wrap the joint of the pipe with a suitable material such as vinyl tape to avoid the entry of air.
  5. Remove the low-pressure pipe.
