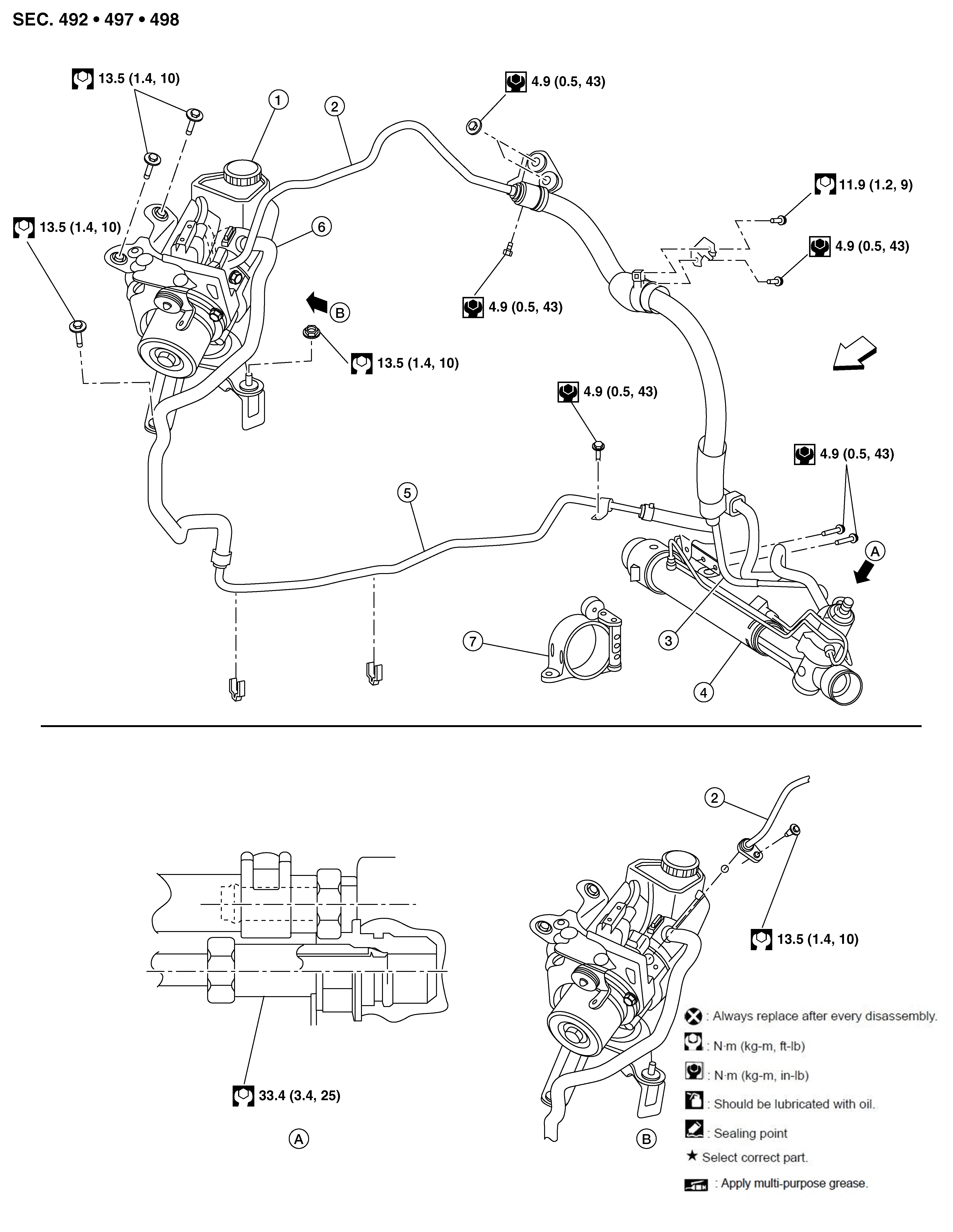

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Power steering oil pump
|
2.
|
High-pressure piping (upper)
|
3.
|
High-pressure piping (lower)
|
|
4.
|
Steering gear
|
5.
|
Low-pressure piping (lower)
|
6.
|
Low-pressure piping (upper)
|
|
7.
|
Torque rod bracket
|
A.
|
View A
|
B.
|
View B
|
|
|
Front
|
