Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Discharge the refrigerant. Refer to Recycle Refrigerant .
Remove power steering pump assembly. Refer to Removal and Installation .
Remove the cowl top. Refer to Removal and Installation .

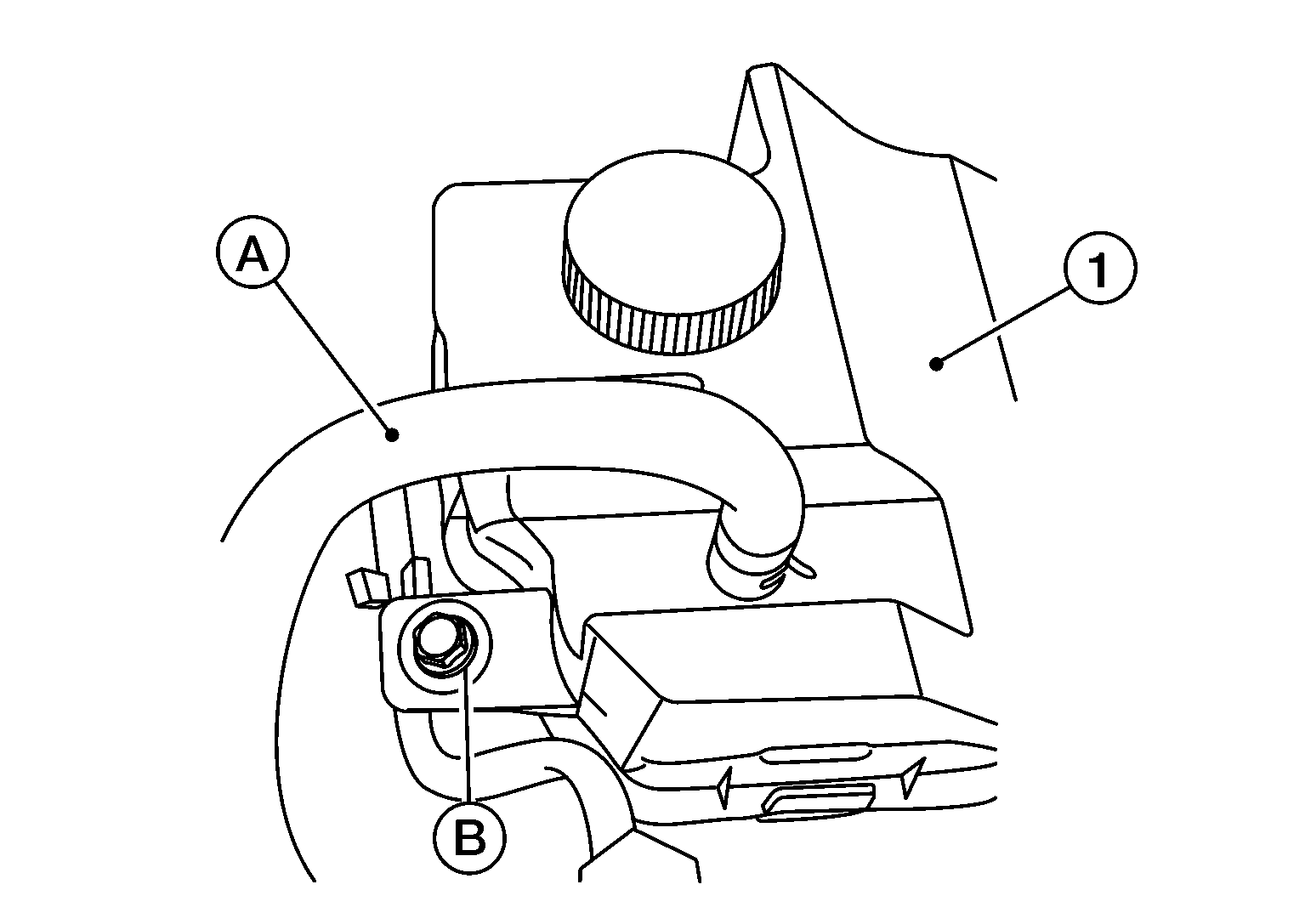

Remove coolant overflow tube (A) from clips.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove coolant overflow reservoir bolt (B).
Set coolant overflow reservoir (1) aside.

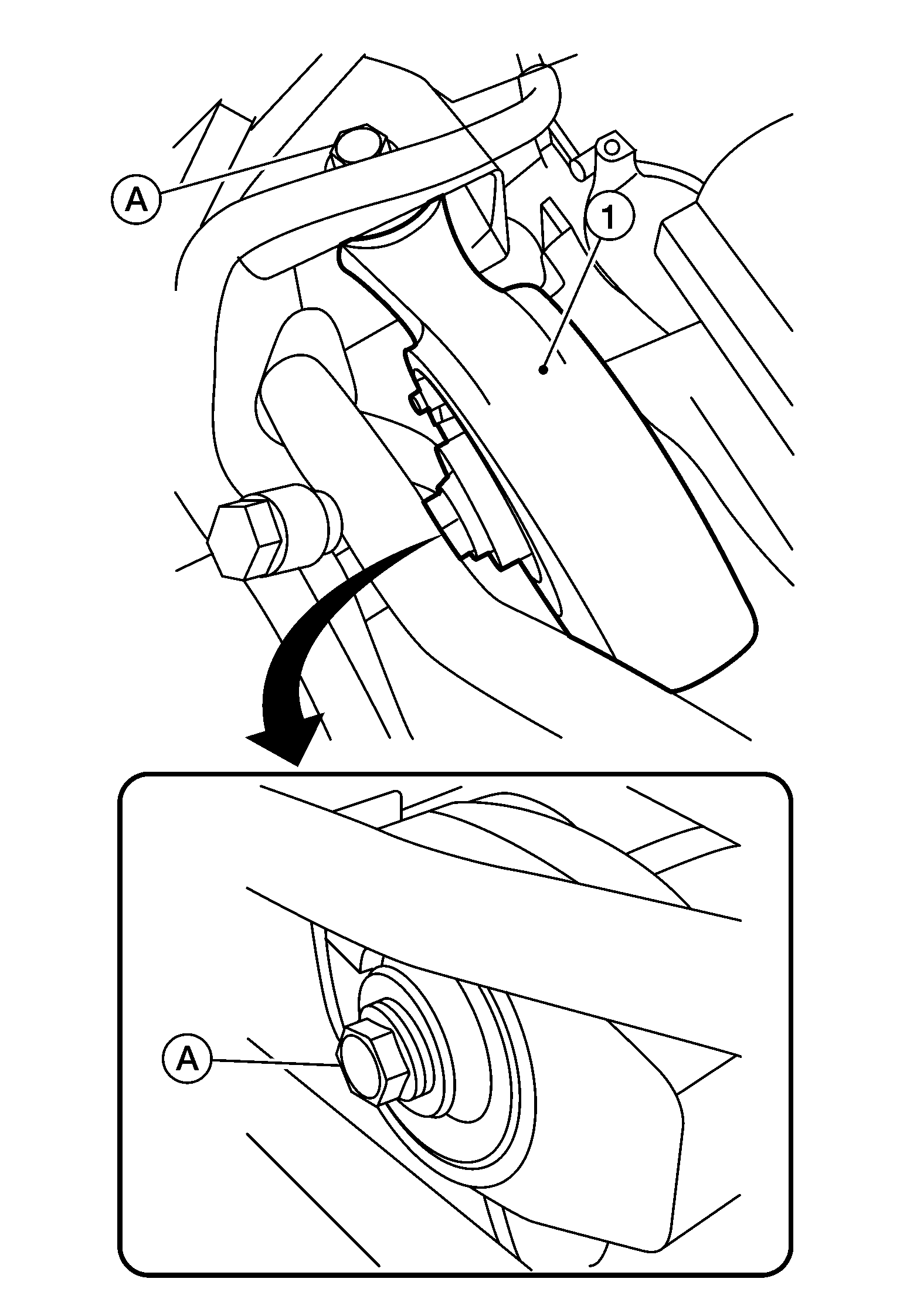

Remove the upper torque rod. Refer to Removal and Installation .

Courtesy of NISSAN NORTH AMERICA, INC.
Remove bolt (A) that retains the high-pressure pipe to the expansion valve.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Cap or wrap the joint of the pipe with a suitable material such as vinyl tape to avoid the entry of air.
Remove the bolt (A) that retains the high-pressure pipe to the condenser pipe.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Cap or wrap the joint of the pipe with a suitable material such as vinyl tape to avoid the entry of air.
