Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Cap or wrap the joint of the hose with a suitable material such as vinyl tape to avoid the entry of contaminants.
  1. Discharge the refrigerant. Refer to Recycle Refrigerant .
  2. Remove the core support cover.
  3. Remove front air duct. Refer to Removal and Installation .
  4. Disconnect the harness connector from the refrigerant pressure sensor.
  5. Remove the engine undercover. Refer to Removal and Installation .
  6. Clean liquid tank and its surrounding area, and remove dirt and rust from liquid tank.
    CAUTION: Be sure to clean carefully.

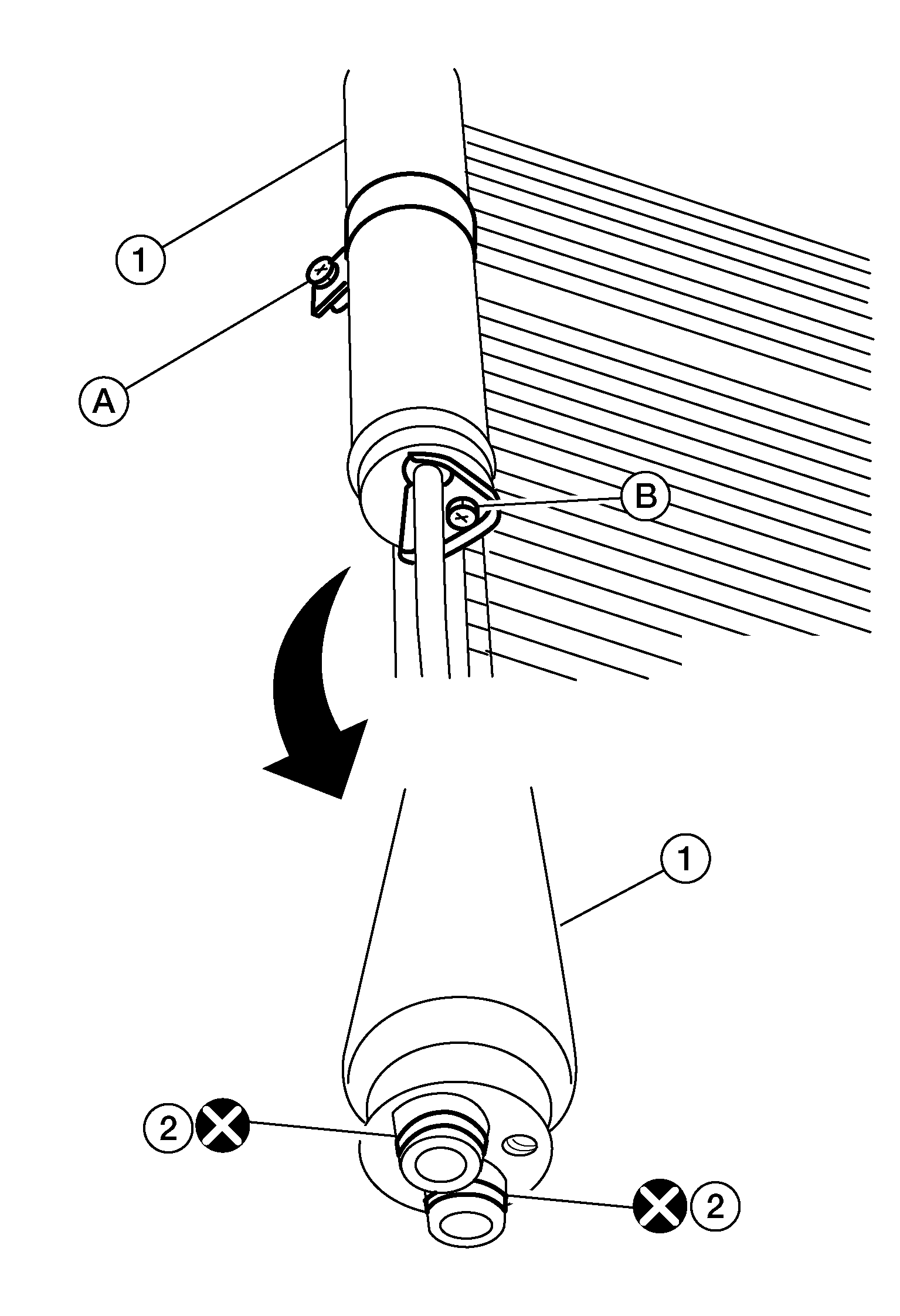

  7. Remove bolt (A) and bolt (B) from the liquid tank (1) bottom and bracket.
    GNSDB117418Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove the liquid tank (1) with the bracket and refrigerant pressure sensor as an assembly. Slide the liquid tank (1) upward to release the bracket. Discard the two O-rings (2).
  9. If necessary, remove the refrigerant pressure sensor from the liquid tank.
