Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal. Refer to Exploded View .

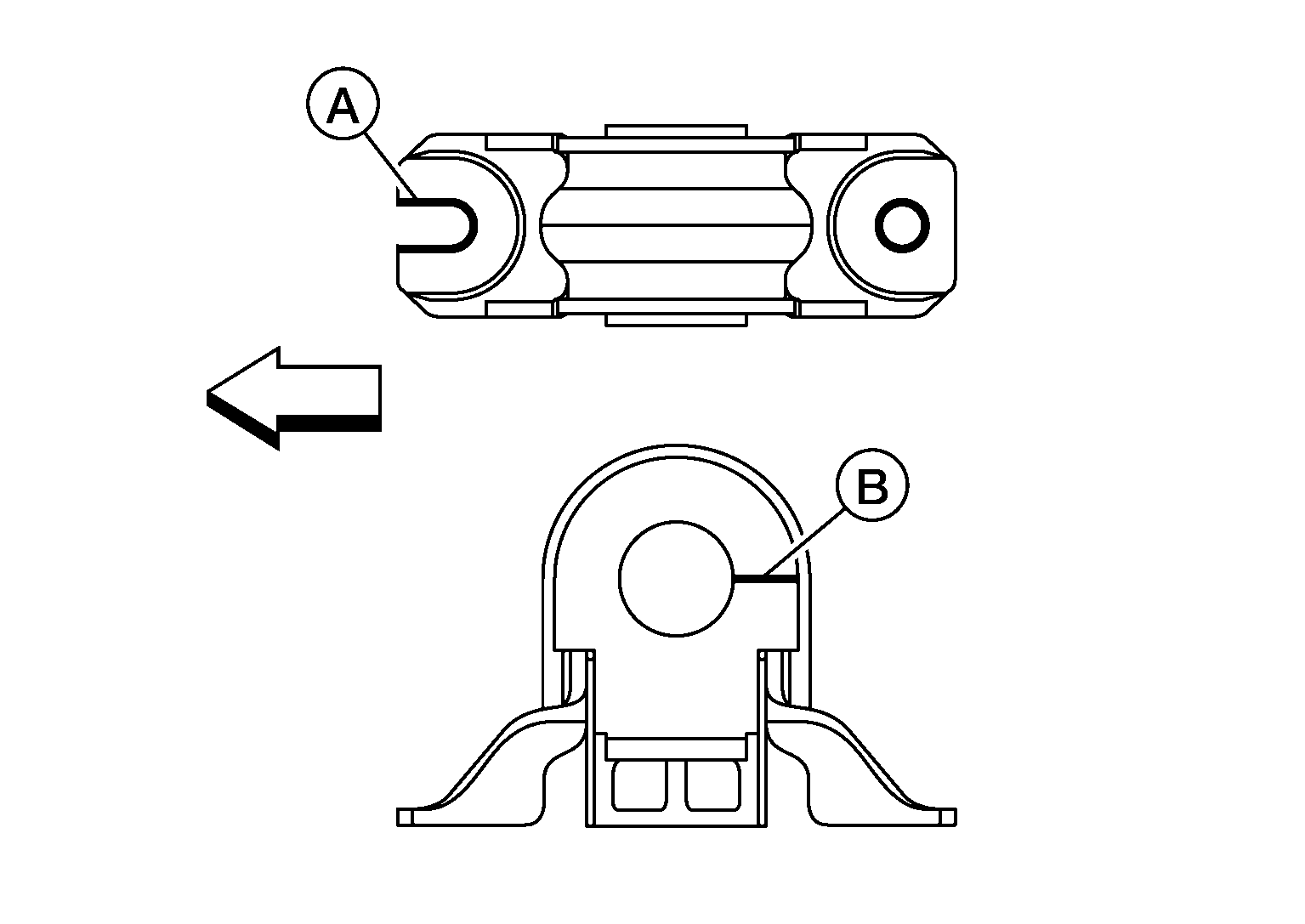

When installing stabilizer, make sure that notch (A) in stabilizer clamps face front.

Courtesy of NISSAN NORTH AMERICA, INC.
Make sure each slit (B) in surface of each stabilizer bushing faces rear of the vehicle.

:Front
The stabilizer uses a pillow ball type stabilizer connecting rod. Position ball joint with case on pillow ball head parallel to stabilizer.

Courtesy of NISSAN NORTH AMERICA, INC.
