Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

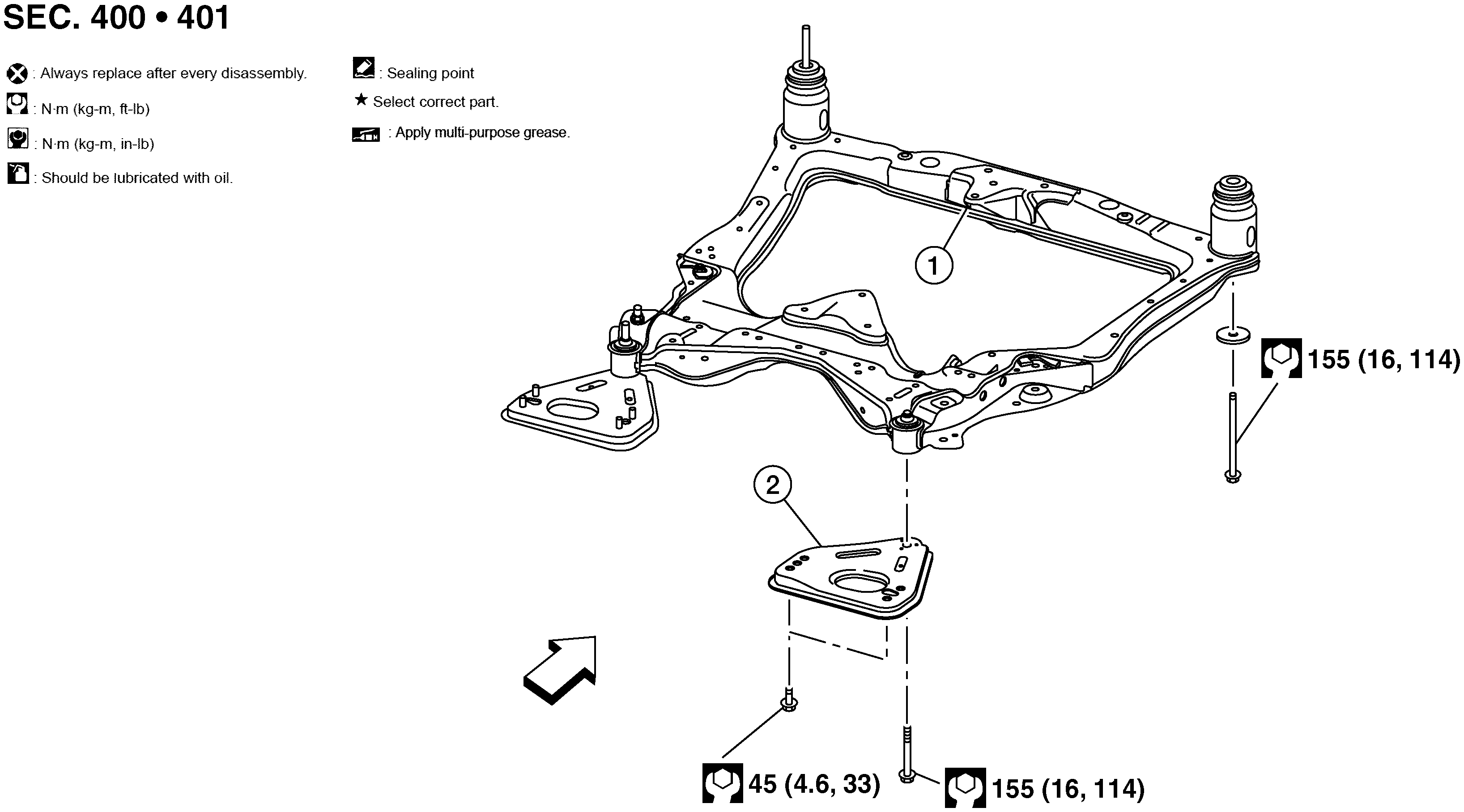

Fig 1: Front Suspension Member With Torque Specifications
GNSAWEIA02Z-002Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front suspension member

2.

Front suspension member stay

SYMBOL

Front
