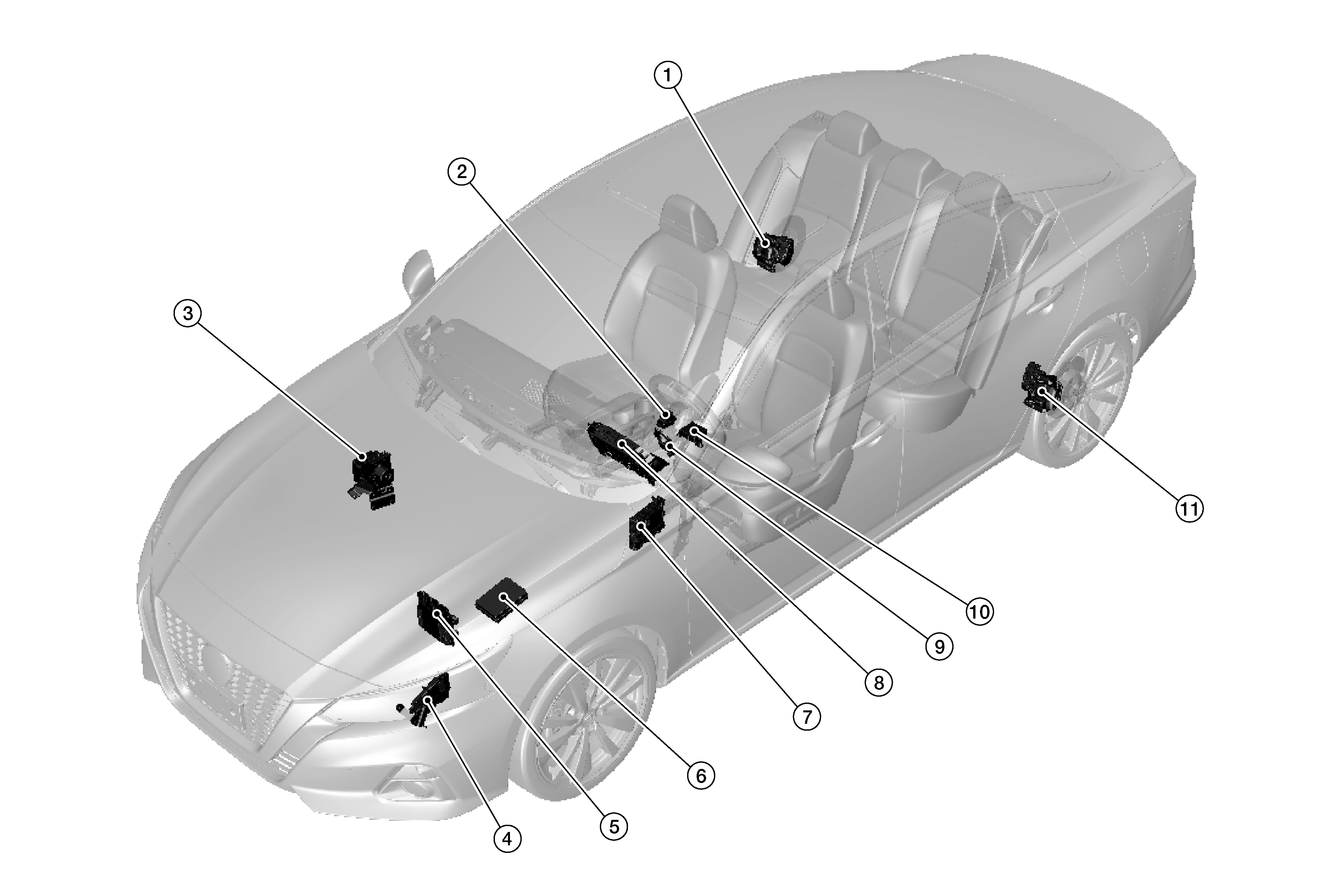

Component Location

No.

Component part

Function

1.

Parking brake actuator RH

Refer to Component Description .

2.

Electric parking brake switch

Refer to Component Description .

3.

ABS actuator and electric unit (control unit)

Mainly transmits the following signals to electric parking brake control module via CAN communication:

• Wheel speed sensor signals
• VDC operation signal
• Brake fluid pressure signal
• ABS operation signal

Refer to Component Description for detailed location.

4.

TCM

Mainly transmits the following signals to electric parking brake control module via CAN communication:

• Target gear position signal
• Input speed signal

Refer to Component Description (RE0F10D), or Component Description (RE0F10H) for detailed location.

5.

ECM

Mainly transmits the following signals to electric parking brake control module via CAN communication:

• Engine speed signal
• Engine torque signal
• Stop/start status signal
• Accelerator pedal position signal

Refer to Component Location for detailed location.

6.

IPDM E/R

Mainly transmits the following signal to electric parking brake control module via CAN communication:

• Ignition switch ON signal
• Neutral position signal
• Reverse switch signal

Refer to Component Location for detailed location.

7.

BCM

Mainly transmits the following signals to electric parking brake control module via CAN communication:

• Stop lamp switch signal
• Door switch LH signal
• Ignition switch ON signal
• Sleep wake up signal

Refer to Component Location for detailed location.

8.

Combination meter

Mainly transmits the following signals to electric parking brake control module via CAN communication:

• Seat belt buckle switch LH signal

Refer to Component Location (FWD Models With KR20DDET Engine), Component Location (FWD Models With PR25DD Engine), Component Location (AWD Models With PR25DD Engine), for detailed location.

9.

Chassis control module (with built in steering angle sensor)

(If equipped)

Mainly transmits the following signals to electric parking brake control module via CAN communication:

• Electric parking brake operation request signal
• Chassis control module malfunction signal

Refer to Component Location .

10.

Electric parking brake control module

Refer to Component Description .

11.

Parking brake actuator LH

Refer to Component Description .
