Component Parts Location

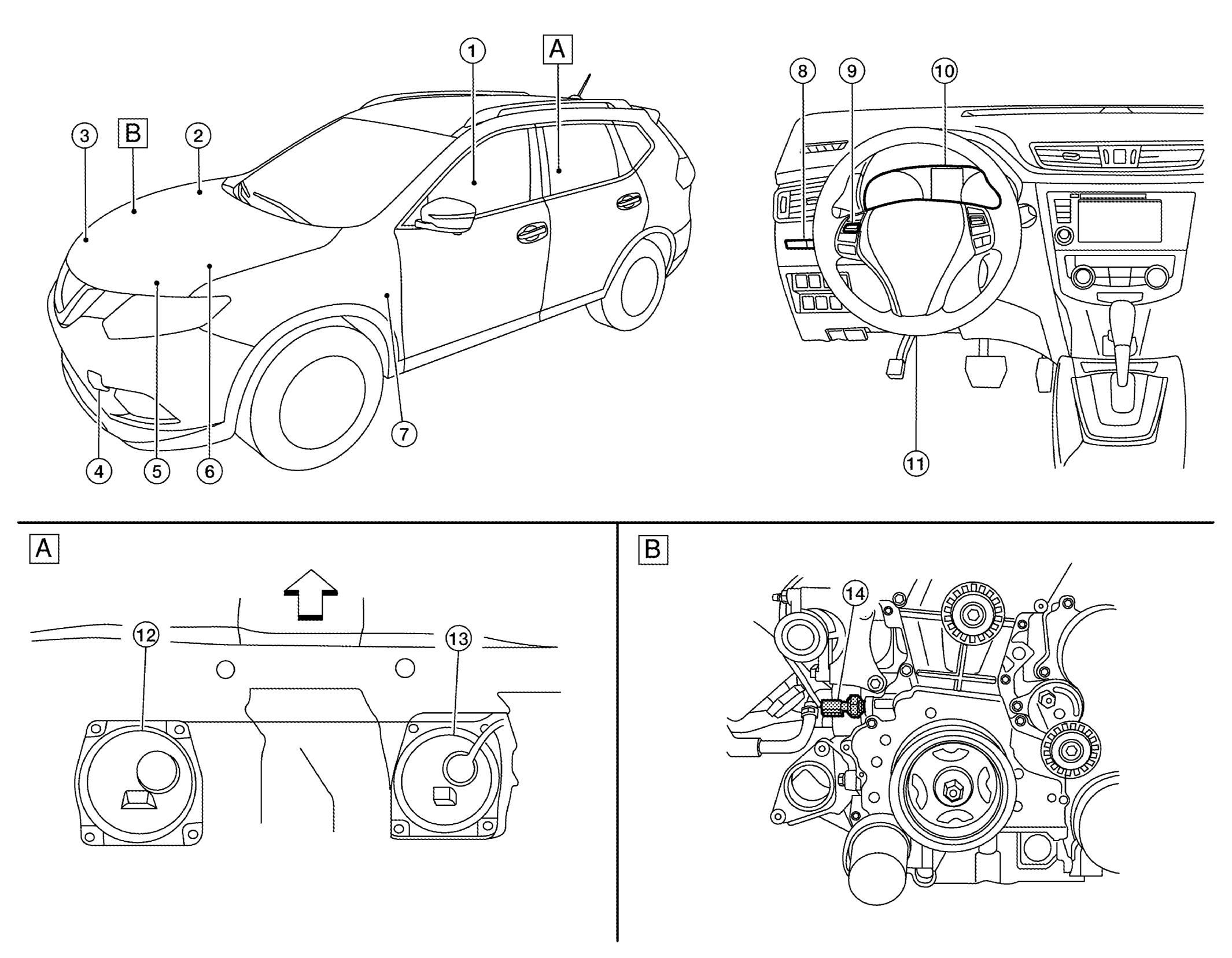

Fig 1: Meter System Component Parts Location
GNSALNIA1644ZZ-644Courtesy of NISSAN NORTH AMERICA, INC.
ARROW Vehicle front
A. View of the fuel pump and fuel level sensor inspection hole covers with the rear seat removed. B. View of front engine assembly
No. Component Function
1. Seat belt buckle switch LH Transmits the seat belt buckle switch signal LH to the combination meter.
2. ABS actuator and electric unit (control unit)
3. Washer fluid level switch
  • Transmits the washer fluid level switch signal to the combination meter.
  • Refer to COMPONENT PARTS LOCATION for detailed installation location.
4. Ambient sensor
  • Transmits the ambient sensor signal to the combination meter.
5. ECM
6. TCM
7. BCM
8. Meter control switch Refer to SWITCH NAME AND FUNCTION .
9. Steering switches Refer to SWITCH NAME AND FUNCTION .
10. Combination meter Refer to SYSTEM DESCRIPTION .
11. Parking brake switch Transmits the parking brake switch signal to the combination meter.
12. Fuel level sensor unit (sub) Transmits the fuel level sensor signal to the combination meter.
13. Fuel level sensor unit and fuel pump (fuel level sensor) (main) Transmits the fuel level sensor signal to the combination meter.
14. Engine oil pressure sensor Transmits the engine oil pressure sensor signal to the ECM.
