Component Parts Location

Fig 1: Brake Control System (VDC/TCS/ABS) Diagram (1 Of 2)
GNSALFIA0478ZZ-478Courtesy of NISSAN NORTH AMERICA, INC.

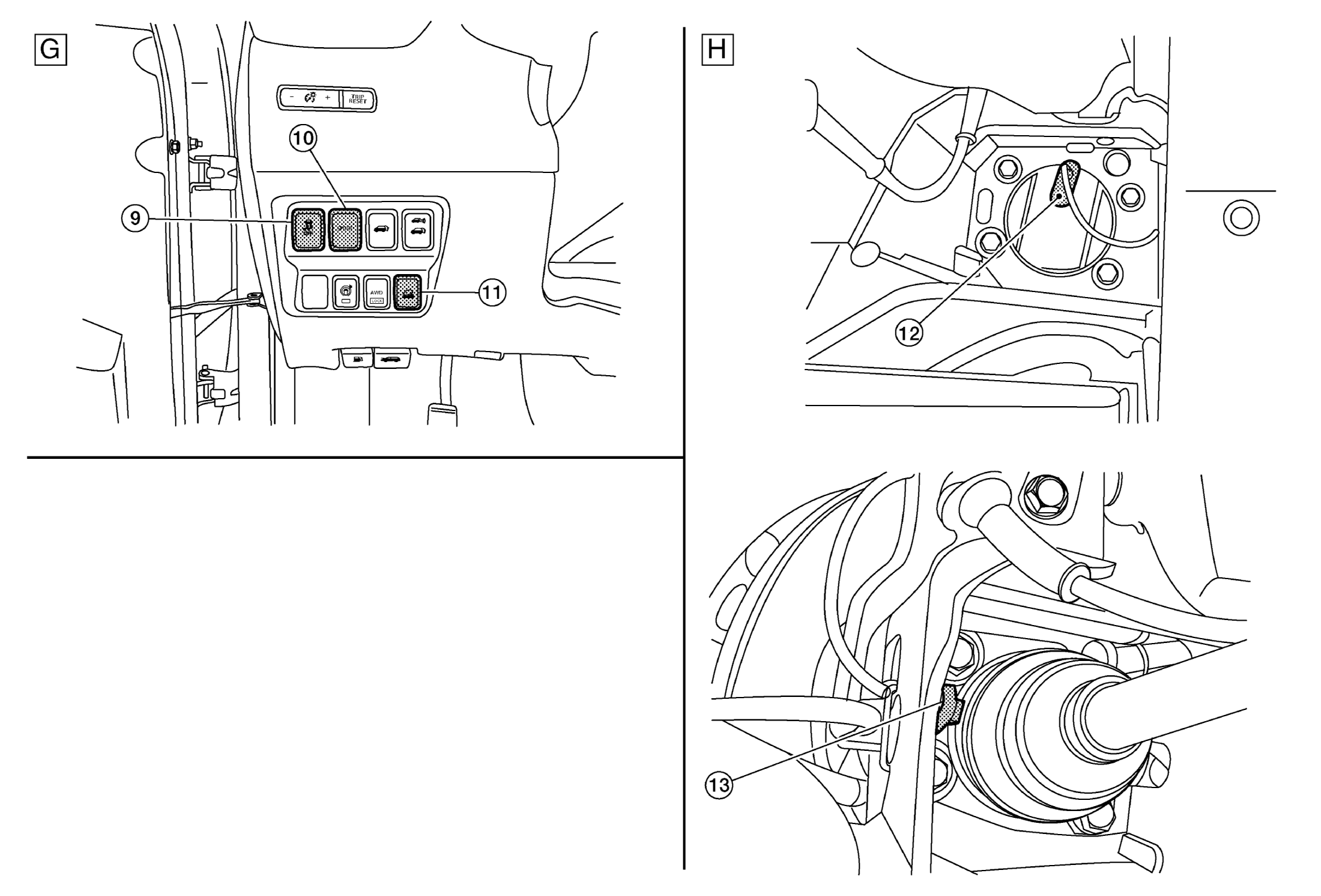

Fig 2: Brake Control System (VDC/TCS/ABS) Diagram (2 Of 2)
GNSALFIA0426ZZ-426Courtesy of NISSAN NORTH AMERICA, INC.
A. Steering column (view with steering wheel removed) B. RH side of instrument panel (view with instrument panel removed) C. LH side of engine compartment
D. RH side of engine compartment E. Left front wheel area F. Brake pedal area
G. Left side of instrument panel H. Left rear wheel area
No. Component parts Function
1. Steering angle sensor STEERING ANGLE SENSOR
2. Chassis control module Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
  • Drive mode signal
  • Active Trace Control signal
  • Brake hold status signal
  • Brake hold request signal

Refer to COMPONENT PARTS LOCATION for detailed installation location.
3. Brake fluid level switch BRAKE FLUID LEVEL SWITCH
4. Vacuum sensor VACUUM SENSOR
5. ABS actuator and electric unit (control unit) ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
6. Front LH wheel sensor WHEEL SENSOR AND SENSOR ROTOR
7. Parking brake switch PARKING BRAKE SWITCH
8. Stop lamp switch PARKING BRAKE SWITCH
9. VDC OFF switch VDC OFF SWITCH
10. Drive mode switch SPORT MODE SWITCH
11. Hill descent switch HILL DESCENT CONTROL SWITCH
12. Rear wheel sensor LH (FWD models) WHEEL SENSOR AND SENSOR ROTOR
13. Rear wheel sensor LH (AWD models) WHEEL SENSOR AND SENSOR ROTOR
