Symptom Table

  1. Perform "Data Monitor" of CONSULT to check for any malfunctioning item.
  2. Check the malfunction combinations.

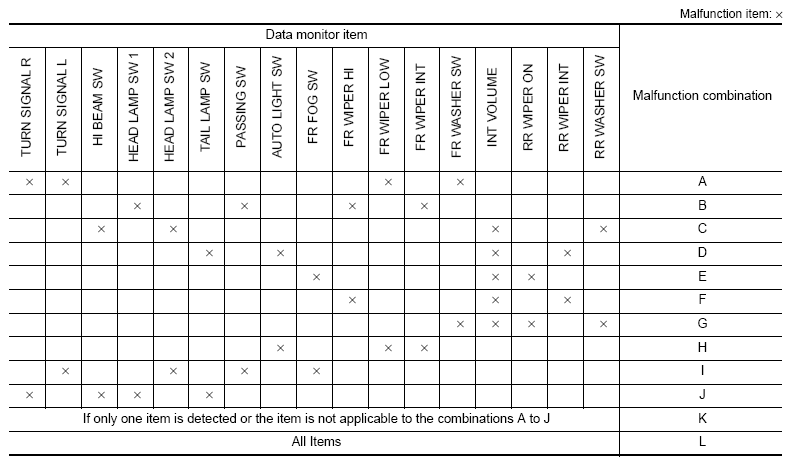

    Fig 1: Combination Switch System Symptoms Chart
    G08988109Courtesy of NISSAN NORTH AMERICA, INC.
  3. Identify the malfunctioning part from the agreed combination and repair or replace the part.
    Malfunction combination Malfunctioning part Repair or replace
    A Combination switch "OUTPUT 1" circuit Inspect the combination switch output circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ".
    B Combination switch "OUTPUT 2" circuit
    C Combination switch "OUTPUT 3" circuit
    D Combination switch "OUTPUT 4" circuit
    E Combination switch "OUTPUT 5" circuit
    F Combination switch "INPUT 1" circuit Inspect the combination switch input circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ".
    G Combination switch "INPUT 2" circuit
    H Combination switch "INPUT 3" circuit
    I Combination switch "INPUT 4" circuit
    J Combination switch "INPUT 5" circuit
    K Combination switch Inspect the combination switch. Refer to "DESCRIPTION ".
    L BCM Replace BCM.
