Engine Coolant Temperature (ECT) Sensor 1 and 2

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

ECT sensors 1 and 2 are temperature dependent resistors (thermistors). The resistance decreases as the engine coolant temperature increases.

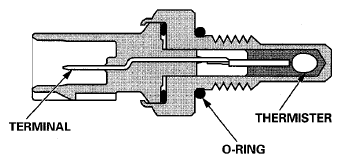

Fig 1: Identifying ECT Sensor 1 And 2 Terminal, O-Ring And Thermistors
G08052464Courtesy of AMERICAN HONDA MOTOR CO., INC.
