PCM Electrical Connections

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

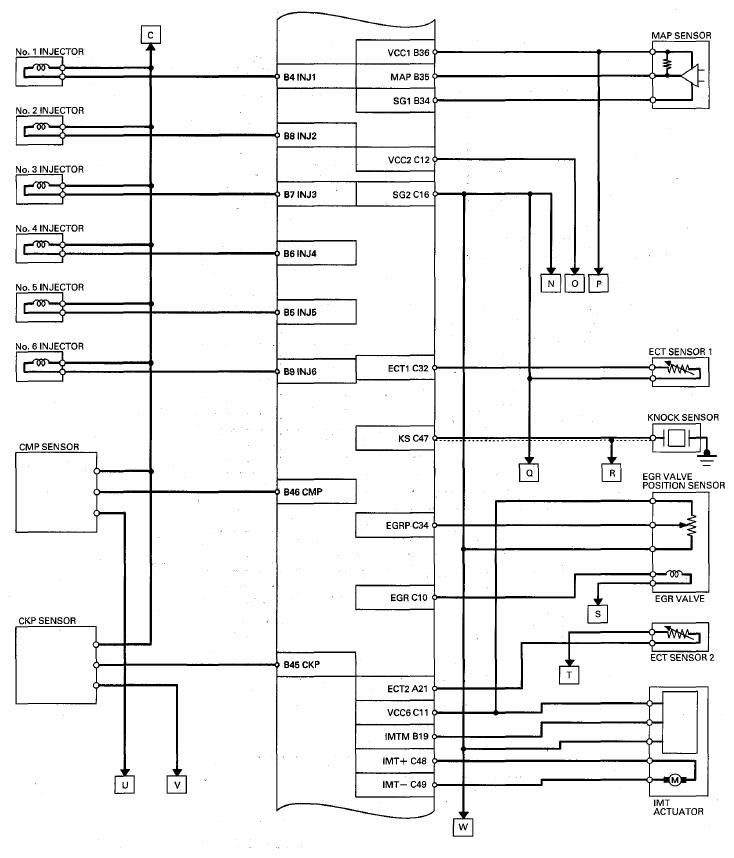

Fig 1: PCM Electrical Connections Diagram (1 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the GENERAL TROUBLESHOOTING INFORMATION for more details.

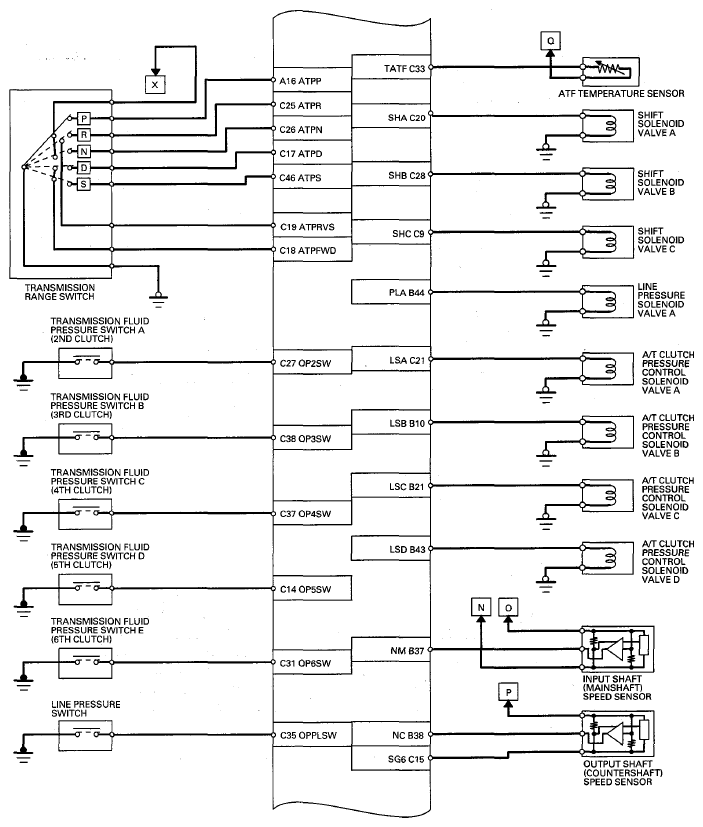

Fig 2: PCM Electrical Connections Diagram (2 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

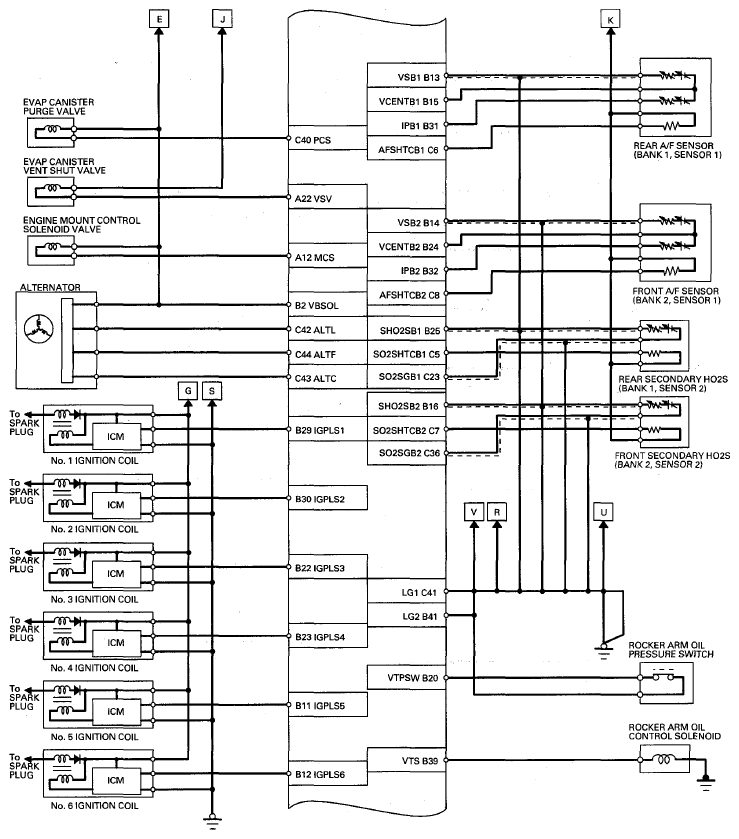

Fig 3: PCM Electrical Connections Diagram (3 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

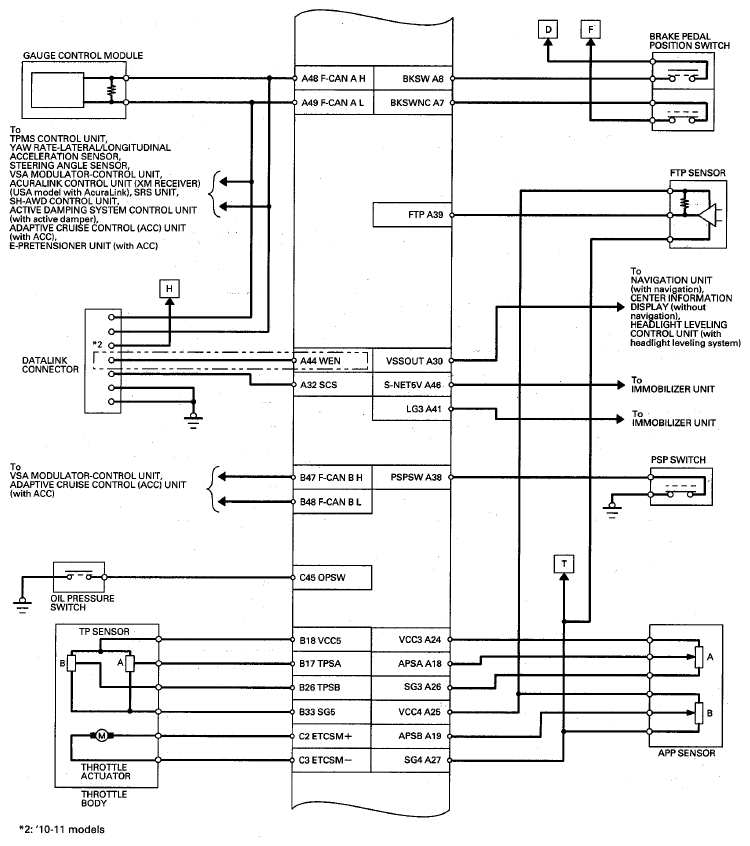

Fig 4: PCM Electrical Connections Diagram (4 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

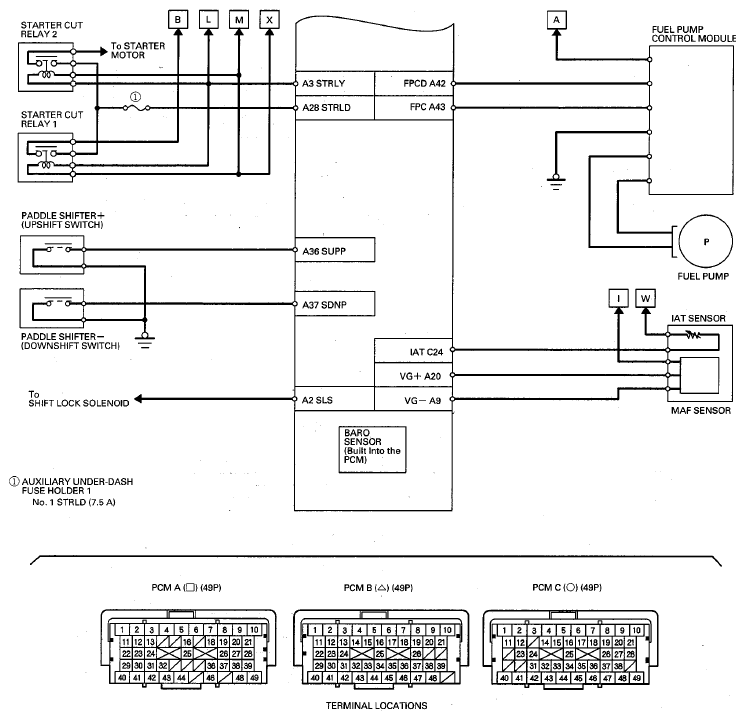

Fig 5: PCM Electrical Connections Diagram (5 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

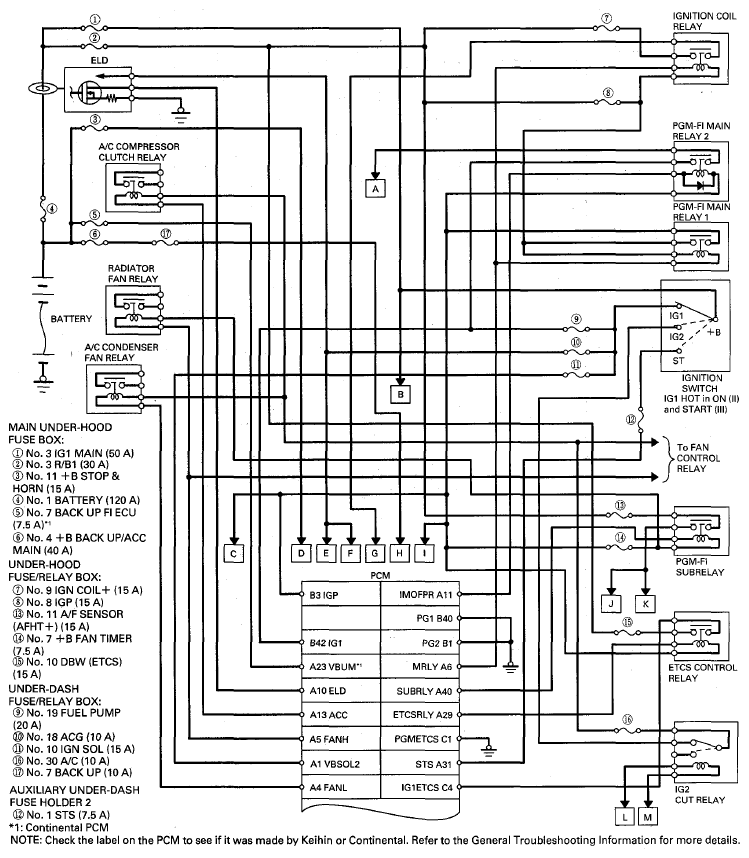

Fig 6: PCM Electrical Connections Diagram (6 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
