Section 95 (Fuel And Emissions Systems)
>>
System Description
>>
Fuel and Emissions Systems Diagram
Fuel and Emissions Systems Diagram
WARNING:
This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

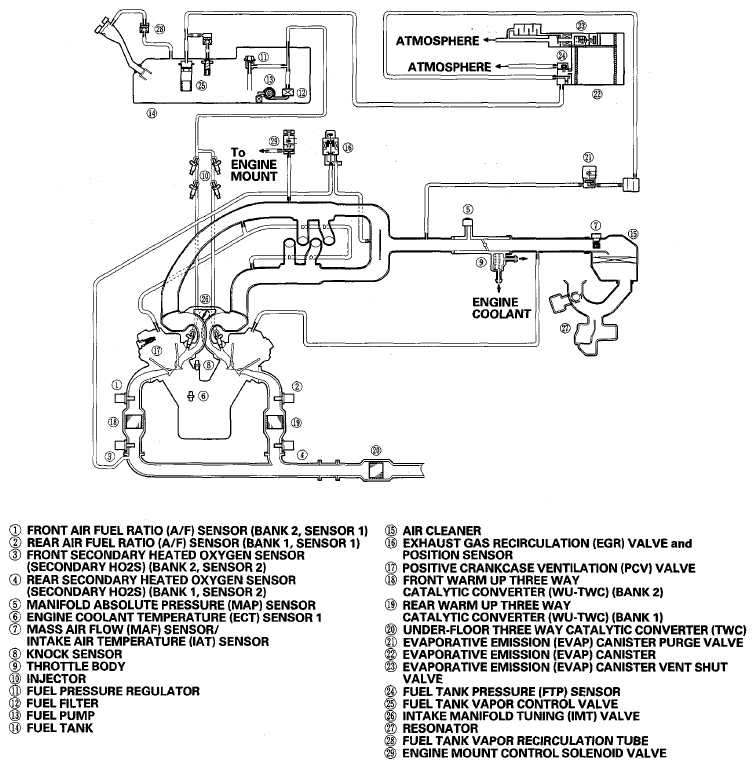

Fig 1: Fuel And Emissions Systems Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
