EVAP Canister Vent Shut Valve

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

The EVAP canister vent shut valve is on the EVAP canister.

The EVAP canister vent shut valve controls the venting of the EVAP canister.

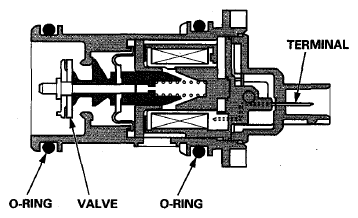

Fig 1: Identifying EVAP Canister Vent Shut Valve Terminal And O-Ring
G08052484Courtesy of AMERICAN HONDA MOTOR CO., INC.
