Clear/Learn Procedure (with the HDS)

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

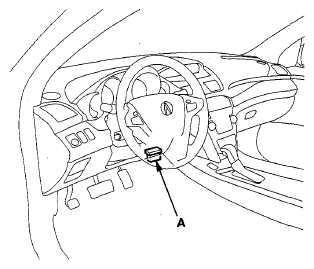

Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

Fig 1: Identifying Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II).
Make sure the HDS communicates with the PCM and other vehicle systems. If it doesn't, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
Select CRANK PATTERN in the ADJUSTMENT MENU with the HDS.
Select CRANK PATTERN CLEAR, and clear the CKP pattern.
Select CRANK PATTERN LEARNING with the HDS, and follow the screen prompts.
